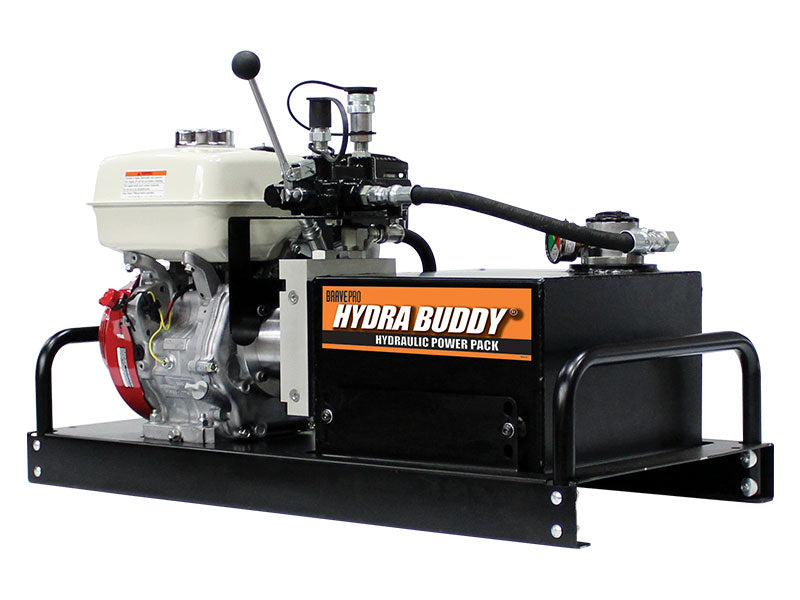

BravePro 2000psi Remote Hydra Buddy w/ Honda GX270 (HBHR280GX)

BravePro

  • $2,699.99



FREE SHIPPING!

This unit qualifies for free shipping anywhere in the continental United States.

Warranty

  • 2 Year Consumer / 2 Year Limited Commercial
  • 3 Year Engine

Literature



Remote units come standard with a control valve and quick disconnect couplings. They are powered by Honda GX commercial engines and are ideal for job sites where no power or air is accessible. They are compatible for use with single or double-acting cylinders and are also fork lift accessible.

*Brave and Brave Pro hydraulic power packs are not intended to be plumbed into a closed center hydraulic system

FEATURES

  • Comes standard with control valve and quick disconnect couplings

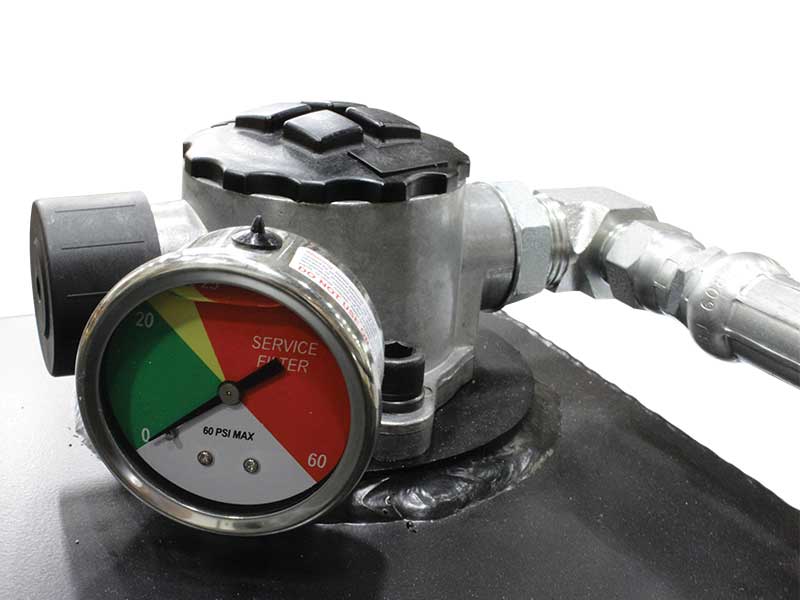

  • Zinga in-tank hydraulic filter with indicator
  • System relief valve
  • Compatible for use with single or double-acting cylinders

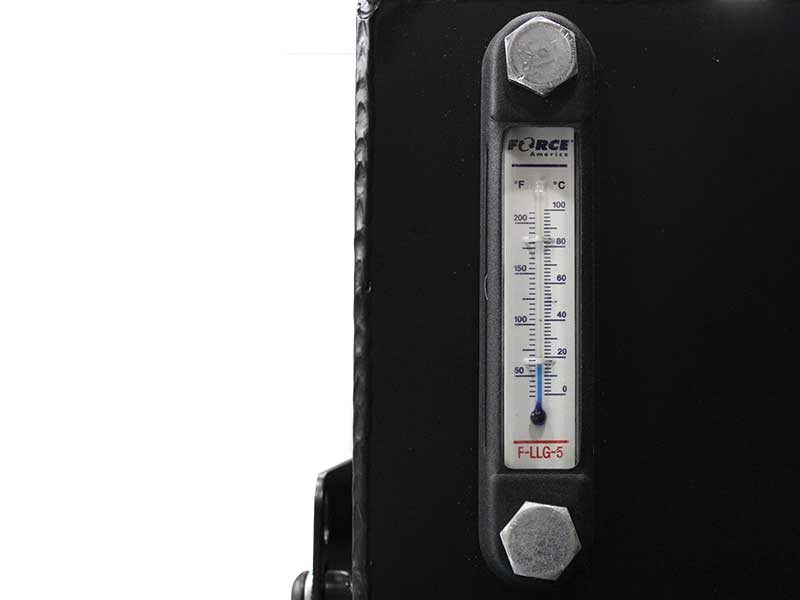

  • Large hydraulic oil tank with sight / temperature gauge

SPECIFICATIONS

Engine Honda GX270
Start Recoil
Engine CC 270cc
Flow 5.5 GPM
Pump Displacement .36 CIR
Pump Ports Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb
Pump Rotation Direction Clockwise
Hydraulic Tank Volume
(Nominal, Actual, Useable)
8, 7.3, 5.4
Hydraulic Tank Material 12 Gauge Steel
Hydraulic Tank Drain Port 1/2" NPT
Hydraulic Valve PSI 2,000 PSI
Hydraulic Valve Type 3-Position, 4-Way Spring to Center Direction Control Valve with Integral Adjustable Main Relief Valve
Hydraulic Valve Inlet 12 ORB Plumbed to Reservoir
Hydraulic Valve Outlet 8 Mail JIC Adapter Installed
Weight (Dry) 155 lbs.
Dimensions
(LxWxH)
38.25" x 19" x 20"



LIFT GATE DELIVERY

This item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above.



SOME ASSEMBLY REQUIRED.

If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
