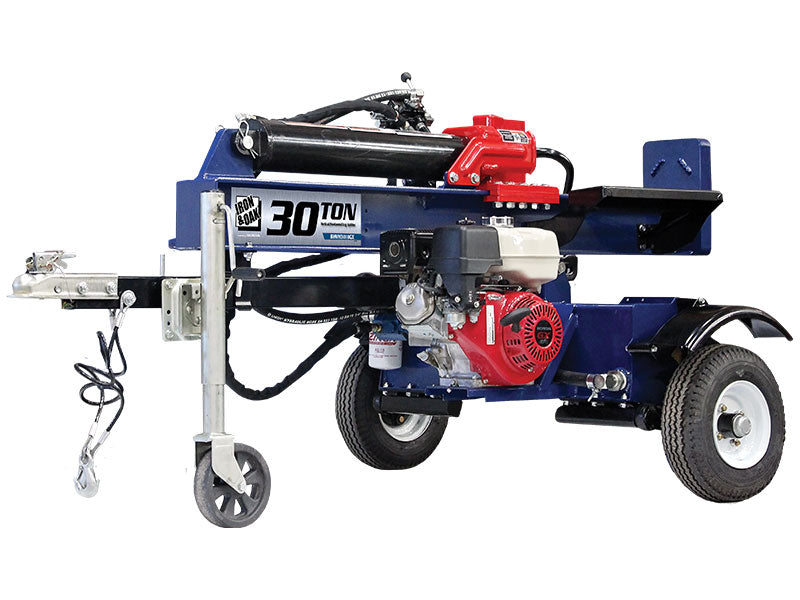

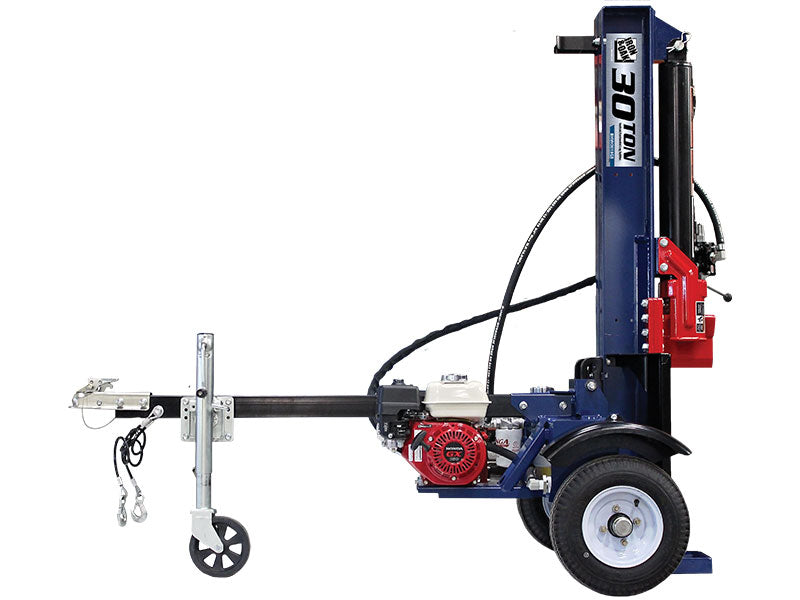

Iron & Oak 30 Ton Vertical / Horizontal Log Splitter (BHVH3018GX)

Iron & Oak

  • $3,299.99



Free Shipping!

This unit qualifies for free shipping anywhere in the continental United States.

Warranty

  • 2 Year Consumer / 2 Year Limited Commercial
  • 3 Year Engine

Literature







Features

  • Auto latch system for safe towing
  • Service friendly design for checking hydraulic fluid

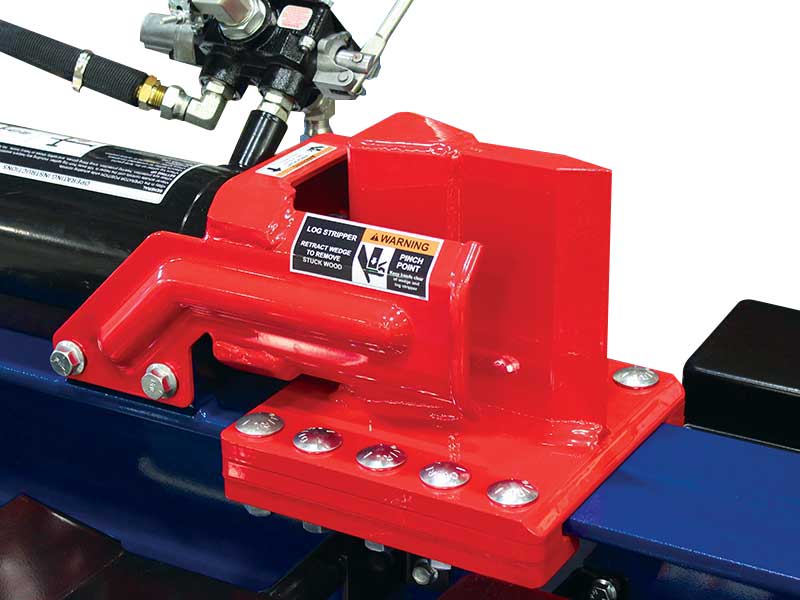

  • Heavy-duty wedge features five bolts per side
  • Heavy-duty log cradle, fenders and engine mount
  • 4-stage hydraulic filtration system
  • Heavy-duty crank down wheel jack for easy moving
  • Halite commercial cylinder seals for consistent pressure
  • Long lasting powder coat finish
  • Heavy-duty 4 bolt trailer hubs for towing
  • Offset valve for better operator positions
  • Tow cables included
  • 2" hitch coupler
  • Heavy-duty 2 x 3 box tube tongue

Specifications

Cylinder 4.5" X 24" clevis type, 1.75" rod
Valve 3 position with auto return
Pump 16 GPM HI-LO 2 Stage
Hydraulic Tank 9.0 Gallons System Total
Hydraulic Capacity 10.5 Gallons System Total
Engine Honda GX270
Displacement 270cc
Bed Height 32"
Beam 6" Heavy-Duty Formed Steel
Tires 4.8" x 8.0" Highway Rated
Log Opening 25"
Cycle Time Approx. 12 Seconds Complete Cycle
Splitting Force Approx. 30 tons
Weight 705 lbs



LIFT GATE DELIVERY

This item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above.



SOME ASSEMBLY REQUIRED.

If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
