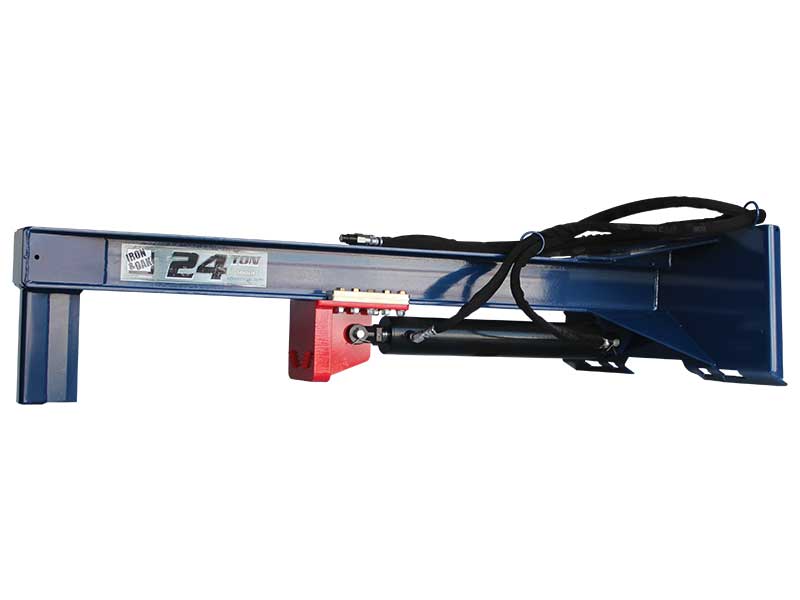

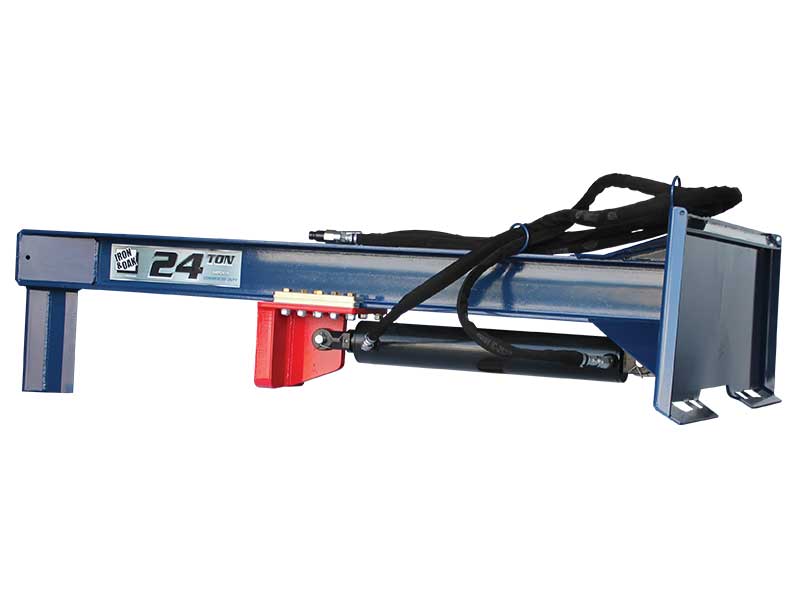

Iron & Oak 24 Ton Skid Steer Log Splitter (SMH2419)
FREE SHIPPING!This unit qualifies for free shipping anywhere in the continental United States. |
WARRANTY
|
Literature |
The SMH2419 skid steer log splitter offers up to 24 tons of splitting force depending on the skid’s hydraulic pressure. The industrial-grade I-beam allows the unit to be rated for fully-loaded, continuous use. Featuring a 12-in. wedge, the horizontal log splitter can split logs up to 25 in. long and 24 in. in diameter. The machine is operated from the cab of the user’s skid steer and can be quickly and securely attached using the standard skid-steer plate.
FEATURES
- Operated 100% from the cab of your skid steer
- Splits from the horizontal position

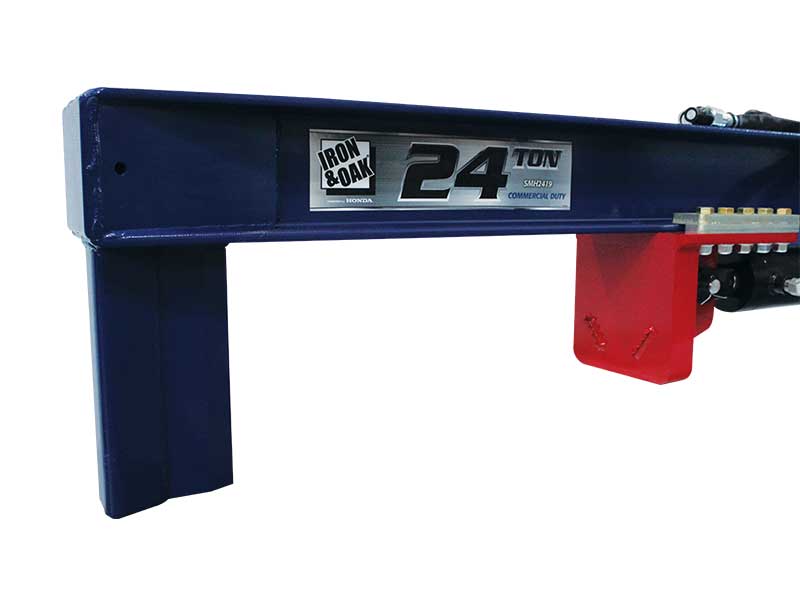

- Durable, long-lasting industrial-grade I-beam
- Rated for fully loaded continuous use

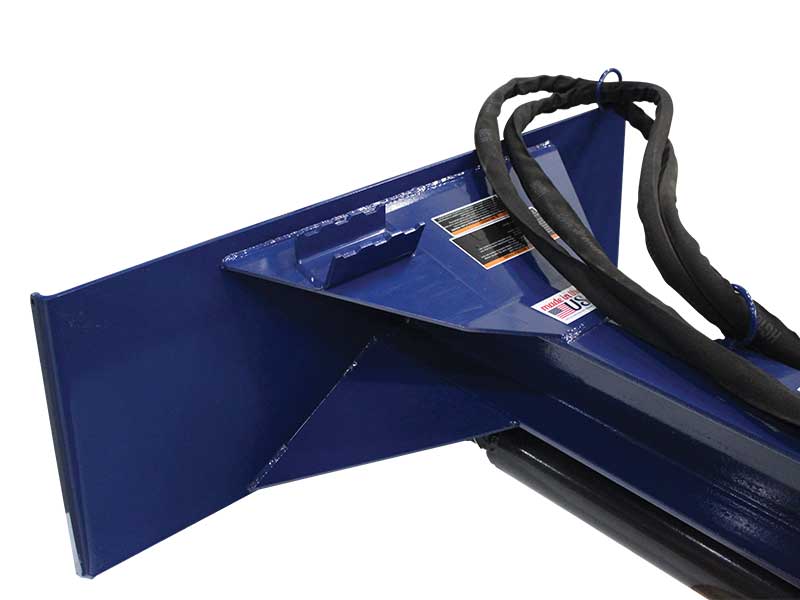

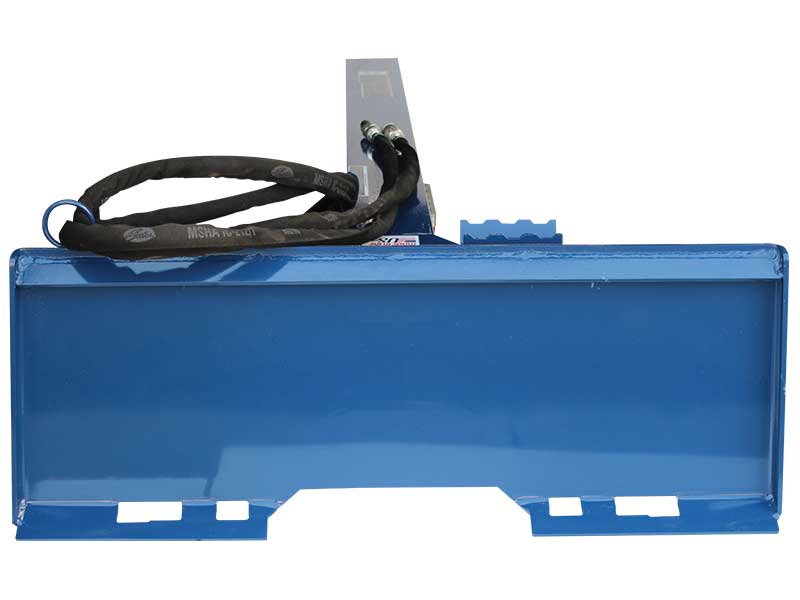

- Quick attach skid steer plate
- Welded safety step
- Long lasting powder coat finish
*Up to 24 Tons, Depending on Skid Steer
SPECIFICATIONS
| Splitting Force | Approx. 24 tons* |
| Max Pressure | 3,500 psi |
| Hydraulic Cylinder Bore | 4" |
| Hydraulic Cylinder Stroke | 24" |
| Max Log Diameter | 24" |
| Max Log Length | 25" |
| Hydraulic Fluid Type | Depending on Skid Steer |
| Hydraulic Oil Capacity | Depending on Skid Steer |
| Dimensions | 83"L x 49"W x 24"H |
| Weight | 500 lbs |
*Up to 24 Tons, Depending on Skid Steer
LIFT GATE DELIVERYThis item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above. |
Some Assembly Required.
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
