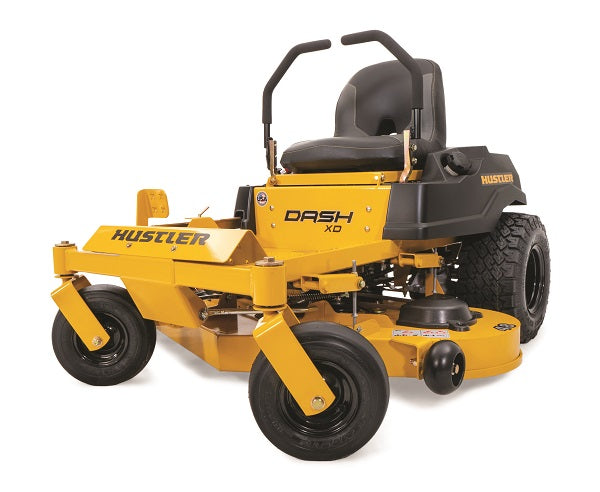

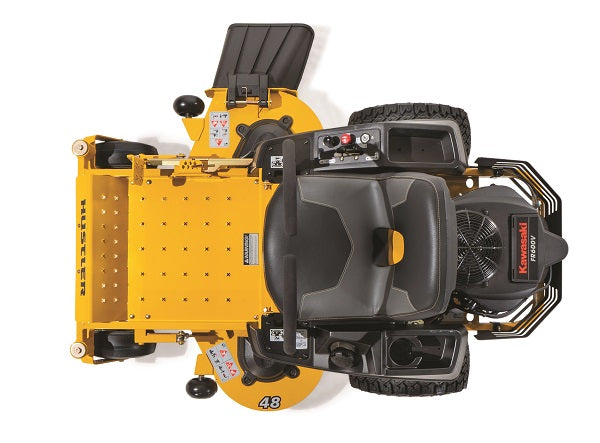

Hustler Dash XD 48" Residential Zero-Turn Mower w/ Kawasaki FR600 (18HP)
| All Hustler Lawn Mowers |
Warranty
|
Literature |
Hustler ingenuity in a small yard zero-turn.

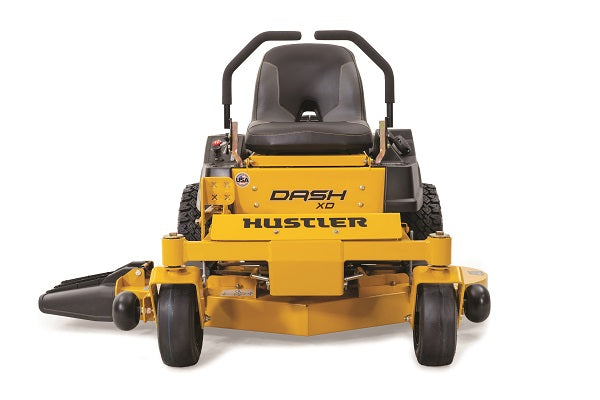

The Dash® XD is Hustler Turf's most compact residential mower designed for smaller property owners. The smaller design makes it ideal for garage storage and fitting through tight spaces like fence gates. One piece fabricated frame and welded steel deck come standard along with bolstered seat, Kawasaki® Power & BigBite™ tires.
-
Welded Fabricated Steel Deck: Durable 11 ga. welded fabricated steel deck adds durability & extends mower’s life. (compare to other brand’s cheap stamped decks).
- Bolstered Seat: Bolstered with built-in lumbar support.
- Kawasaki Power: V-Twin Kawasaki® engine
-
Fabricated Steel Frame: 1” x 2” steel frame making it tough and durable.

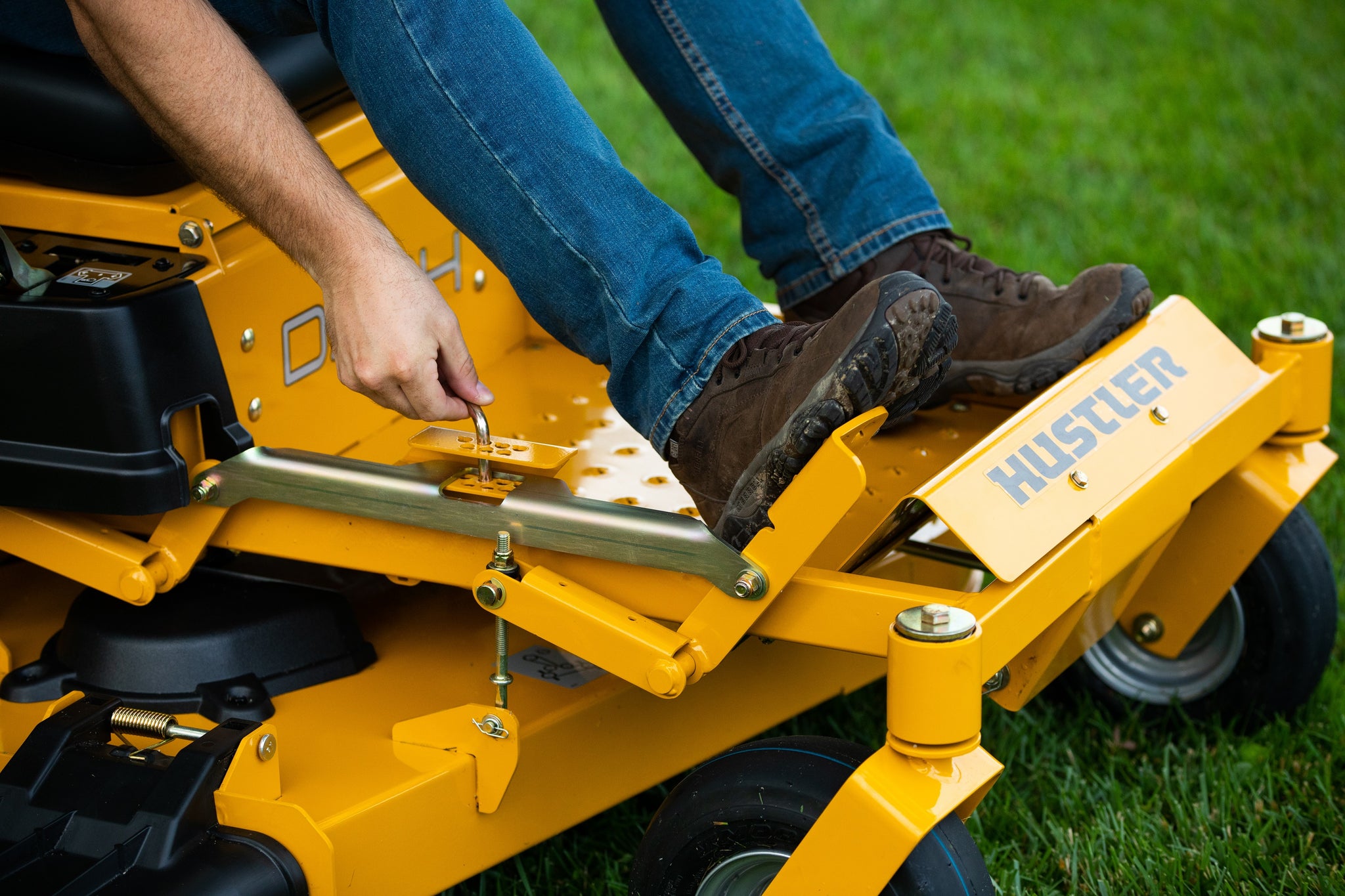

- Foot Operated Deck Lift: Easily adjust the deck height between 1.5”- 4.5”.

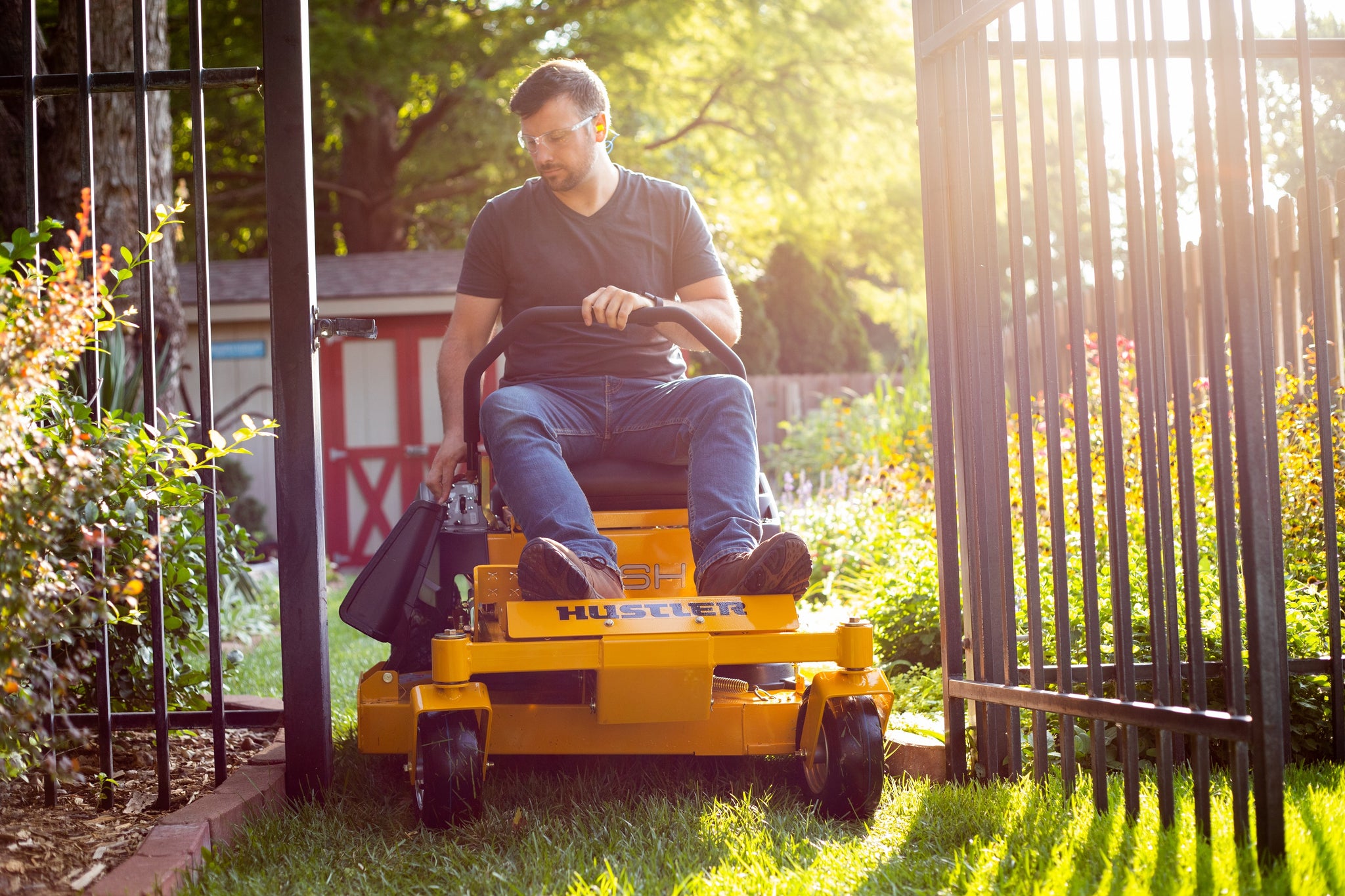

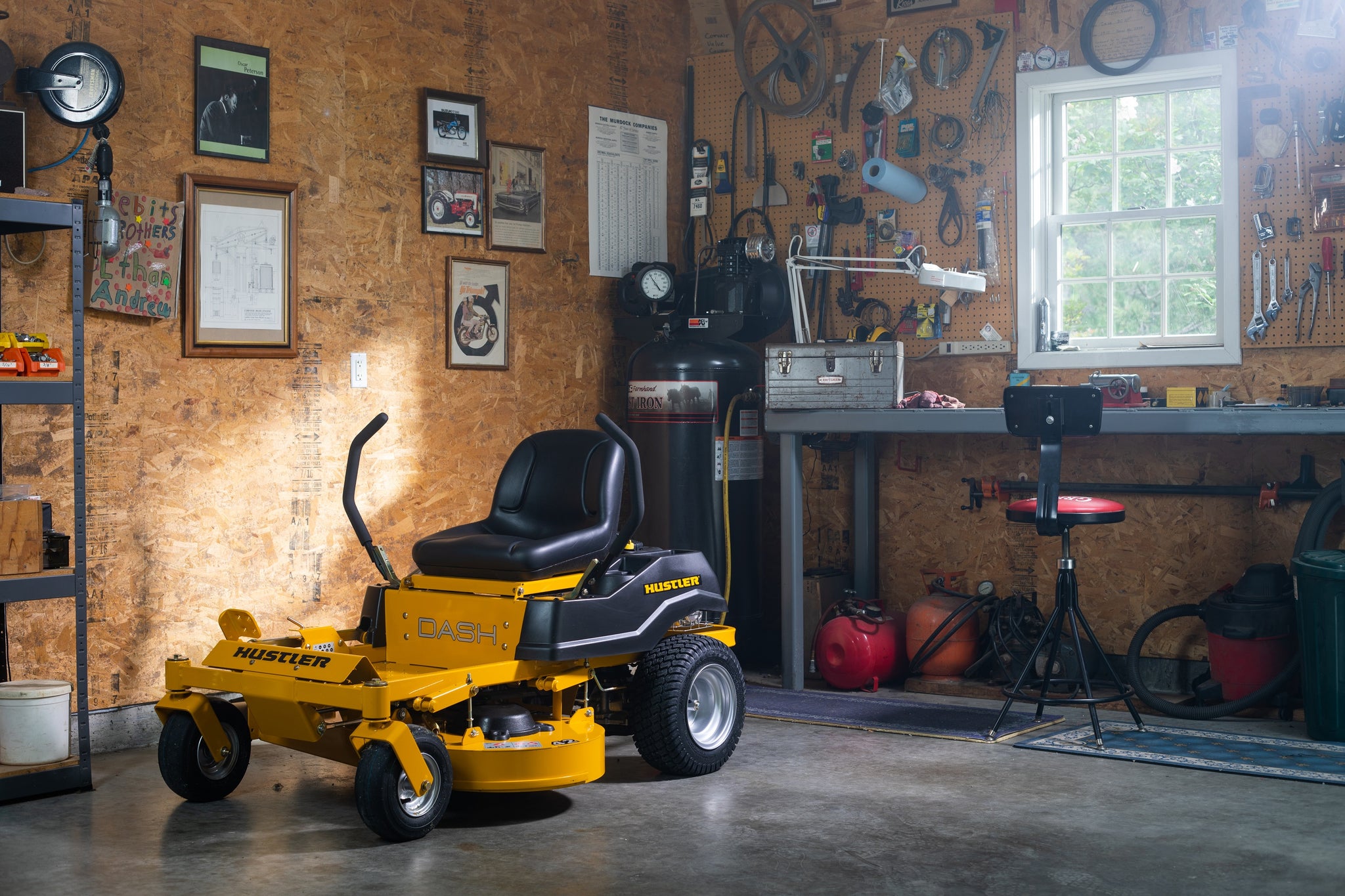

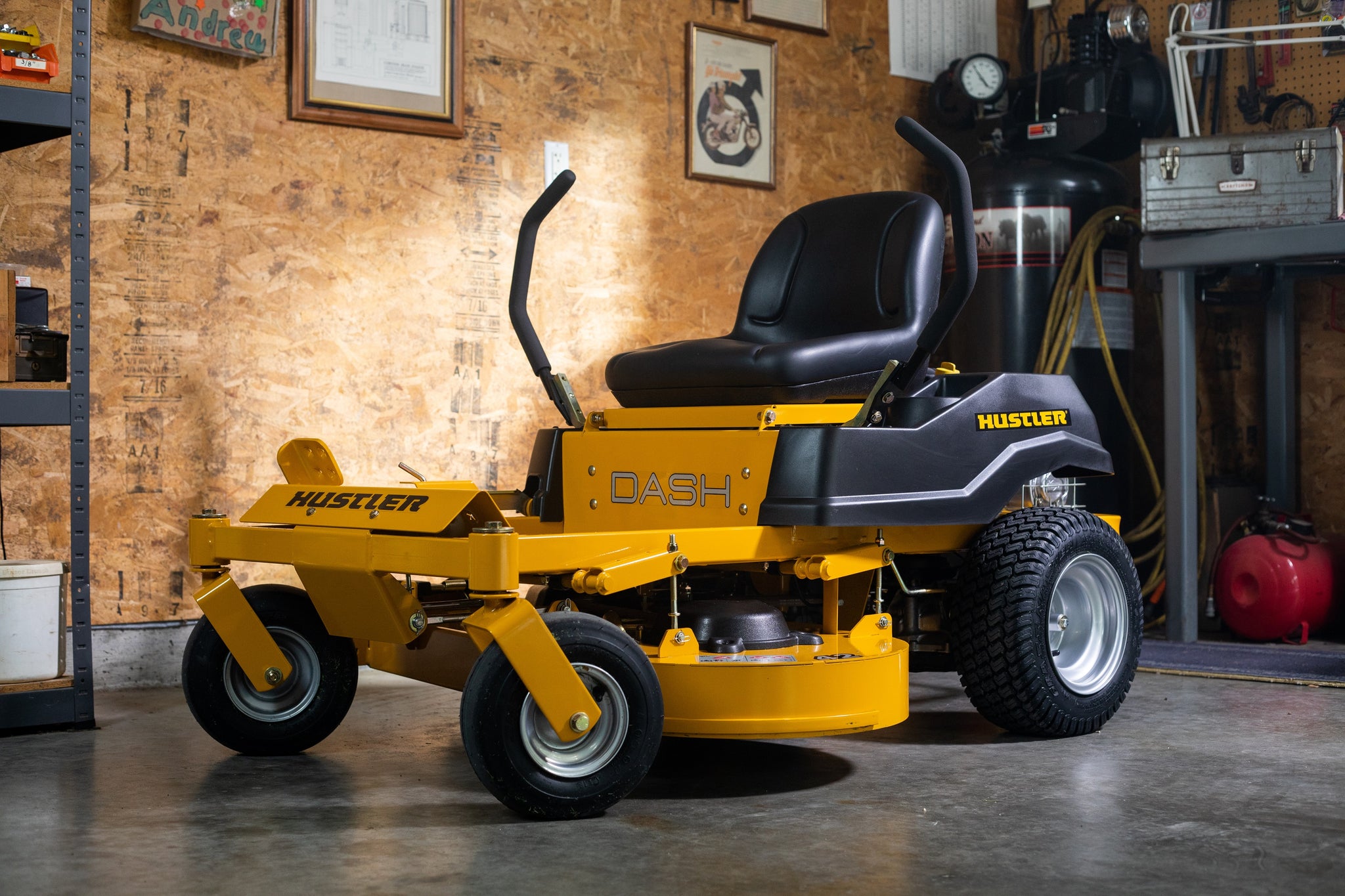

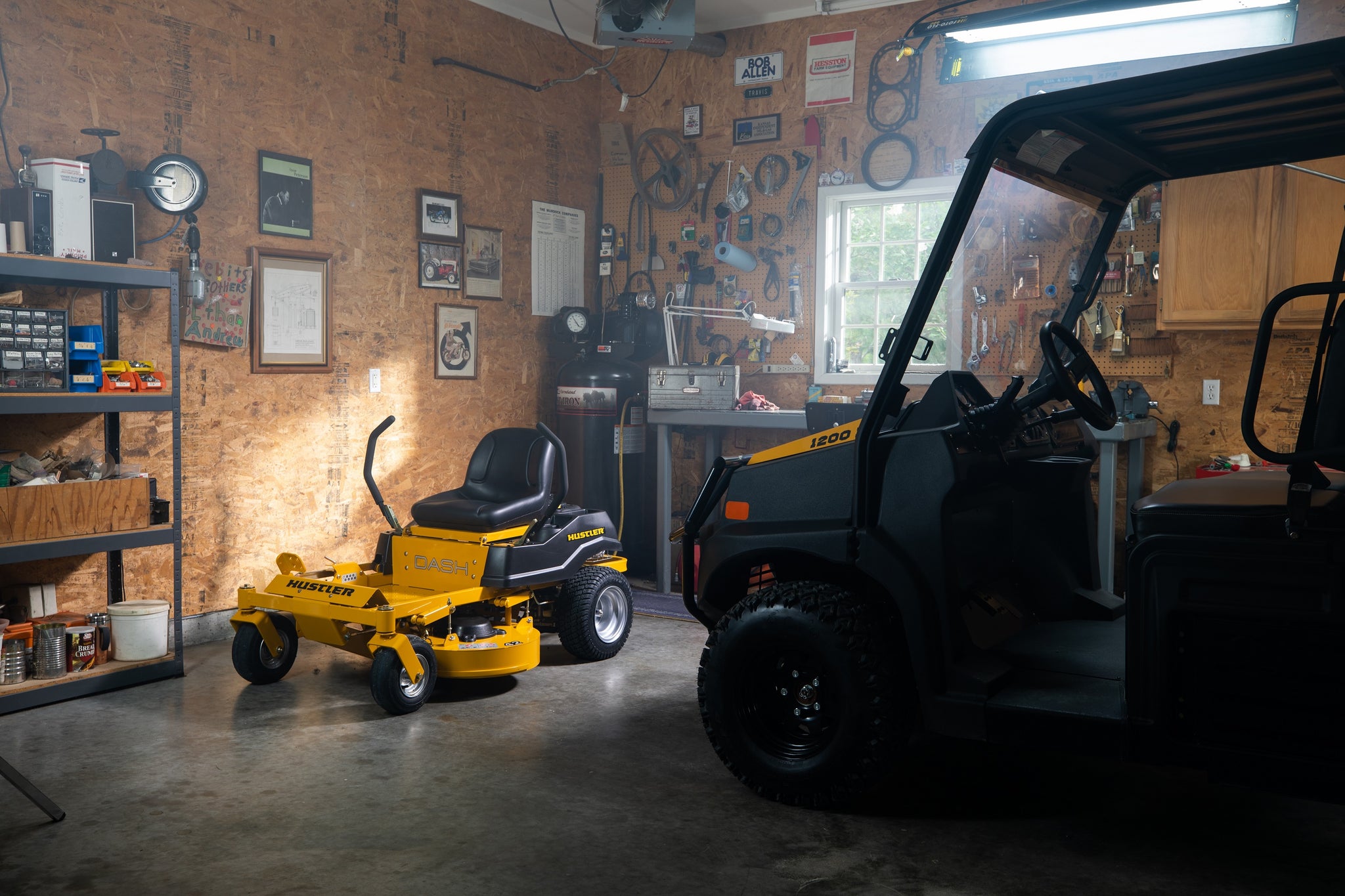

- Compact Size: Easily fits through most gates to tackle fenced-in back yards. The small footprint makes it ideal for storing in the garage.

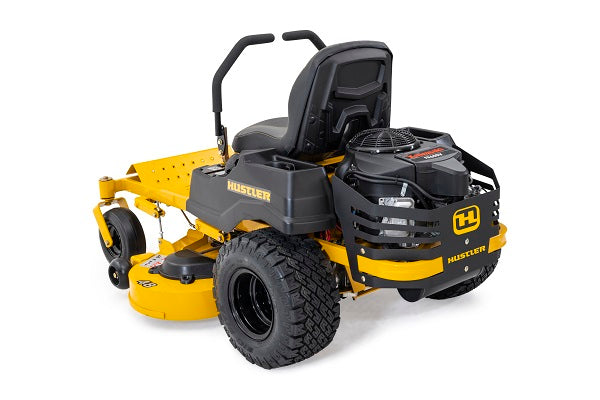

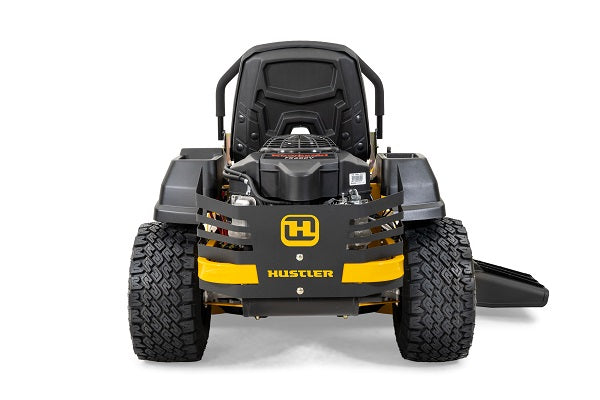

- Engine Guard: Standard on all Dash XD models.
- 18" BigBite™ Rear Tires: Hustler worked directly with the tire manufacturer on this design.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Dash XD Accessories |
|
| Side Grass Bagger | 939298 |
| Dump From Seat Catcher Adapter | 125223 |
| Mulch Kit 48" | 126912 |
|
Stripe Kit 48" |
126828 |
|
Arm Rest Kit |
608152 |
| Light Kit | 124643 |
| Steering Lever Extension Kit | 122760 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki |
| Engine Horsepower | 18 |
| Displacement | 603cc |
| Cooling | Air Cooled |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear ZT1800 |
| Fuel Capacity | 2 gal. |
| Ground Speed (Fwd) | Up to 6 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 48" |
| Cutting Height | 1.5" to 4.5" |
| Deck Depth | 4.1" |
| Deck Lift | Foot Operated |
| Number of Blades | 2 |
| Blade Length | 16.50" |
| Blade Tip Speed | 17,200 |
| Spindles | Aluminum w/ 3/4" shaft and triple protection sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 11 gauge steel
|
| Spindle Mounts | Reinforced 14 gauge steel |
| Impact Trim Area | 1/4" x 3/4" steel bar |
Construction |
|
| Frame | 1" X 2" steel tubing |
| Front Axle | Fabricated with sealed ball bearings |
| Front Caster Wheel |
Sealed ball bearings
|
| Front Caster Fork | Fabricated 1/4" steel |
General |
|
| Seat | Premium bolstered seat with built-in lumbar support |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
11 X 4 |
| Drive Tire (Inches) | 18 X 8.5 - 8 BigBite™ |
| Weight (lbs) | 490 |
| Height (Inches) | 40 |
| Length (Inches) | 65.4 |
| Width w/ Chute Up (Inches) | 48.25 |
| Tire-to-Tire Width (Inches) | 41 |
| Productivity (Acres Per Hour) | 2.33 |
Warranty |
|
| Warranty | 2 Year/200 Hour (2nd year parts only) |
Dimensions with Catcher |
|
| Catcher Style | Side Catcher |
| Powered / Non-powered | Non-powered |
| Catcher Capacity | 2 bushel |
If you have any questions about this Hustler Dash XD 48" zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
