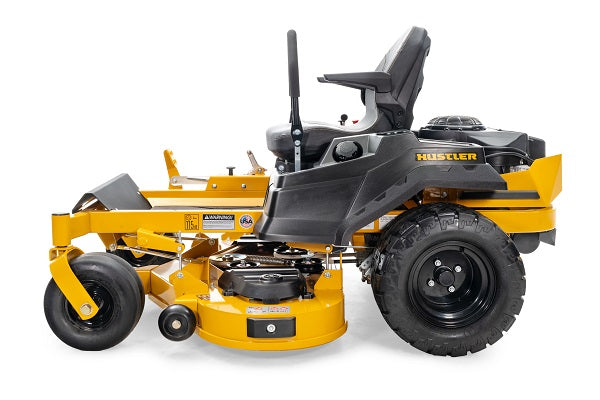

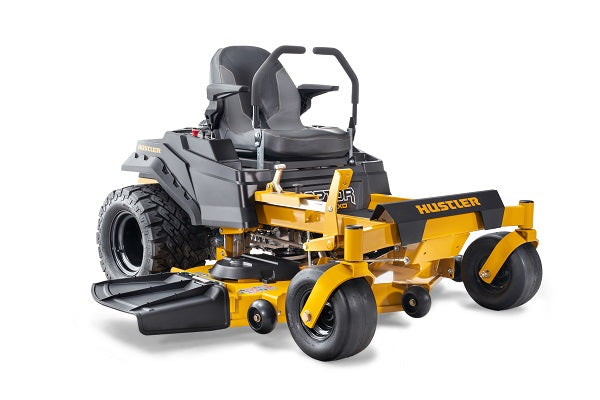

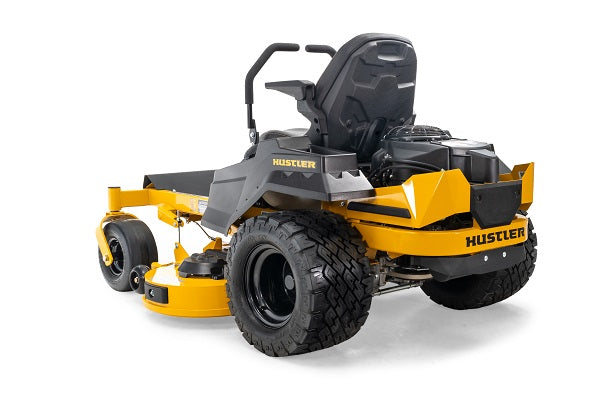

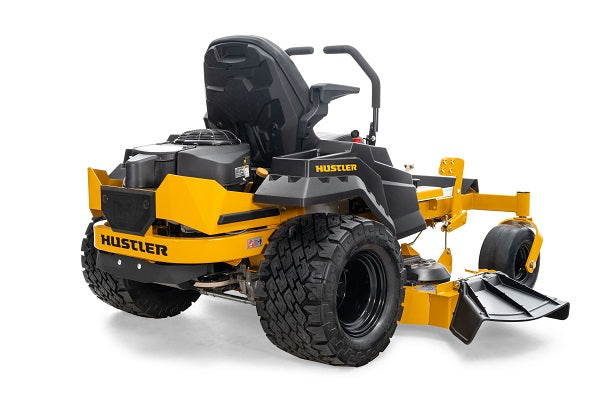

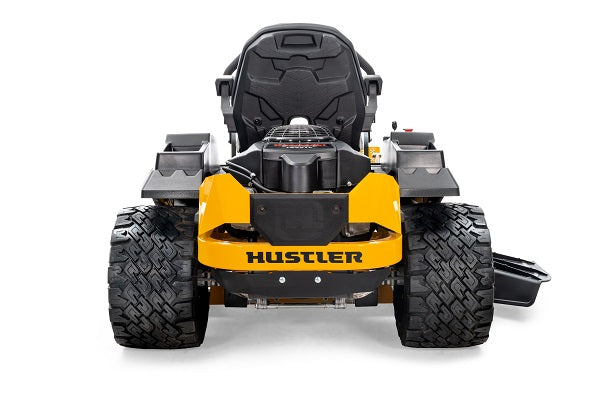

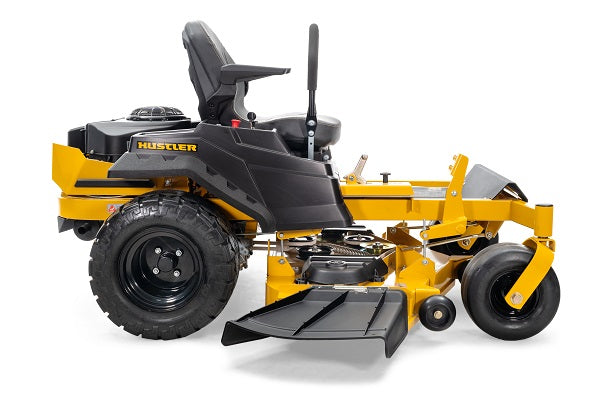

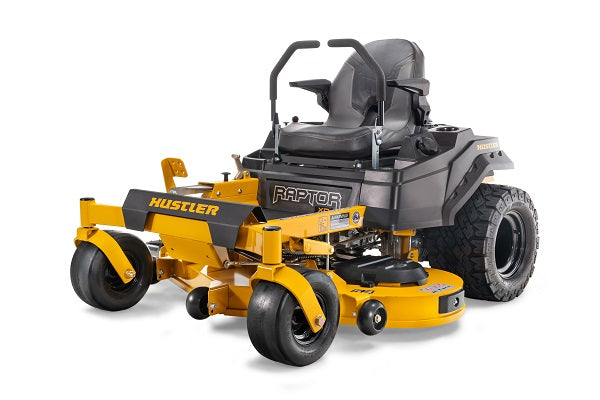

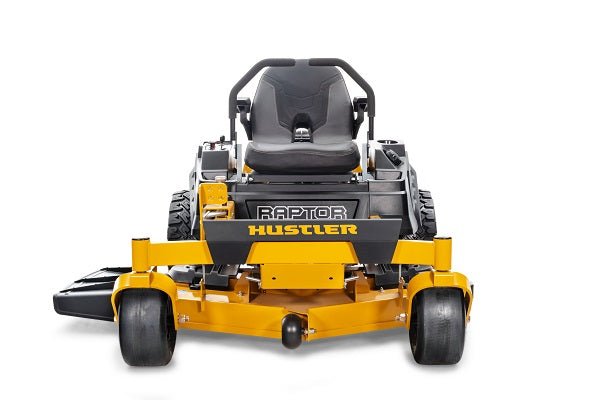

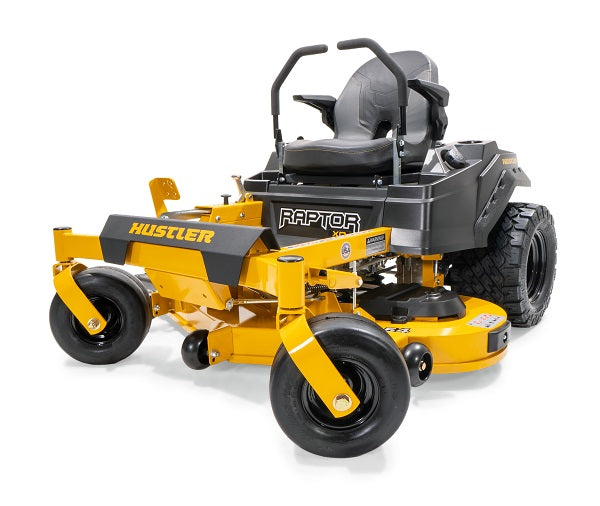

  • Hustler Raptor XD 42" Residential Zero-Turn Mower w/ Kawasaki FR651 (21.5HP)

    Hustler Turf Equipment

    • $5,099.00
    • Save $150



    All Hustler Lawn Mowers


    Warranty

    • 3 Year Limited, 300-hour residential
    • 3 Year Limited Engine

    Literature


    Makes Small Work Out of Big Jobs

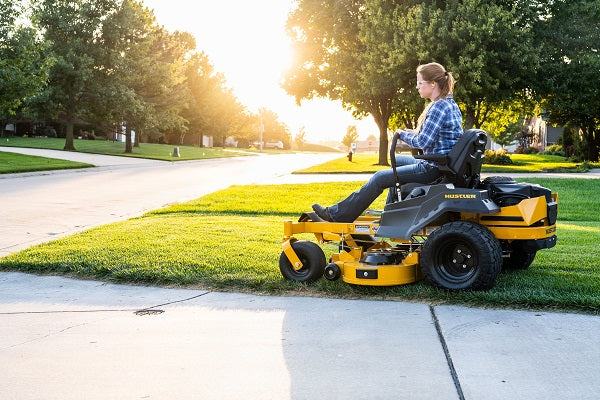

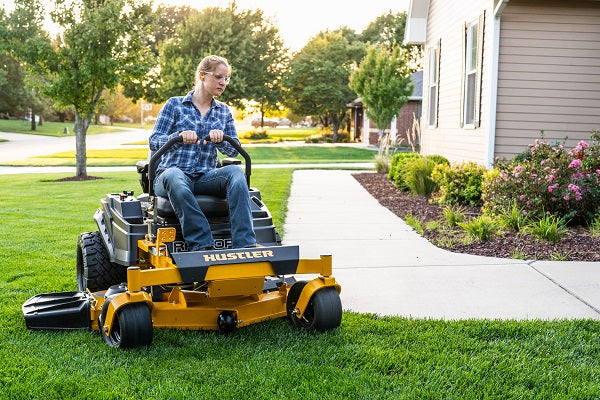

    The Hustler Raptor XD 42" is the ideal zero-turn for homeowners with one to three acres of property. The up to 24hp Kawasaki horsepower and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, Hustler spent decades and thousands of hours perfecting their durable fabricated decks that provide a professional-grade cut quality. Raptor XD’s are backed by an industry-leading 3yr / 300hr warranty.

    • Welded Steel Deck: Welded fabricated steel deck adds durability & extends the mower’s life. (compared to stamped decks on other brands used to cut costs)
    • Wider Stance: Additional operator platform width provides more room and comfort for the operator
    • SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
    • Premium Seat: Premium bolstered high-back seat with armrests and built-in lumbar support.
    • Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
    • Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
    • Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers found on other brands.
    • Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.

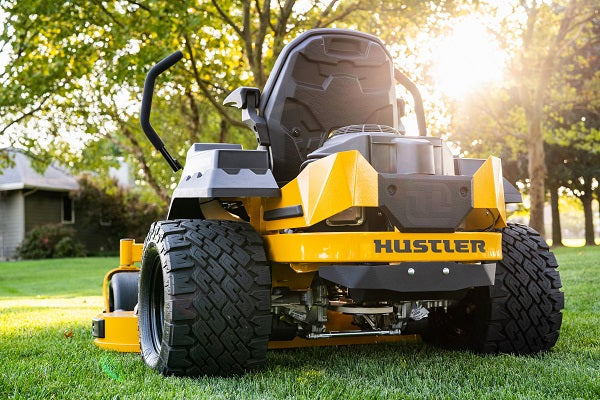

    • Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
    • Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.

    Hustler Turf Accessory Compatibility Chart

    Hustler Raptor XD Accessories

    2 Bag Catcher 940817
    Mulching Kit 42" 126533
    Flex Forks 42" 608313
    USB Kit 127702
    Light Kit 127057
    Stripe Kit 42" 127074
    Hitch Kit 127156
    Steering Lever Extension Kit 122760

    __________________________________________________________________

    Specifications

    Engine

    Engine Manufacturer Kawasaki FR651
    Engine Horsepower 21.5
    Displacement 726cc
    Cooling Air Cooled
    Engine Warranty 3 year

    Drive System

    Type Dual Hydrostatic
    Transmission Hydro-Gear ZT2800
    Fuel Capacity 3 gal.
    Ground Speed (Fwd) Up to 7.5 mph
    Parking Brake
    Integrated with steering levers

    Deck

    Cutting Width 42"
    Cutting Height 1.5" to 4.5"
    Deck Depth 4.5"
    Deck Lift Foot Operated
    Number of Blades 2
    Blade Length 20.50"
    Blade Tip Speed 18,000
    Spindles Aluminum w/ 1" shaft and double lip sealed ball bearings
    Deck Engagement Ogura GT1.5
    Deck Material Fabricated 11 gauge steel
    Spindle Mounts Reinforced 7 gauge steel
    Impact Trim Area 3/8" x 1" steel bar

    Construction

    Frame 1.50" X 3" steel tubing
    Front Axle Fabricated with sealed ball bearings
    Front Caster Wheel Sealed ball bearings
    Front Caster Fork Fabricated 3/8" steel

    General

    Seat Premium bolstered high-back seat with armrests and built-in lumbar support
    Cup Holder Yes

    Dimensions

    Front Tire (Inches)
    13 X 5
    Drive Tire (Inches) 20 x 8-10 BigBite™
    Weight (lbs) 616
    Height (Inches) 43.7
    Length (Inches) 69.3
    Width w/ Chute Up (Inches) 45.8
    Tire-to-Tire Width (Inches) 42
    Productivity (Acres Per Hour) 2.55

    Warranty

    Warranty 3 Year/300-hour residential

    Dimensions with Catcher

    Catcher Style 2-bag
    Powered / Non-powered Non-powered
    Catcher Capacity 5.4 bushel
    Mower Length w/ Catcher 91.4
    Mower Width w/ Catcher 56.5

    If you have any questions about this Hustler Raptor XD 42” mower with a Kawasaki FR651 engine, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
