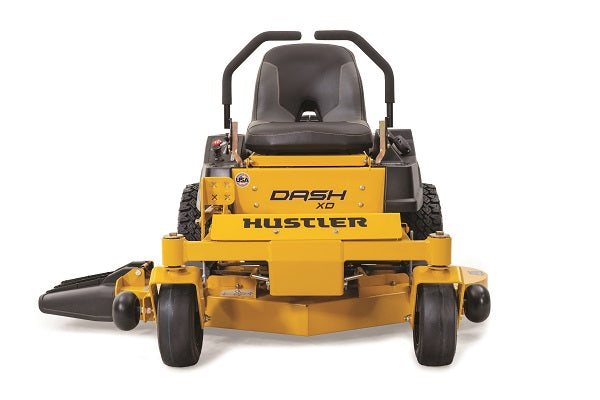

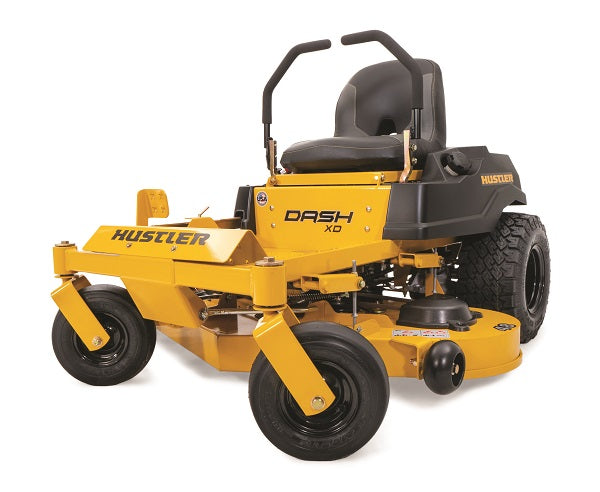

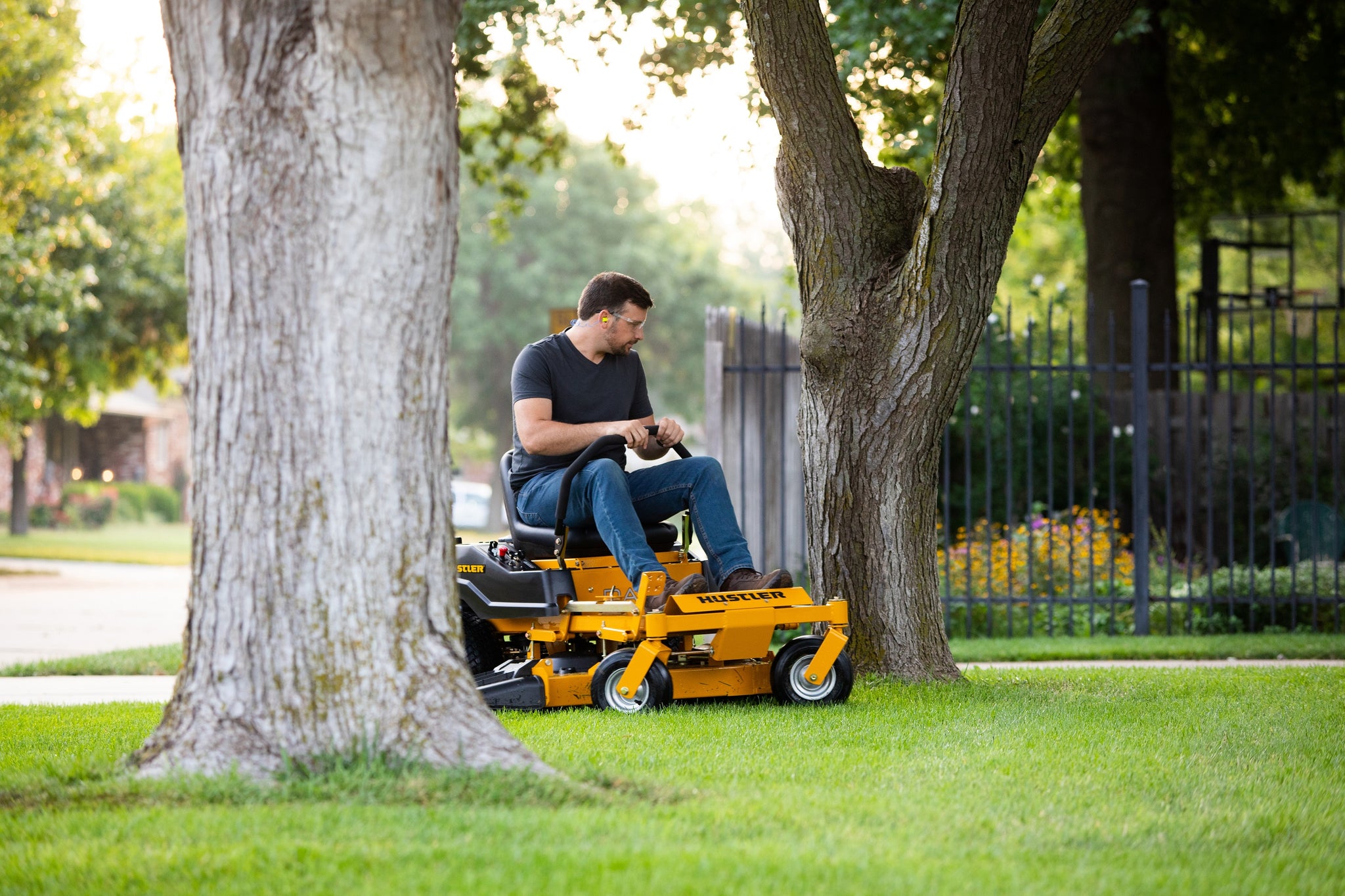

  • Hustler Dash XD 34" Residential Zero-Turn Mower w/ Kawasaki FR541 (15HP)

    Hustler Turf Equipment

    • $3,599.00
    • Save $150

    All Hustler Lawn Mowers


    • 2 Year Limited, 200 Hour (2nd year parts only)
    • 3 Year Limited Engine


    Hustler ingenuity in a small yard zero-turn.

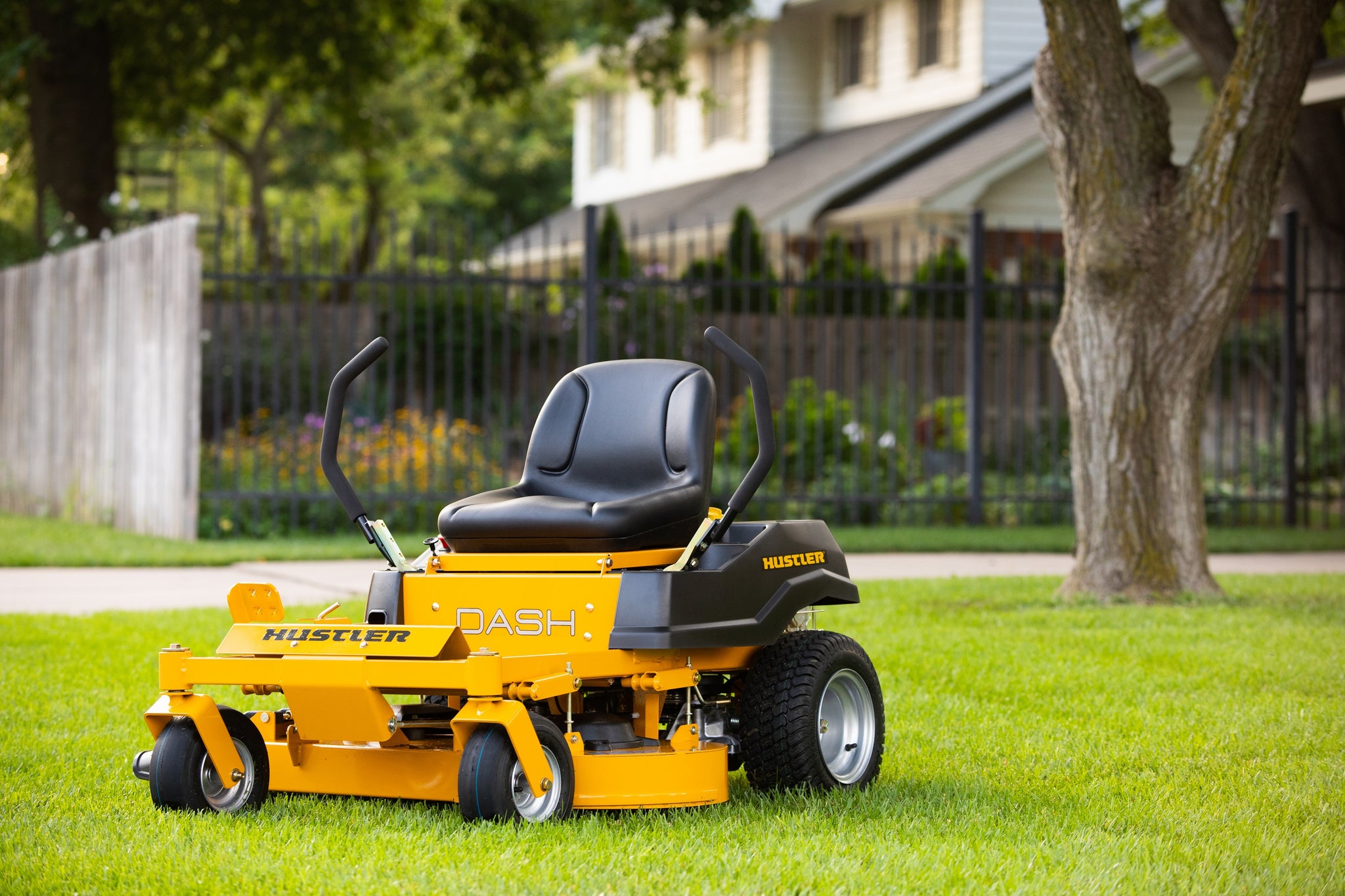

    The Dash® XD is Hustler Turf's most compact residential mower designed for smaller property owners. The smaller design makes it ideal for garage storage and fitting through tight spaces like fence gates. One piece fabricated frame and welded steel deck come standard along with bolstered seat, Kawasaki® Power & BigBite™ tires.

    • Welded Fabricated Steel Deck: Durable 11 ga. welded fabricated steel deck adds durability & extends mower’s life. (compare to other brand’s cheap stamped decks).
    • Bolstered Seat: Bolstered with built-in lumbar support.
    • Kawasaki Power: V-Twin Kawasaki® engine
    • Fabricated Steel Frame: 1” x 2” steel frame making it tough and durable.

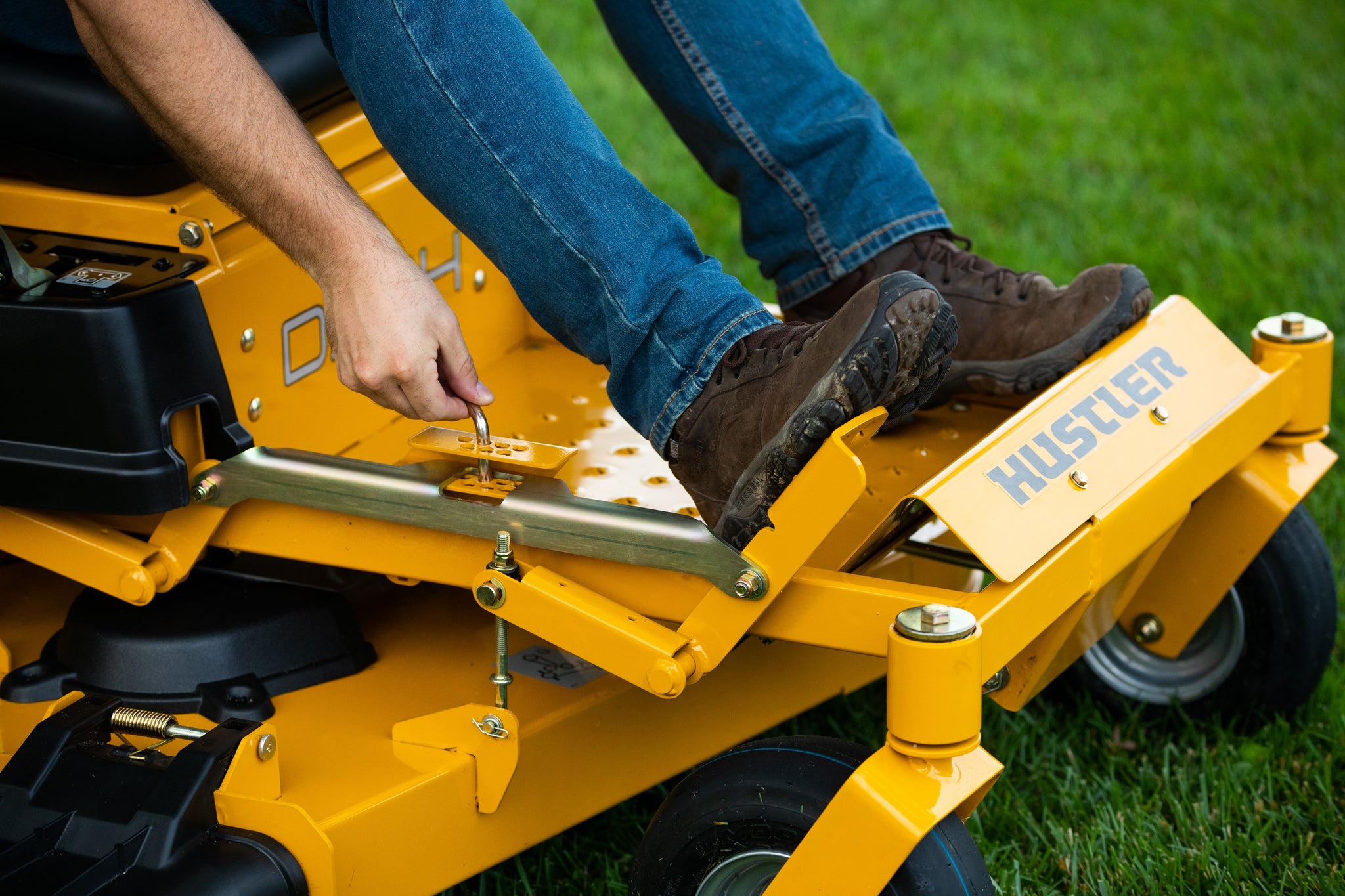

    • Foot Operated Deck Lift: Easily adjust the deck height between 1.5”- 4.5”.

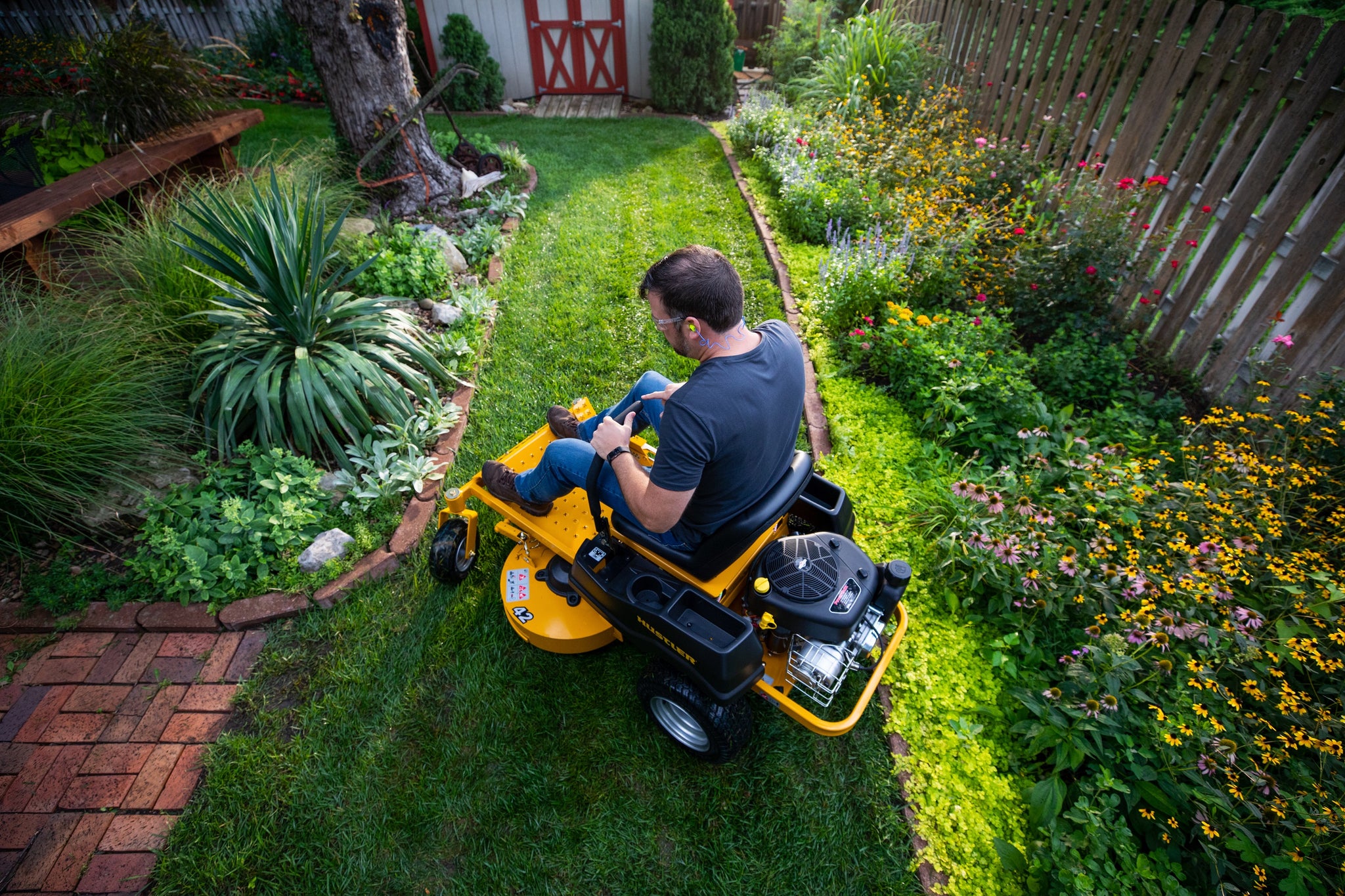

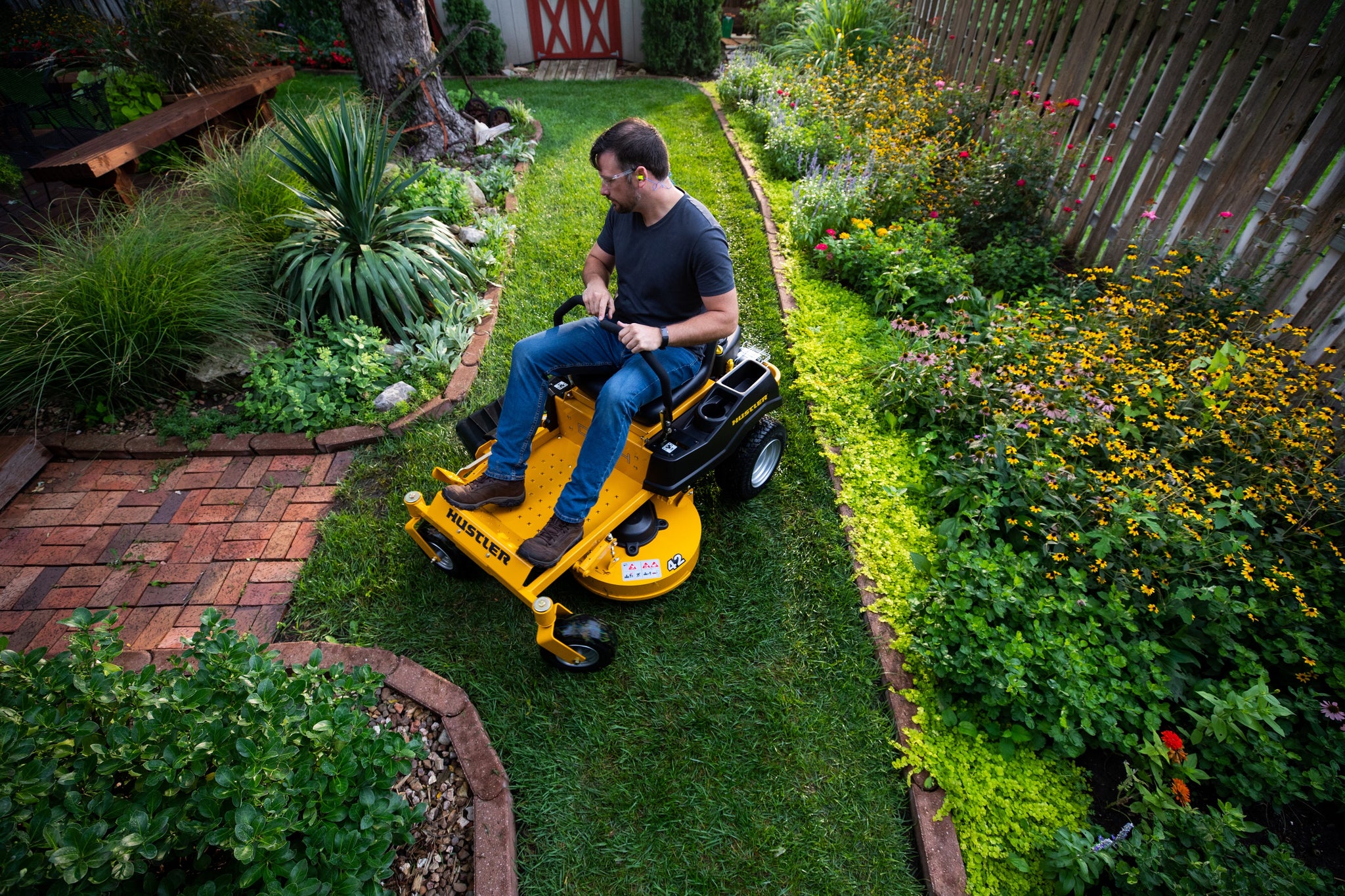

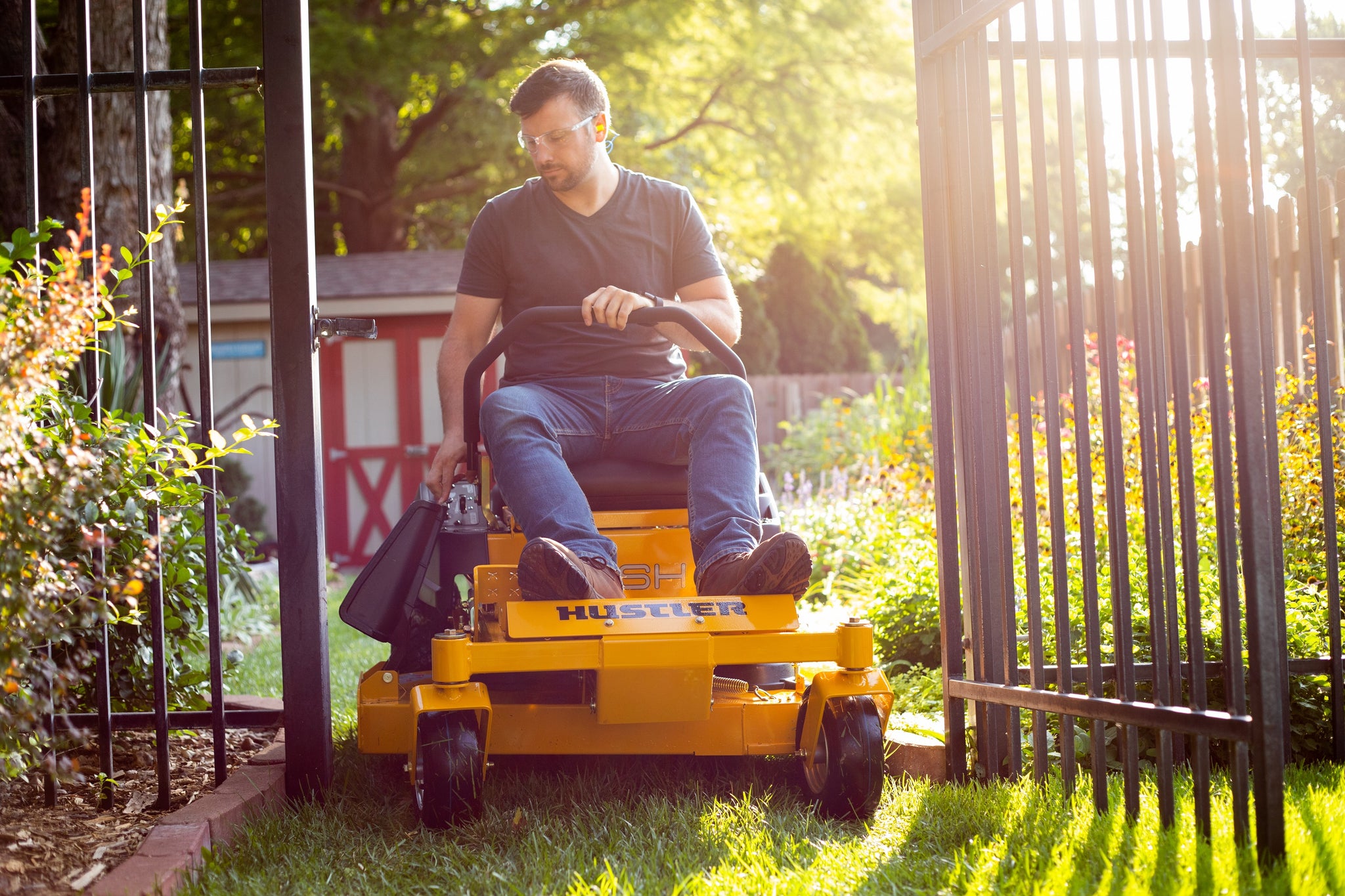

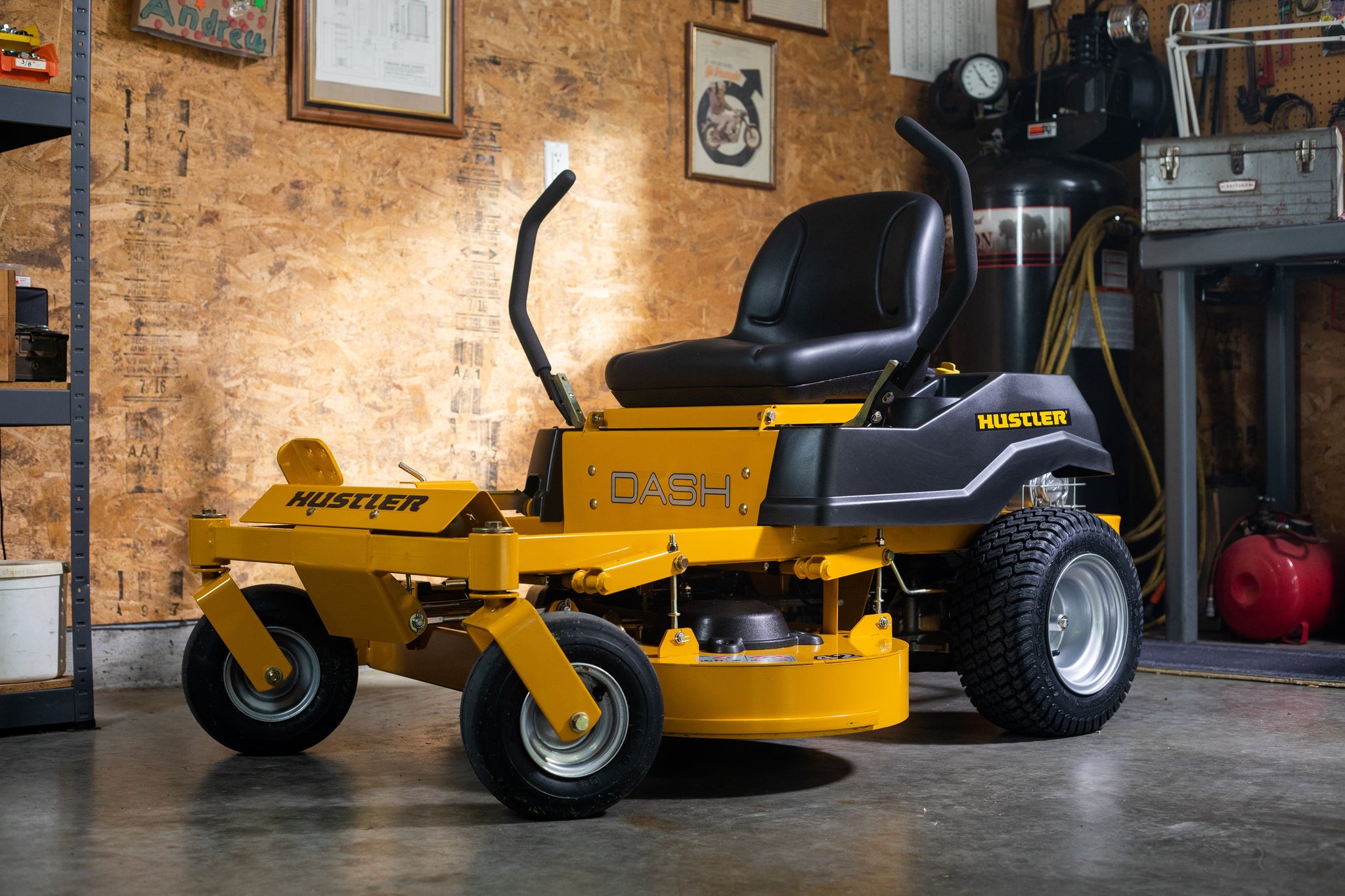

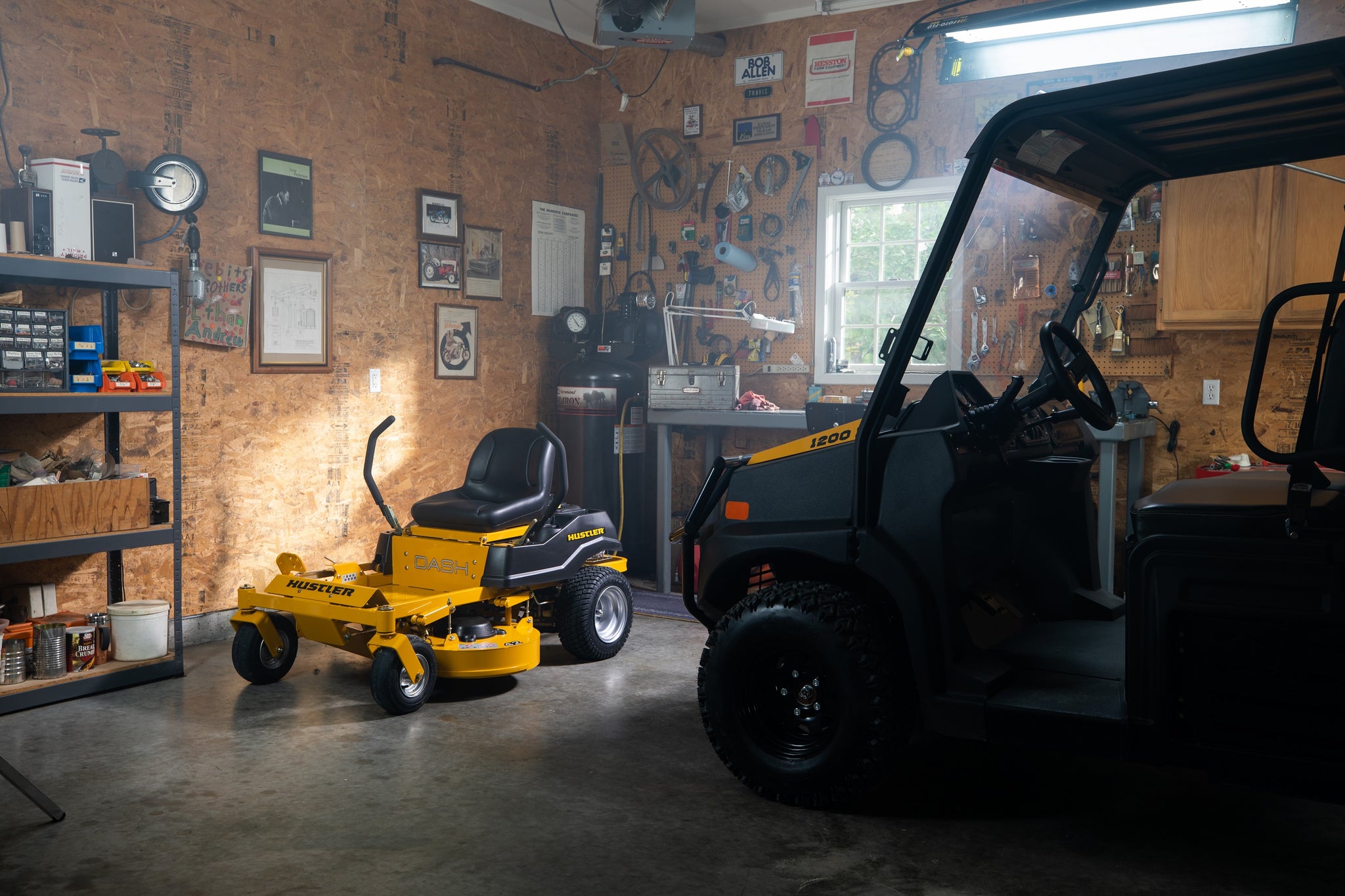

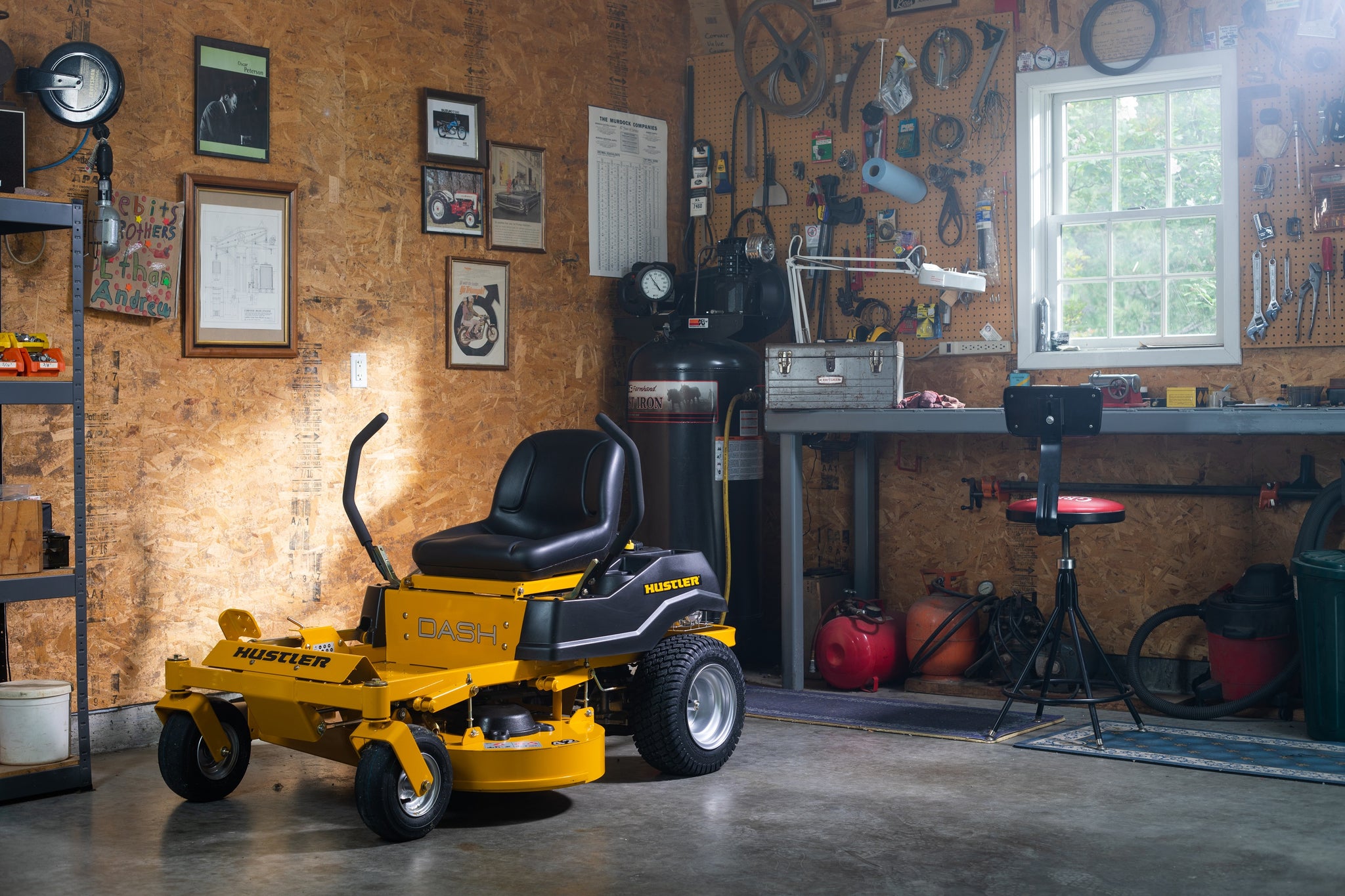

    • Compact Size: Easily fits through most gates to tackle fenced-in back yards. The small footprint makes it ideal for storing in the garage.

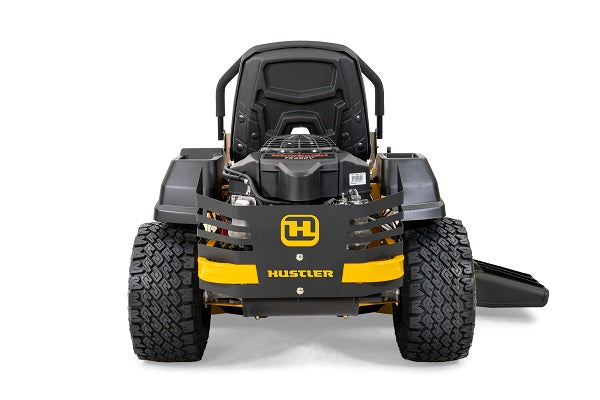

    • Engine Guard: Standard on all Dash XD models.
    • 18" BigBite™ Rear Tires: Hustler worked directly with the tire manufacturer on this design.

    Hustler Turf Accessory Compatibility Chart

    Hustler Dash XD Accessories

    Side Grass Bagger 939298
    Dump From Seat Catcher Adapter 125223
    Mulch Kit 34" 125033
    Stripe Kit 34"
    Arm Rest Kit
    Light Kit 124643
    Steering Lever Extension Kit 122760




    Engine Manufacturer Kawasaki
    Engine Horsepower 15
    Displacement 603cc
    Cooling Air Cooled
    Engine Warranty 3 year

    Drive System

    Type Dual Hydrostatic
    Transmission Hydro-Gear ZT-1800
    Fuel Capacity 2 gal.
    Ground Speed (Fwd) Up to 6 mph
    Parking Brake
    Integrated with steering levers


    Cutting Width 34"
    Cutting Height 1.5" to 4.5"
    Deck Depth 4.1"
    Deck Lift Foot Operated
    Number of Blades 2
    Blade Length 16.75"
    Blade Tip Speed 17,500
    Spindles Aluminum w/ 3/4" shaft and triple protection sealed ball bearings
    Deck Engagement Electric PTO Clutch
    Deck Material
    Fabricated 11 gauge steel
    Spindle Mounts Reinforced 14 gauge steel
    Impact Trim Area 1/4" x 3/4" steel bar


    Frame 1" X 2" steel tubing
    Front Axle Fabricated with sealed ball bearings
    Front Caster Wheel
    Sealed ball bearings
    Front Caster Fork Fabricated 1/4" steel


    Seat Premium bolstered seat with built-in lumbar support
    Cup Holder Yes


    Front Tire (Inches)
    11 X 4
    Drive Tire (Inches) 18 X 6.5 - 8 BigBite™
    Weight (lbs) 455
    Height (Inches) 40
    Length (Inches) 65.4
    Width w/ Chute Up (Inches) 37.5
    Tire-to-Tire Width (Inches) 35
    Productivity (Acres Per Hour) 1.65


    Warranty 2 Year/200 Hour (2nd year parts only)

    Dimensions with Catcher

    Catcher Style Side Catcher
    Powered / Non-powered Non-powered
    Catcher Capacity 2 bushel

    If you have any questions about this Hustler Dash XD 34-inch riding lawn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
