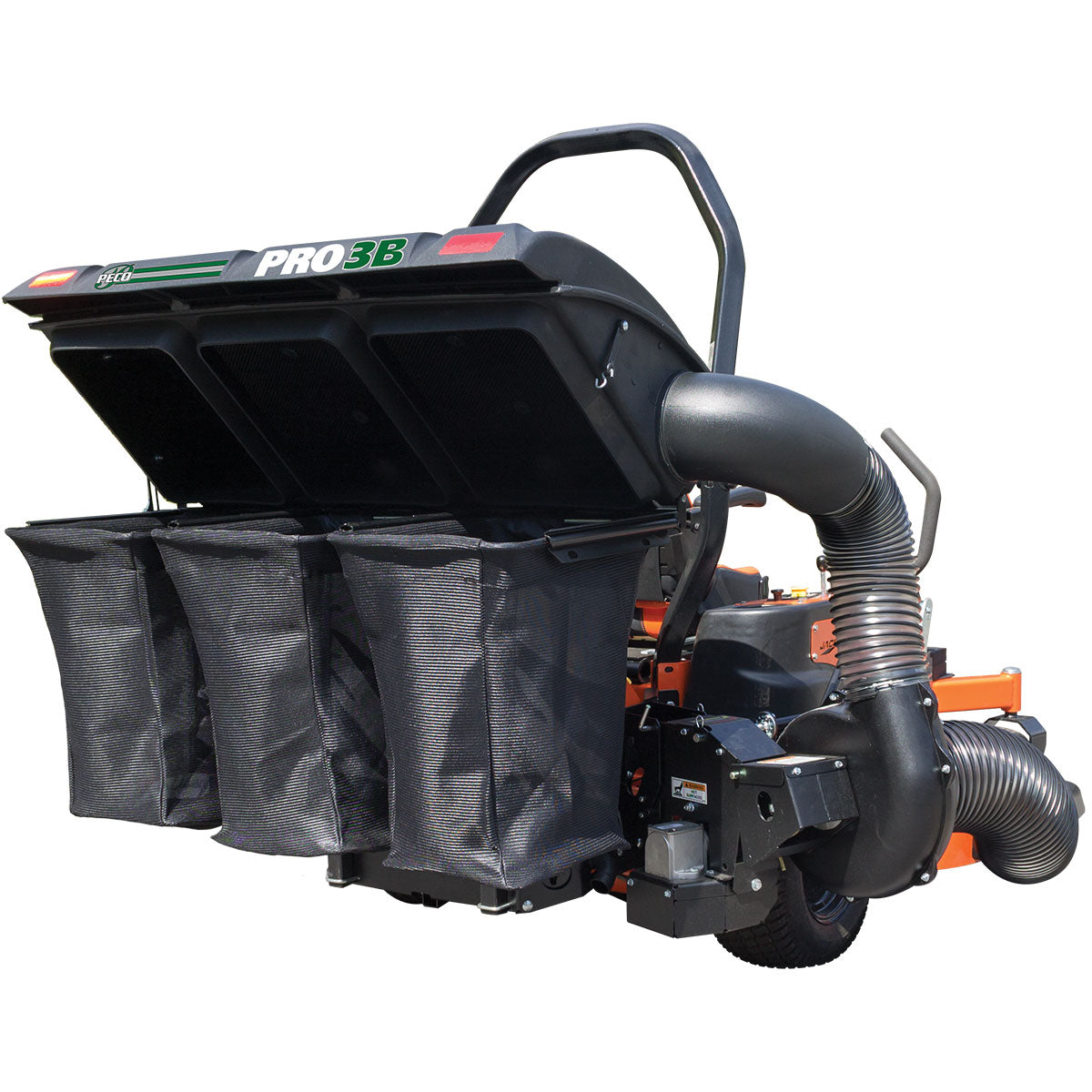

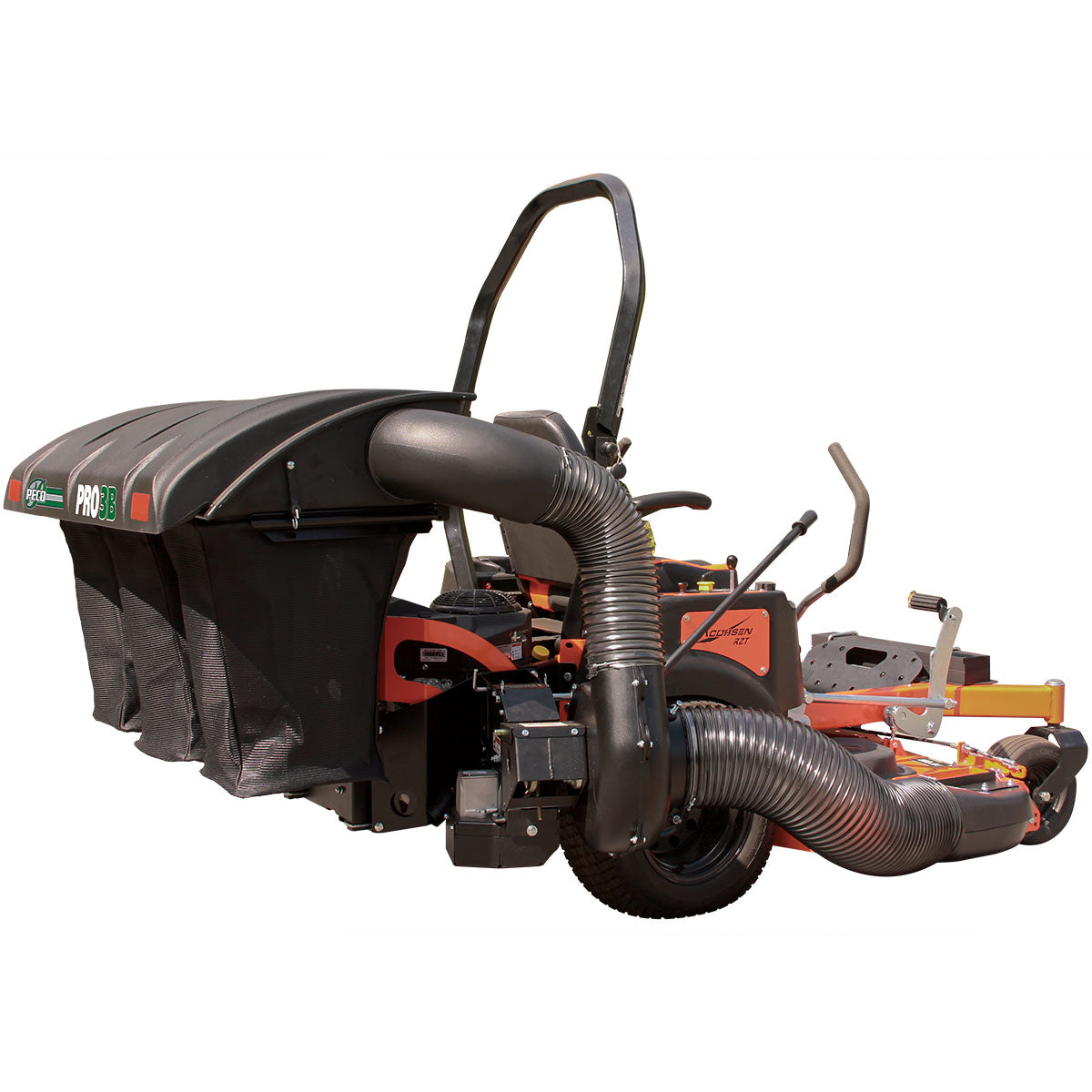

  • PECO John Deere Pro 3B 12 Bushel Powered Bagger w/ Briggs & Stratton 6.5hp Vanguard (06131510)

    Peco

    • $4,199.99



    FREE SHIPPING!

    This unit qualifies for free shipping anywhere in the continental United States.

    Fits John Deere

    Z900 Series

    Models: Z915B, Z920M, Z920R, Z925M EFI, Z930R

    2013-2024, 54" 7-Iron II Deck

    Kohler Engine: CV740, FCV740

    Kawasaki Engine: FS730V, FX801V

    If you do not see your model please refer to the PECO Bagger Mower Fit List

    WARRANTY

    • 1 Year Limited
    • 3 Year Engine

    Literature

    Owners Manual

    Warranty Statement

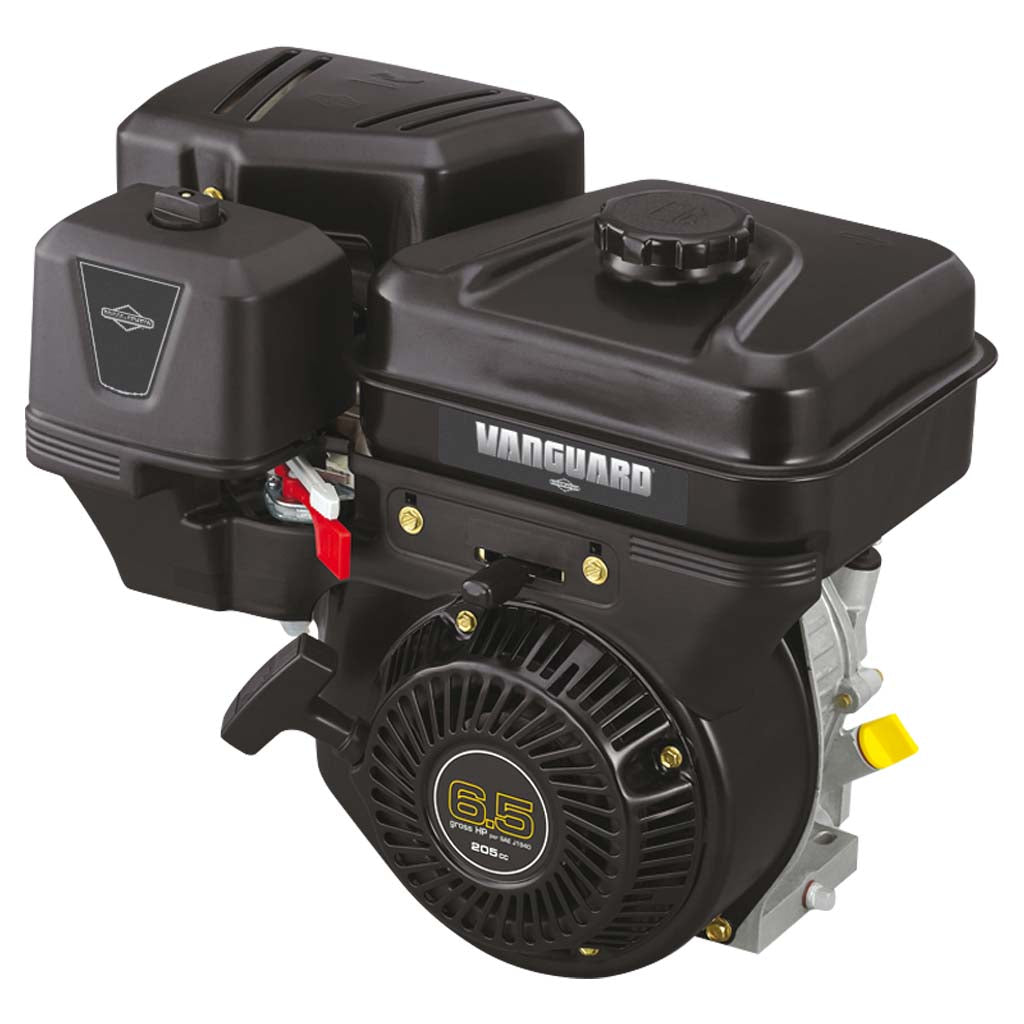

    Briggs & Stratton 6.5hp Vanguard

    6.5 Horsepower (HP) 205 Displacement (cc) Single Cylinder Gas Fuel Type
    • Transport Guard System
      • Simultaneous fuel/ignition shut-off protects the engine from oil/fuel dilution during transport
    • Commercial Style Carburetor
      • Additional fuel passages ensure reliable starting and smooth running operation at a wide range loads
    • Large, Efficient Sediment Filter
      • Sediment is collected in a large, clear bowl and is drained using a convenient tool-free valve
    • Direct Mount Fuel Tank
      • Reduces emissions and is mounted directly to the engine block to enhance durability
    • Engine Warranty ***
      • Three year commercial engine warranty for all applications
    • Racing Designed Connecting Rod
      • Efficiently improves oil flow throughout the engine; assures maximum protection of internal components
    • Magnetron Electronic Ignition
      • Quick dependable starts with no maintenance required
    • Forged Crankshaft
      • Incorporates heat-treated ball bearings to minimize friction and heat build-up
    • Heavy Duty Ball Bearing
      • Easily replaceable, extended service life
    • Over Head Valve (OHV) Design
      • Runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy.
    • Dura-Bore Cast Iron Cylinder Sleeve
      • Withstands wear while providing improved oil control
    • Full Skirt Metal Rewind
      • Optimized openings for maximum air flow
    • Acoustically Designed Muffler System
      • Improved tonal quality and lowered noise levels allow operator to work at safe levels for longer time
    • Splash Lubrication System
      • Delivers superior lubrication to the engine to ensure long life and reliability
    • High Capacity Commercial Air Cleaner
      • Ensures the engine is protected against air-born debris at all times in the most demanding conditions
    • Larger Ignition Coil
      • Assures fast, easy starts
    • Racing Head Gasket
      • Increases stability and torque

        Bagger Features

        • Comes Complete with Mounting Hardware and Weight Kit
        • Adjustable Grass Dispersion Evenly Fills All 3 Bags
        • Lower Profile for Better Rear Visibility
        • Framed in Heavy-Duty Steel
        • Quick and Easy to Install - No Tools Needed to Remove
        • Polyethylene Filter Screen

        Specifications

        Category Commercial
        15 Cubic Foot Capacity 12 Bushel
        Install Weight* 276 - 326 Pounds
        Shipping Dimensions 70" x 40" x 43"
        Shipping Weight* 350 - 400 Pounds

        *Varies by Model

        Some Assembly Required.
