STIHL’S MOST POWERFUL BATTERY-POWERED CUT OFF MACHINE.

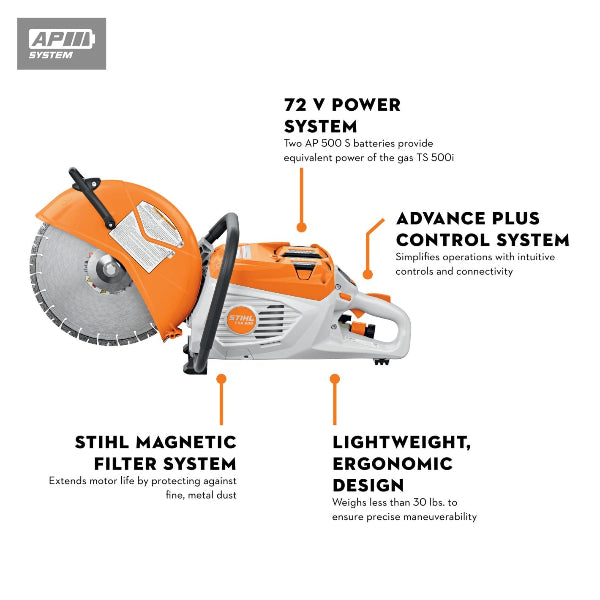

Meet the STIHL TSA 500—your new go-to for high-performance cutting without the drawbacks of gas. This 14” battery-powered cut-off machine delivers a massive 5 kW of engine power, rivaling the TS 500i gas model. Designed for professionals, it features a brushless motor protected by STIHL’s Magnetic Filter system, an ergonomic handle for precision cuts, and a magnesium guard with integrated water flow for safety and visibility. The Advance Plus control system offers intuitive operation and smart connectivity, while the IPX4 waterproof rating ensures durability in tough conditions. At just 28.8 lbs. with two AP 500 S batteries, the TSA 500 is powerful, portable, and ready to quickly and efficiently cut through concrete, steel, and more.
Product Details:
- Tool only without battery and charger
- Very powerful professional STIHL battery cut-off machine
- For horticulture and landscaping, construction and below-ground works and rescue services
- HMI ADVANCE PLUS module with integrated STIHL Smart Connector
- STIHL magnetic filter for a long service life
- For 14" cutting wheels
Features:
- Power Boost: MAXIMUM PERFORMANCE INCREASE. Thanks to internal intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.
- Constant Power: CONSTANT POWER, REGARDLESS OF BATTERY CHARGE STATUS. With other brands of battery tools, the performance usually decreases during work as the battery discharges. This is not the case with STIHL cordless power tools with CONSTANT POWER. Thanks to the intelligent electronics, your STIHL power tool works with consistently high power.
- Brushless Motor: LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the brushless motor enables you to work in an energy efficient manner. This engine also has a long service life.
- IPX4 Certified: SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides.
Specifications:
| Rated voltage | 72 V |
| Max. voltage | 80 V |
| Power consumption | 5 kW |
| Power | 5.6 BHP 1) |
| Power | 5.628 BHP 1) |
| Cordless power system | ALLPRO/AP |
| Recommended battery | AP 300.0 P |
| Battery discharge | simultaneously |
| Device weight without battery | 20.1 lb 2) |
| Cutting disk diameter | 13.8 in |
| Max. cutting depth | 4.9 in |
| Min. battery working time AP 200 S | 8 min 3) |
| Max. battery working time AP 200 S | 16 min 3) |
| Min. battery working time AP 200.0 P | 12 min 4) |
| Max. battery working time AP 200.0 P | 24 min 4) |
| Min. battery working time AP 300 S | 15 min 3) |
| Max. battery working time AP 300 S | 30 min 3) |
| Min. battery working time AP 300.0 P | 20 min 4) |
| Max. battery working time AP 300.0 P | 40 min 4) |
| Min. battery working time AP 500 S | 20 min 3) |
| Max. battery working time AP 500 S | 40 min 3) |
| Device length with cutting disc | 32.3 in |
Warnings and Safety
WARNING! Never use carbide-tipped, wood cutting, or circular saw blades on cut-off machines. They can cause severe personal injury or death from reactive forces, blade contact, or thrown tips. Never cut wood of any type.
