    Honda

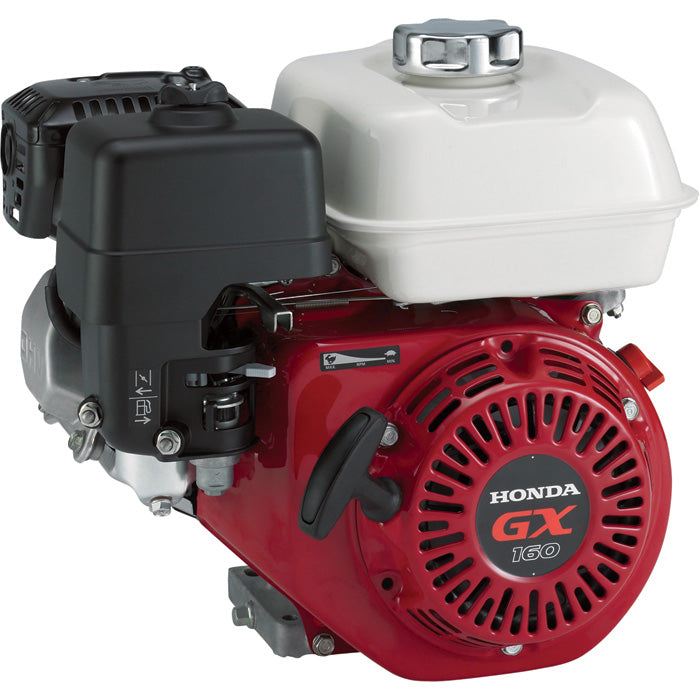

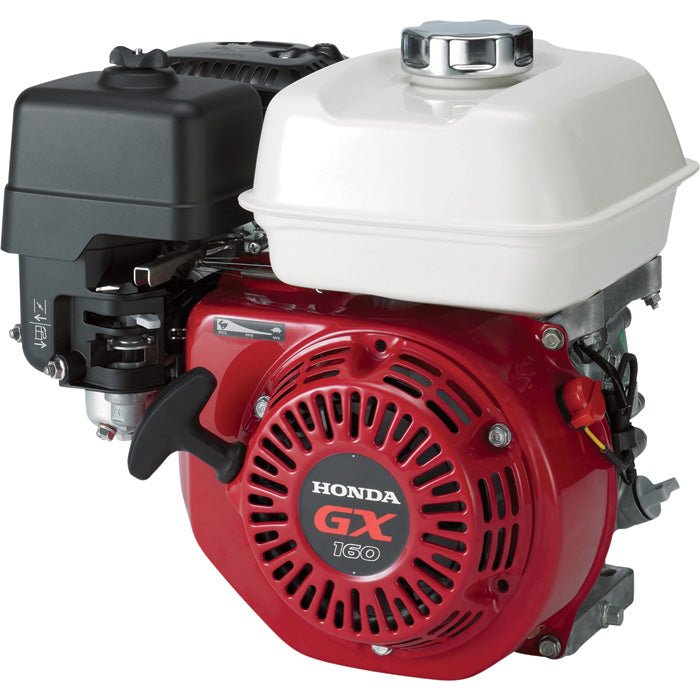

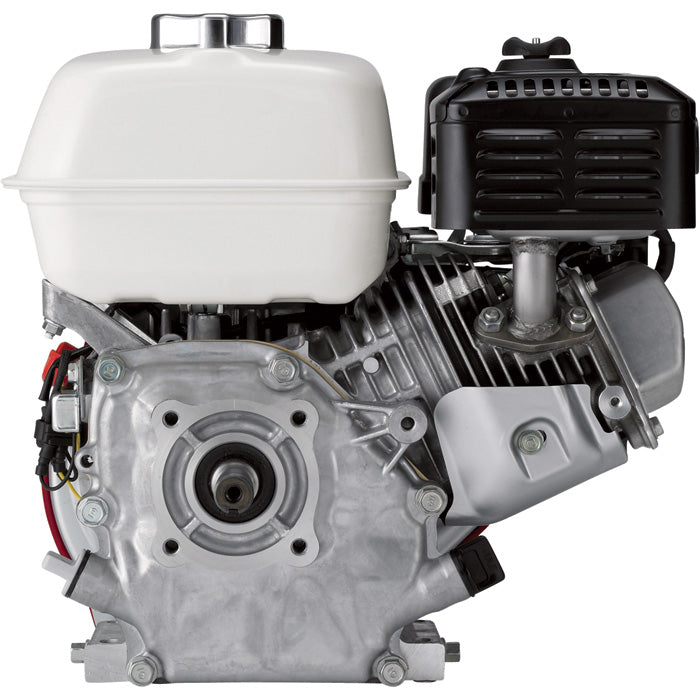

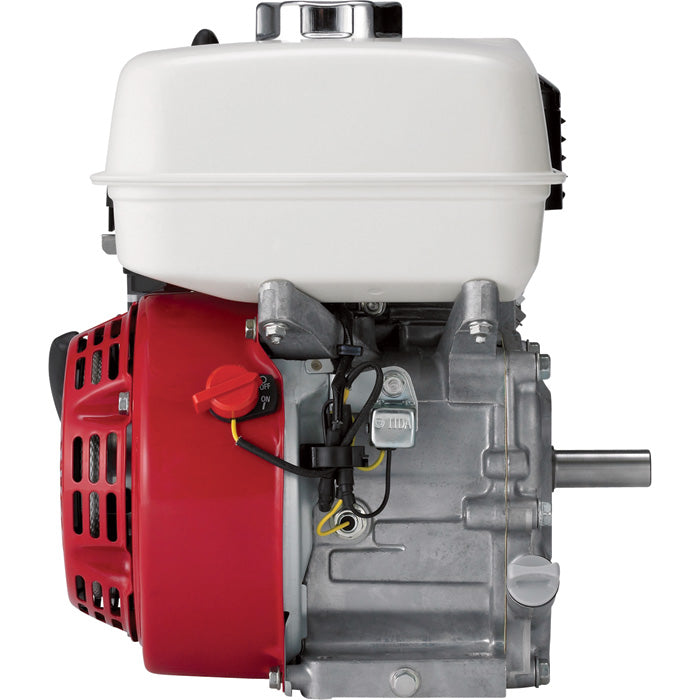

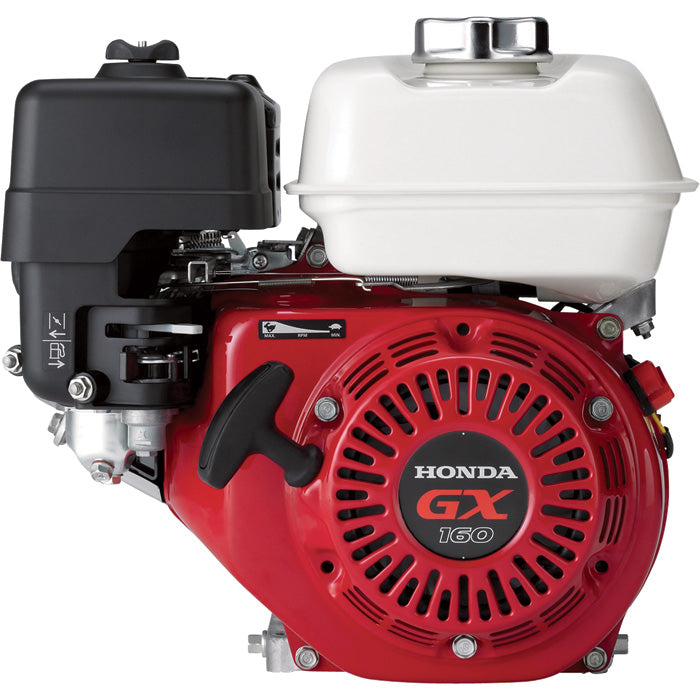

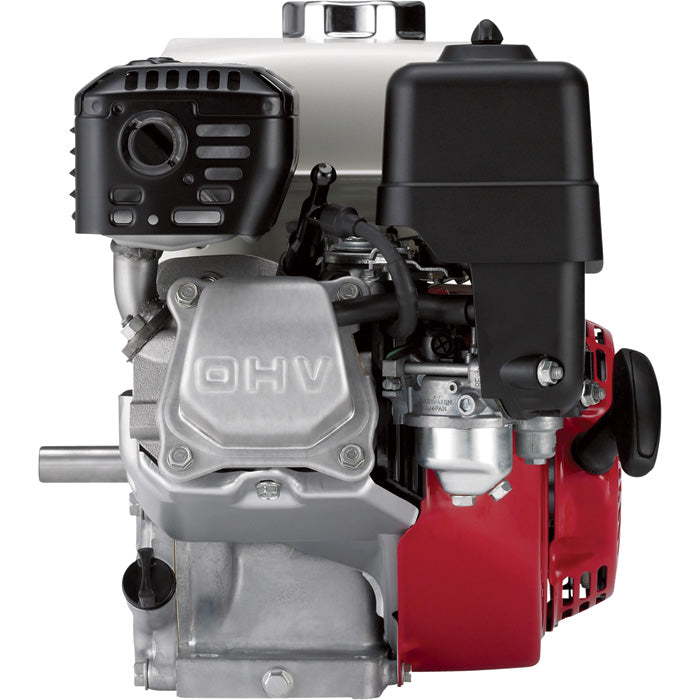

    Honda’s GX series horizontal engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

    FEATURES

    Fuel Efficient, High Output Operation

    • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
    • OHV design for increased efficiency and optimal power transfer
    • High compression ratio for better fuel efficiency

    Smooth Performance

    • Precision engineered components result in lower vibration
    • Ball bearing supported crankshaft for greater stability

    Exceptionally Quiet

    • Large capacity, multi-chamber exhaust system
    • Reduced mechanical noise due to light weight, noise-reducing materials
    • Forged steel crankshaft and rigid crankcase
    • Helical cut gears
    • Sophisticated air intake system

    Proven Reliability

    • Oil Alert
    • New carburetor chamber coating and carburetor filter help to protect against fuel impurities
    • Cast iron cylinder sleeve
    • High quality materials, fit, and finish
    • Dual element air cleaner
    • Fuel Valve
    • 3-Year Limited Warranty

    Easy to Use and Maintain

    • Simple throttle control
    • Large fuel tanks
    • Large automotive type fuel cap
    • Dual oil drains and fill
    • Easy, convenient, heavy duty control box
    • Easily accessible spark plug

    Easy Starting

    • Heavy duty recoil starter
    • Ergonomic, easy to grip recoil rope design
    • Automatic mechanical de-compression system

    Emissions Compliant

    • Lower emissions, same power output!
    • CARB and EPA certified
    • No catalyst necessary



    SPECIFICATIONS

    Engine Type Air-cooled 4-stroke OHV
    Bore x Stroke 68 x 45 mm
    Displacement 163 cm3
    Net Power Output 4.8 HP (3.6 kW) @ 3,600 rpm
    Net Torque 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
    PTO Shaft Rotation Counterclockwise (from PTO shaft side)
    Compression Ratio 9.0:1
    Lamp/Charge coil options 25W, 50W / 1A, 3A, 7A
    Carburetor Butterfly
    Ignition System Transistorized magneto
    Starting System Recoil Starter
    Lubrication System Splash
    Governor System Centrifugal Mechanical
    Air Cleaner Dual Element
    Oil Capacity 0.61 US qt (0.58 L)
    Fuel Tank Capacity 3.3 U.S. qts (3.1 liters)
    Fuel Unleaded 86 octane or higher
    Dry Weight 33 lbs (15.1 kg)
    Dimensions 12.2"L x 14.3"W x 13.6"H
