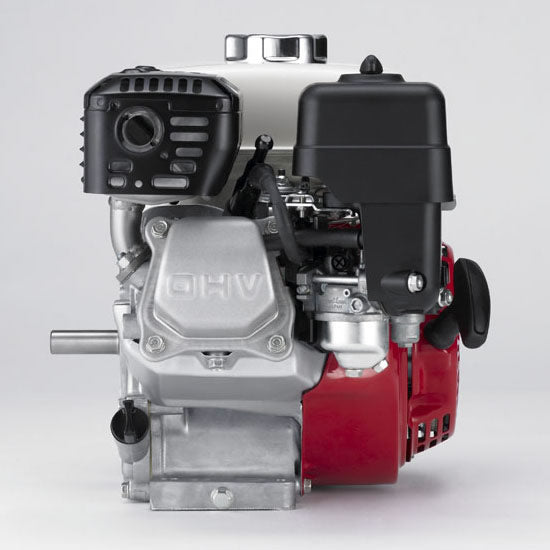

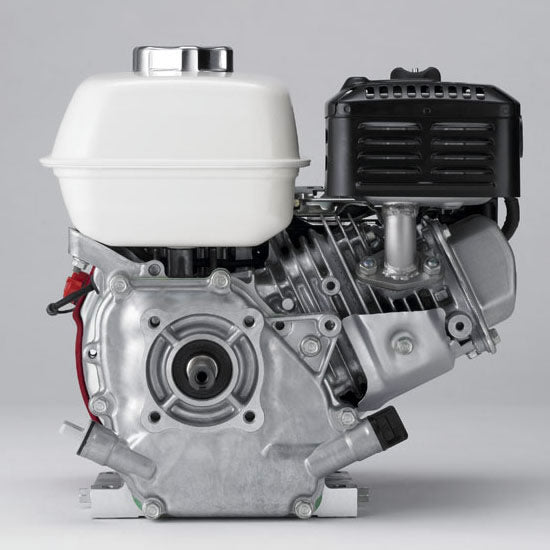

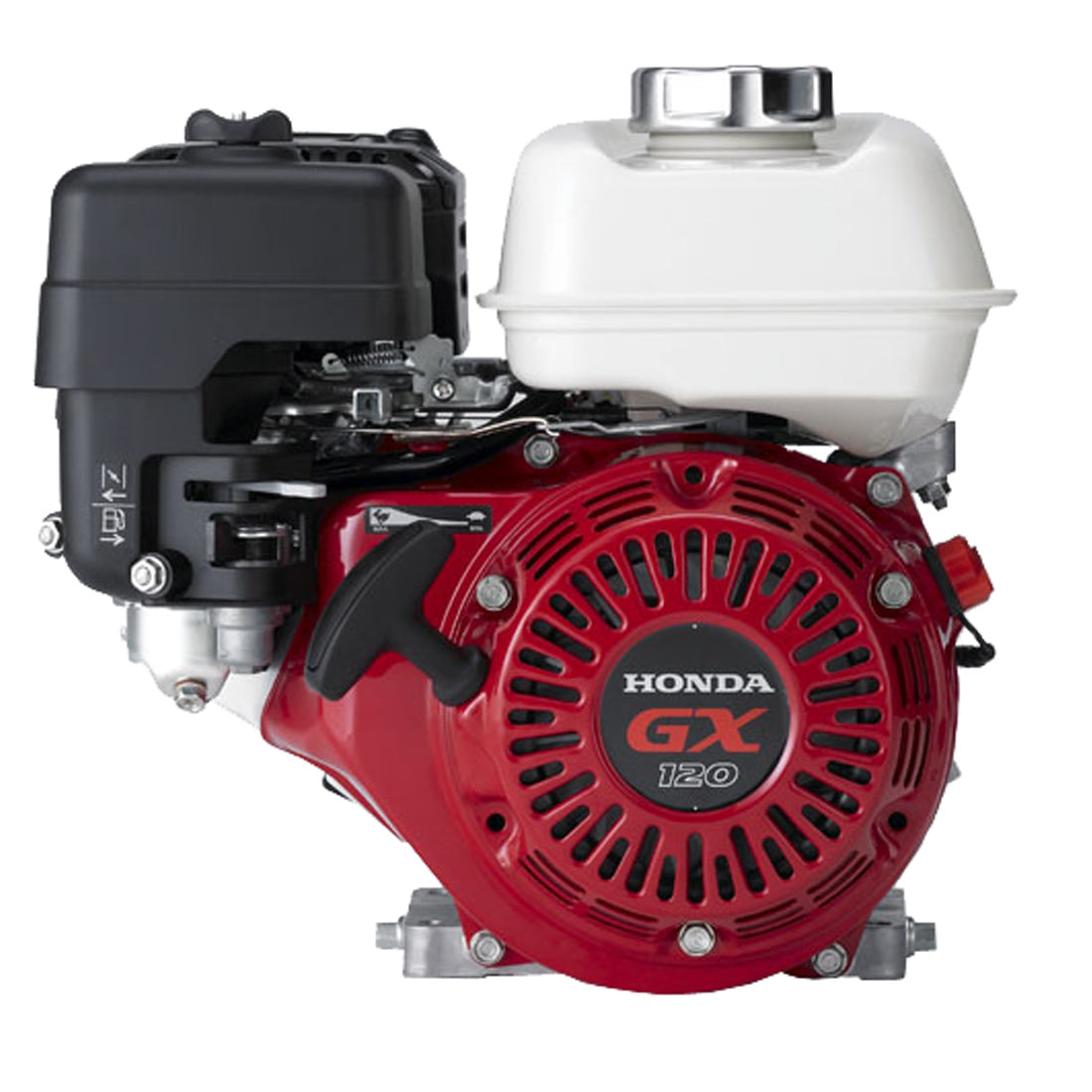

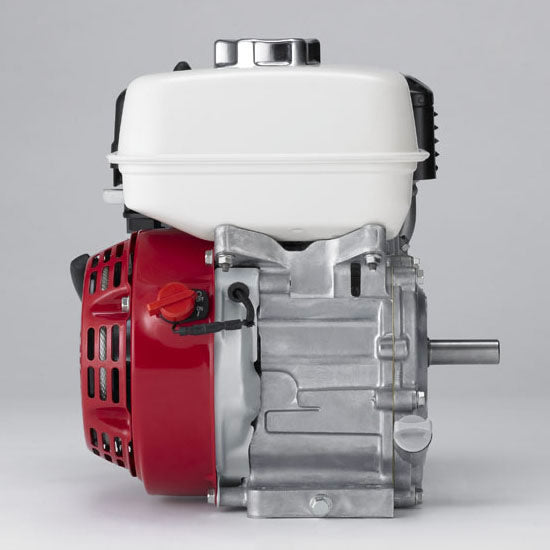

(GX120) Honda Horizontal Engine-118cc

Maxim

  • $369.99



Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

FEATURES

Fuel Efficient, High Output Operation

  • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
  • OHV design for increased efficiency and optimal power transfer
  • High compression ratio for better fuel efficiency

Smooth Performance

  • Precision engineered components result in lower vibration
  • Ball bearing supported crankshaft for greater stability

Exceptionally Quiet

  • Large capacity, multi-chamber exhaust system
  • Reduced mechanical noise due to light weight, noise-reducing materials
  • Forged steel crankshaft and rigid crankcase
  • Helical cut gears
  • Sophisticated air intake system

Proven Reliability

  • Oil Alert
  • New carburetor chamber coating and carburetor filter help to protect against fuel impurities
  • Cast iron cylinder sleeve
  • High quality materials, fit, and finish
  • Dual element air cleaner
  • Fuel Valve
  • 3-Year Limited Warranty

Easy to Use and Maintain

  • Simple throttle control
  • Large fuel tanks
  • Large automotive type fuel cap
  • Dual oil drains and fill
  • Easy, convenient, heavy duty control box
  • Easily accessible spark plug

Easy Starting

  • Heavy duty recoil starter
  • Ergonomic, easy to grip recoil rope design
  • Automatic mechanical de-compression system

Emissions Compliant

  • Lower emissions, same power output!
  • CARB and EPA certified
  • No catalyst necessary



SPECIFICATIONS

Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 60 x 42 mm
Displacement 118 cm3
Net Power Output 3.5 HP (2.6 kW) @ 3,600 rpm
Net Torque 5.4 lb-ft (7.3 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.5:1
Lamp/Charge coil options 25W, 50W
Carburetor Butterfly
Ignition System Transistorized magneto
Starting System Recoil
Lubrication System Splash
Governor System Mechanical
Air Cleaner Dual Element
Oil Capacity 0.59 US qt (0.56 L)
Fuel Tank Capacity 2.1 U.S. qts (2.0 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 29 lbs (13.0 kg)
Dimensions 11.7"L x 13.6"W x 13.0"H
