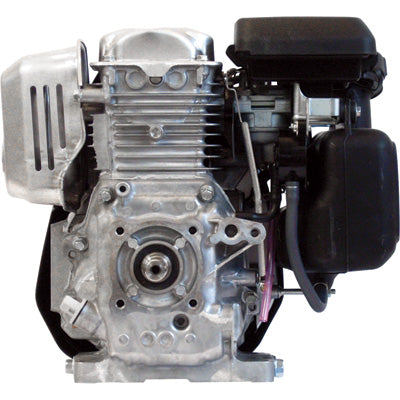

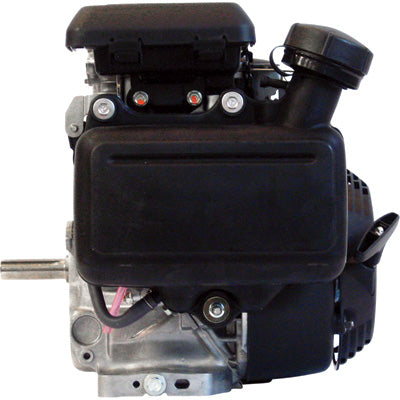

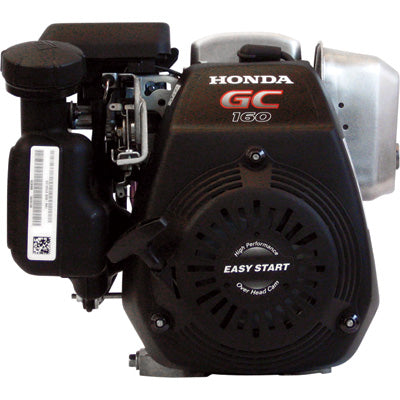

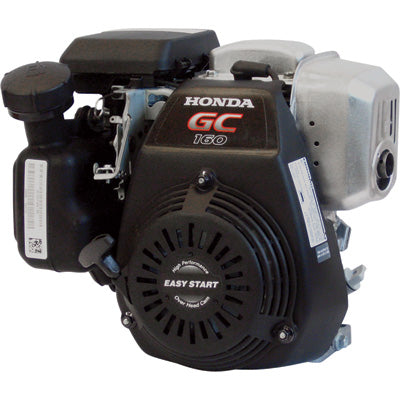

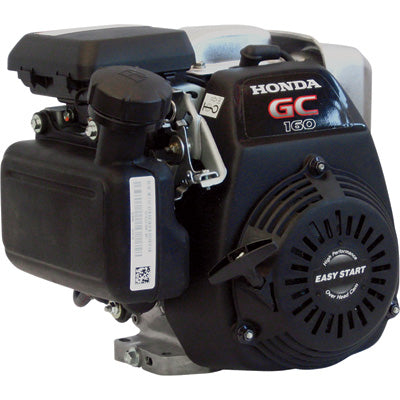

(GC160) Honda Horizontal Engine-160cc
With a Honda GC Series Engine at the heart of your home-use equipment, you'll be in business. GC Series Engines are compact, lightweight and offer the perfect solution for residential power equipment.
FEATURES
|
Fuel Efficient, High Output Operation
|
Compact and Lightweight
|
|
Quiet, Smooth Performance
|
Proven Reliability
|
|
Easy to Use and Maintain
|
Easy Starting
|
|
Emissions Compliant
|
SPECIFICATIONS
| Engine Type | Air-cooled 4-stroke OHC |
| Bore x Stroke | 2.5" x 2.0" (64 mm x 50 mm) |
| Displacement | 9.8 cu in (160 cm3) |
| Net Power Output | 4.6 HP (3.4 kW) @ 3600 rpm |
| Net Torque | 6.9 lb-ft (9.4 Nm) @ 2500 rpm |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| Compression Ratio | 8.5:1 |
| Carburetor | Horizontal type butterfly valve |
| Ignition System | Transistorized magneto |
| Starting System | Recoil Starter |
| Air Cleaner | Dry (paper filter) |
| Governor System | Centrifugal Mechanical |
| Fuel Tank Capacity | 1.9 U.S. qts (1.8 liters) |
| Fuel | Unleaded 86 octane or higher |
| Oil Capacity | 0.61 US qt (0.58l) |
| Lubrication System | Splash |
| Dry Weight | 25.4 lbs (11.5 kg) |
| Dimensions | 13.3"L x 14.5"W x 13.0"H |
