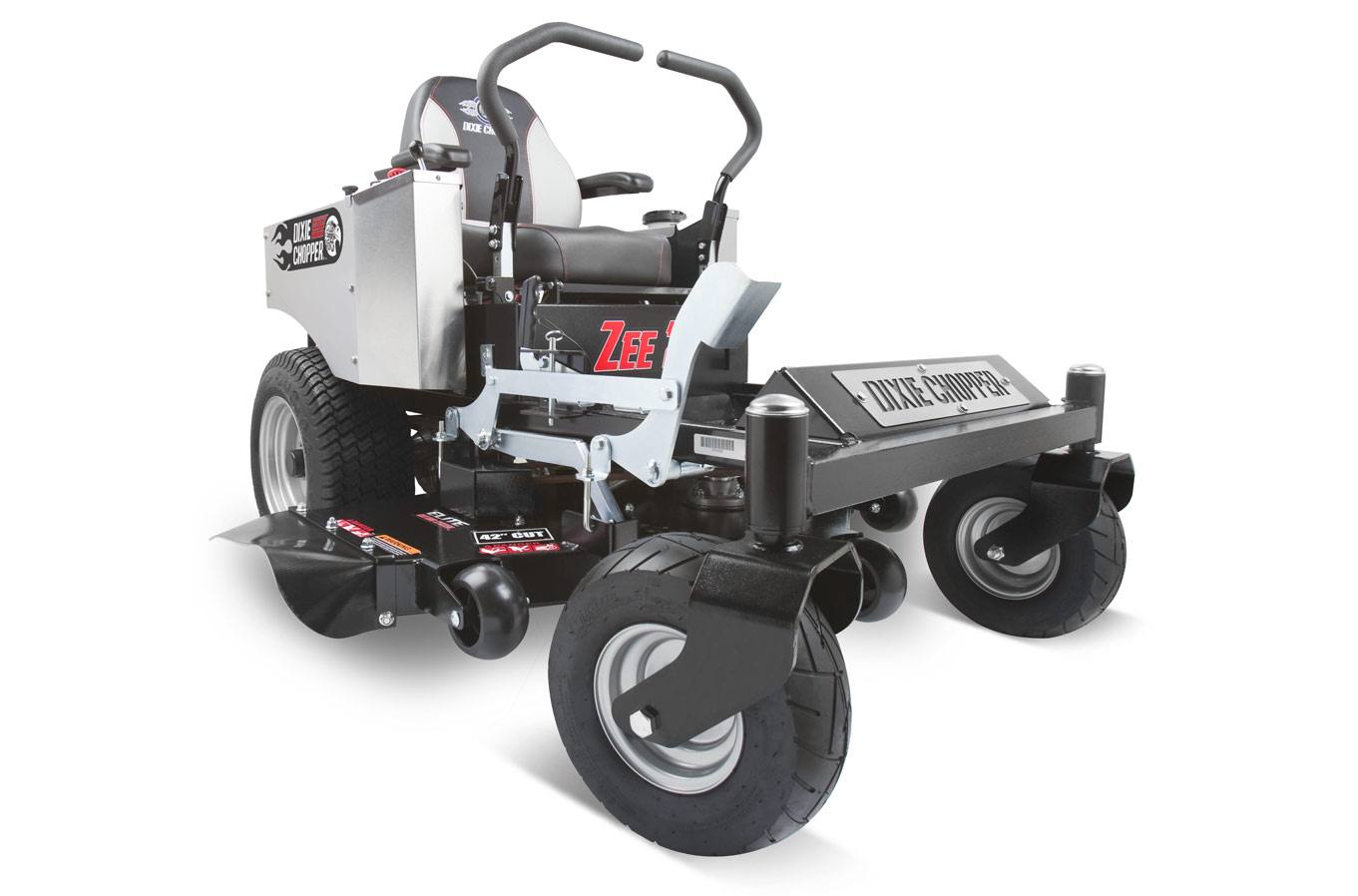

Dixie Chopper Zee 2 2348KW 48" Residential Zero-Turn Mower w/ Kawasaki FR (23hp)
Warranty
|
Literature |
The Mower with More Muscle for Your Money.
The Dixie Chopper Zee 2 Lawn Mower is the best residential mower in its class with big engines, big decks, and big value. No other residential lawn mower gives you more muscle for your money.

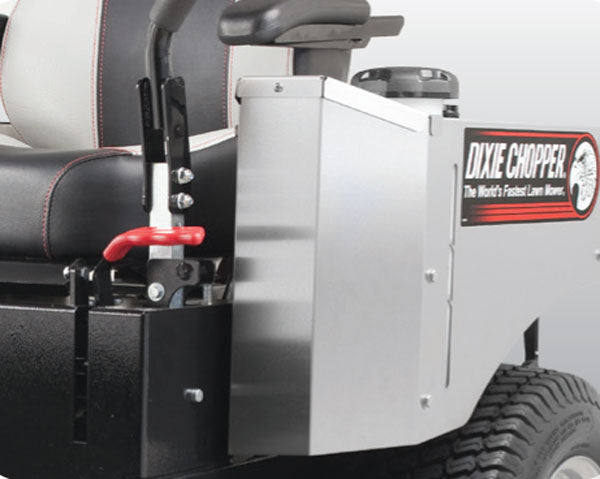

- Steel Fenders - Protects fuel tank from sun and impact damage.
-

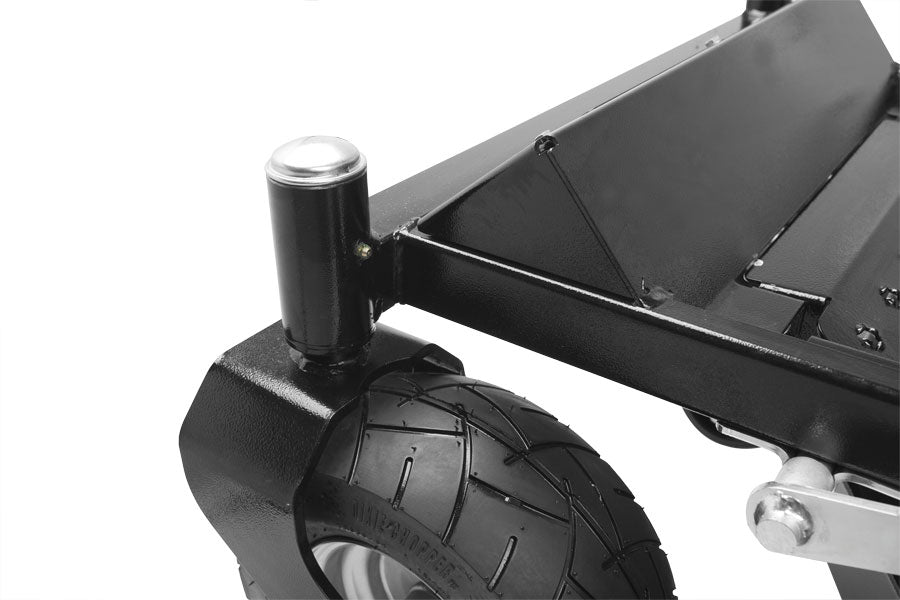

Commercial Forks - Greaseable and lifetime warranty against breakage.

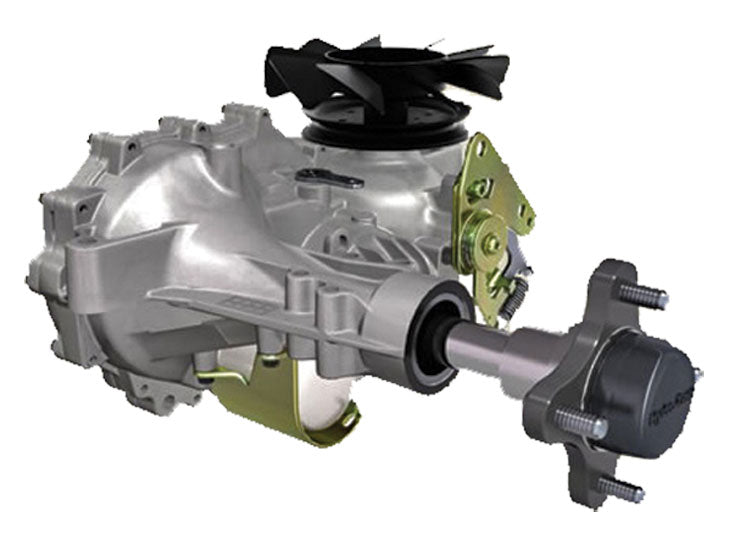

- Hydro-Gear ZT-2800 - Smooth Operation and fully serviceable.
-

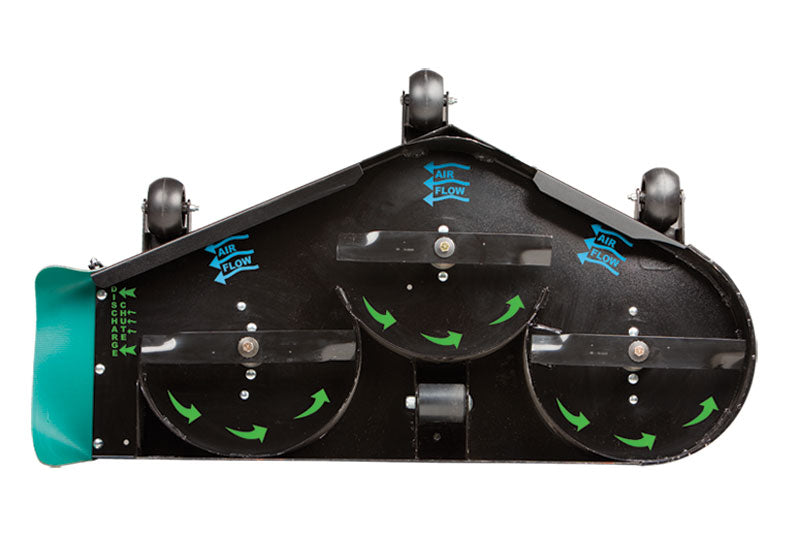

42", 48" and 54" Elite Cutting System - Formed and welded 10 ga deck shell.

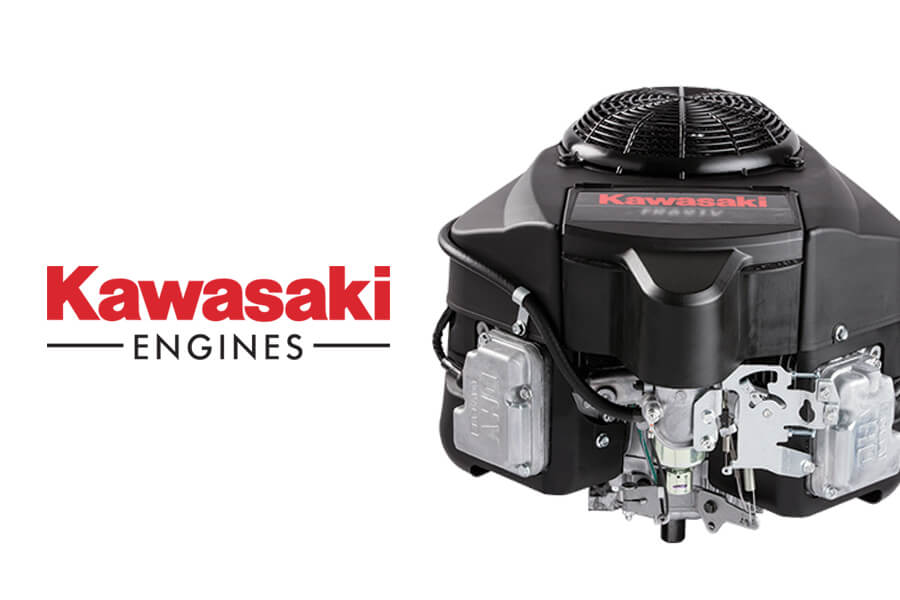

- High Horsepower - A 23-horsepower engine from Kawasaki® to power you at up to 3.1 acres per hour.

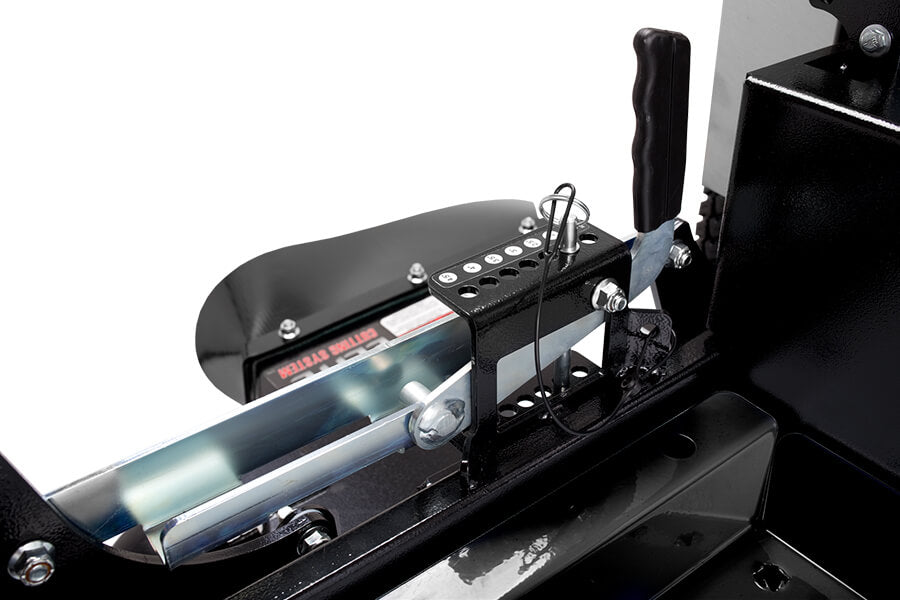

- Quick-Lift Lock - Allows you to quickly raise the deck to avoid objects and locks the deck in travel height for transporting and storing.
Dixie Chopper Accessory Compatibility Chart |
|
Dixie Chopper Zee 2 Accessories |
|
| Striping Kit | 902773 |
| Operator Controlled Discharge Chute (OCDC) 48" |
301429 |
| Mulch Kit 48" |
903011 |
| High-Lift Blade 48" |
301068 |
| Eliminator Blade 48" |
301068E |
| Roll Over Protection Structure (ROPS) | 902676 |
| Bagger (Accelerator) | 903031 |
| White Soft-Top Sunshade (w/ out ROPS) | 902752 |
| Run-Flat M/C Tire (Assembly) | 402065 |
| Run-Flat Rib Tire (Assembly) | 402091 |
| Light Kit (2018 & Newer) | 903416 |
| Light Kit (2017 & Older) | 900366 |
___________________________________________
Specifications:
Engine |
|
| Manufacturer | Kawasaki FR |
| Horsepower | 23 hp |
| Displacement | 726cc |
| Air-cleaner | 2-stage |
| Cooling | Air-cooled |
| Starter | Electric |
| Engine warranty | 3-Year |
Drive System |
|
| Dual hydrostatic | Hydro-Gear® ZT-2800 transaxles (internal expansion tank) |
|
Ground speed |
7 mph |
| Parking brake | Integrated in transaxle |
| Towing capacity | 100 lbs |
Mower Deck |
|
| Deck Size | 48" |
| Acres/hour | 2.7 |
| Cutting height | 1.5" - 4.5" |
| Deck height adjustments | Manual lift, 1/2" increments |
| Deck Quick-Lift | Integrated |
| Deck engagement | Ogura® 87 ft-lbs |
| Construction | 10 ga formed & welded |
| Blades | 3 - 17.25" x 2.5" |
| Blade Tip Speed | 18,500 fpm |
| Spindles | .75" effective diameter machined shaft |
| Spindle Housings | 1pc keyless sealed cast aluminum |
| Anti-scalp rollers | 4 |
| Pulleys | Vented split 3/16" steel deep groove |
General |
|
| Battery | 12 Volt, 300cca |
| Digital display | hour meter |
| Fuel capacity | 4 gallons |
| Rear tires | 20 x 10-8 GrassMaster |
| Front tires | 13 x 6.5-6 |
| Frame | Welded 1" x 2", 2" x 2" tube, 10 ga formed |
| Fenders | Stainless steel |
| Floor-pan | Removable, steel |
| Seat | 20" padded seat w/ armrests |
Dimensions |
|
| Overall height | 47" |
| Overall width | 57.5" |
| Overall length | 76" |
| Weight | 750 lbs |
If you have any questions about the Dixie Chopper Zee 2 48" residential lawn mower give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
