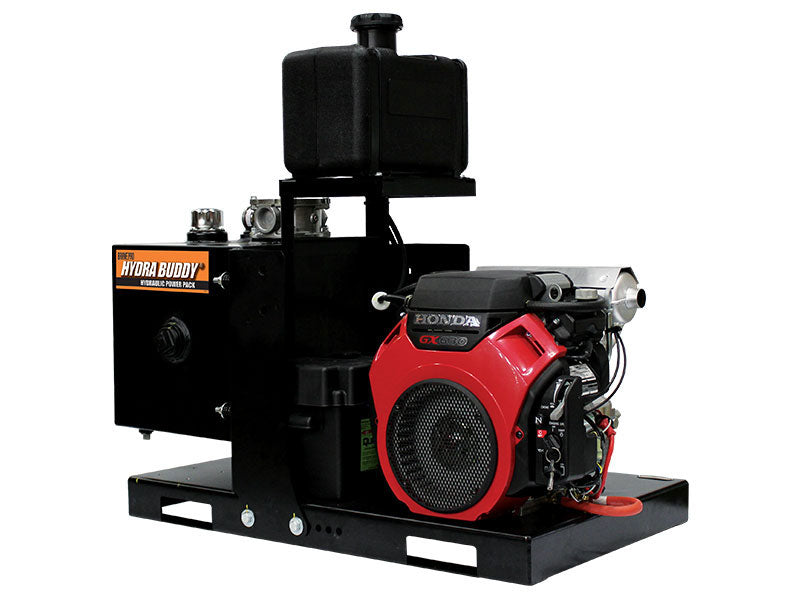

  • BravePro 3000psi Skid Mount Hydra Buddy w/ Honda GX630 (HBHS600GXE)

    BravePro

    • $5,699.99



    FREE SHIPPING!

    This unit qualifies for free shipping anywhere in the continental United States.

    Warranty

    • 2 Year Consumer / 2 Year Limited Commercial
    • 3 Year Engine

    Literature



    Powered by Honda GX commercial engines these units mount securely to your trailer or application. Skid mount power packs are ideal for job sites where no power or air is accessible. They are compatible for use with single or double-acting cylinders and are also fork lift accessible.

    *Brave and Brave Pro hydraulic power packs are not intended to be plumbed into a closed center hydraulic system

    Features

    • Mounts securely to your trailer or application
    • Zinga in-tank hydraulic filter with indicator
    • System relief valve
    • Compatible for use with single or double-acting cylinders

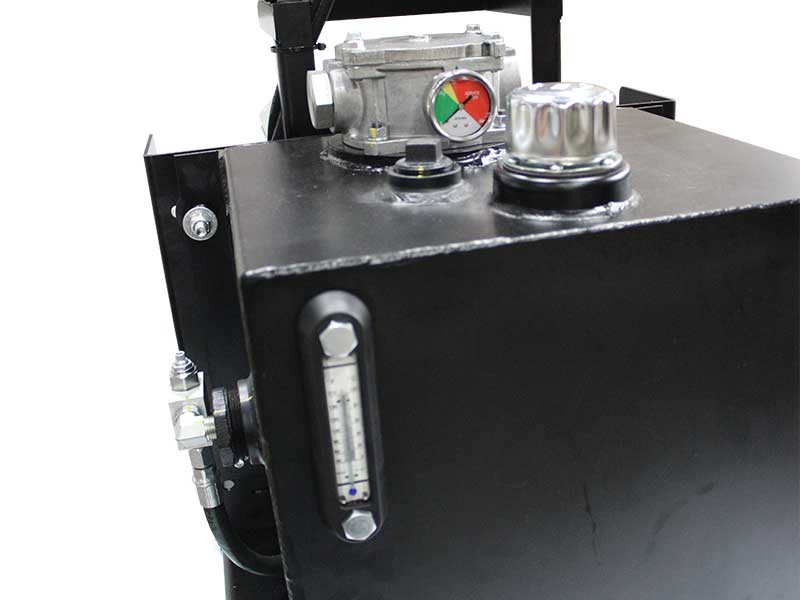

    • Large hydraulic oil tank with sight / temperature gauge
    • Fork lift accessible

    Specifications

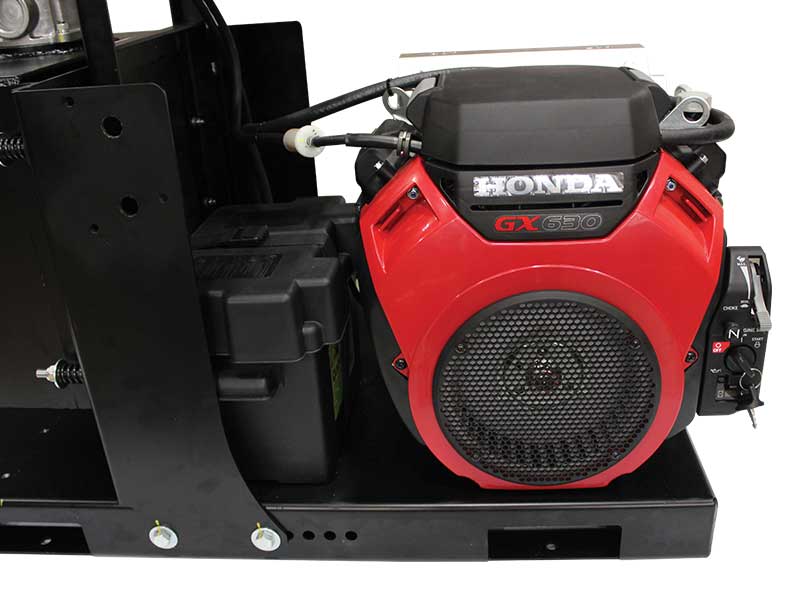

    Engine Honda GX630
    Start Electric
    Engine CC 688cc
    Flow 9 GPM
    Pump Displacement .66 CIR
    Pump Ports Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb
    Pump Rotation Direction Clockwise
    Hydraulic Tank Volume
    (Nominal, Actual, Useable)
    19.2, 17.5, 13.5
    Hydraulic Tank Material 12 Gauge Steel
    Hydraulic Tank Drain Port 3/4" NPT
    Hydraulic Valve PSI 3,000 PSI
    Hydraulic Valve Type Optional Kits Available
    Hydraulic Valve Inlet 12 ORB Plumbed to Reservoir
    Hydraulic Valve Outlet 8 Male JIC Adapter Installed
    Weight (Dry) 368 lbs.
    Dimensions
    (LxWxH)
    48" x 24.5" x 43"

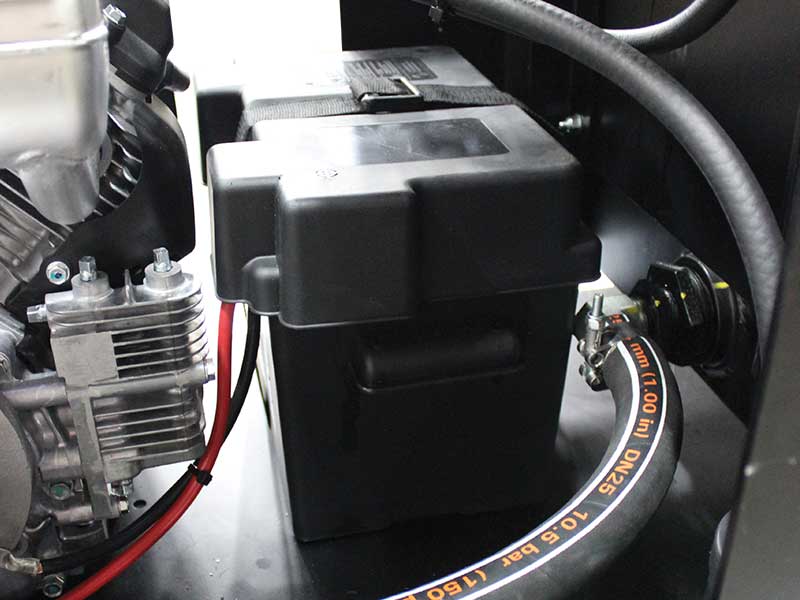

    Battery Included



    LIFT GATE DELIVERY

    This item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above.

    SOME ASSEMBLY REQUIRED.

    If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
