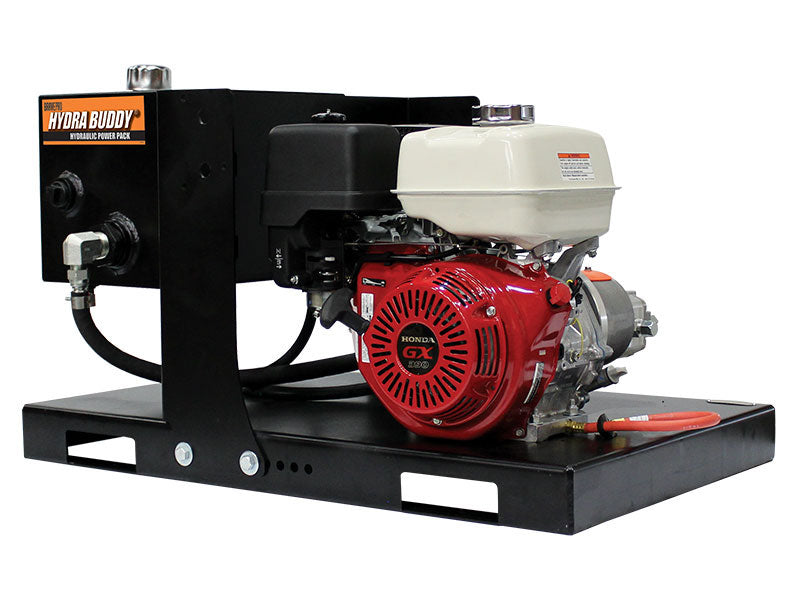

BravePro 3000psi Skid Mount Hydra Buddy w/ Honda GX390 (HBHS300GX)
This unit qualifies for free shipping anywhere in the continental United States.

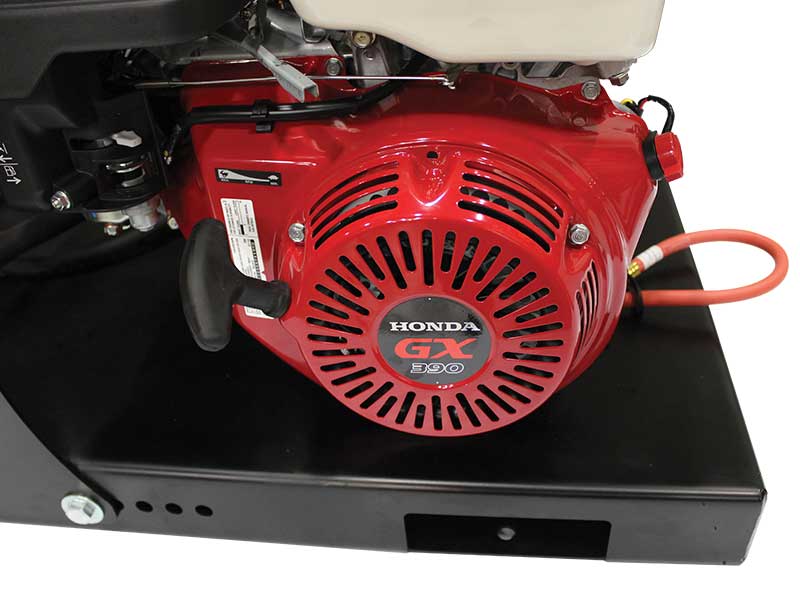

Powered by the Honda GX390 commercial engines, these Brave Pro 3000 psi hydraulic pumps mount securely to your trailer or application. Skid mount power packs are ideal for job sites where no power or air is accessible. They are compatible for use with single or double-acting cylinders and are also fork lift accessible.
*Brave and Brave Pro hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
- Mounts securely to your trailer or application
- Spin-on hydraulic return filter with indicator
- System relief valve
- Compatible for use with single or double-acting cylinders

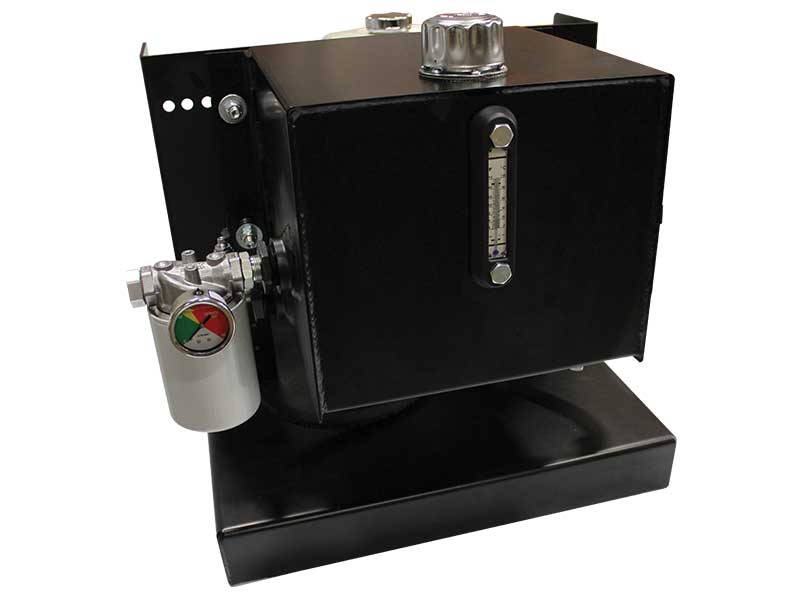

- Large hydraulic oil tank with sight / temperature gauge
- Fork lift accessible

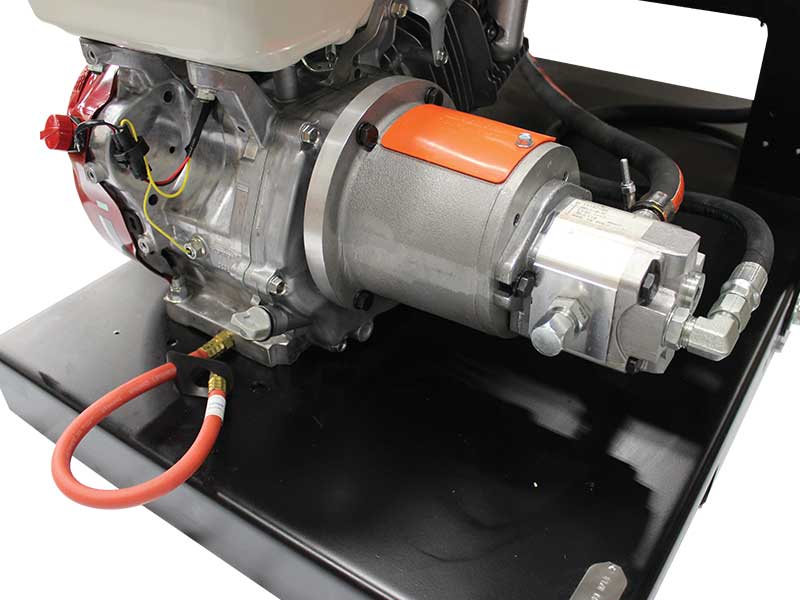

|Pump Displacement||.36 CIR|
|Pump Ports||Inlet: 1-1/16-12 Orb / Outlet: 7/8-14 Orb|
|Pump Rotation Direction||Clockwise|
|Hydraulic Tank Volume
(Nominal, Actual, Useable)
|9.7, 8.5, 5.75|
|Hydraulic Tank Material||12 Gauge Steel|
|Hydraulic Tank Drain Port||3/4" NPT|
|Hydraulic Valve PSI||3,000 PSI|
|Hydraulic Valve Type||Optional Kits Available|
|Hydraulic Valve Inlet||12 ORB Plumbed to Reservoir|
|Hydraulic Valve Outlet||8 Male JIC Adapter Installed|
|Weight (Dry)||240 lbs.|
|44" x 24.5" x 26"|
LIFT GATE DELIVERY
This item will ship via truck freight. The driver will not be responsible for helping you unload the freight. If you do not have a means to unload a heavy crate from the back of a tractor trailer (loader, fork lift, etc), please choose the lift gate delivery option above.
SOME ASSEMBLY REQUIRED.
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
