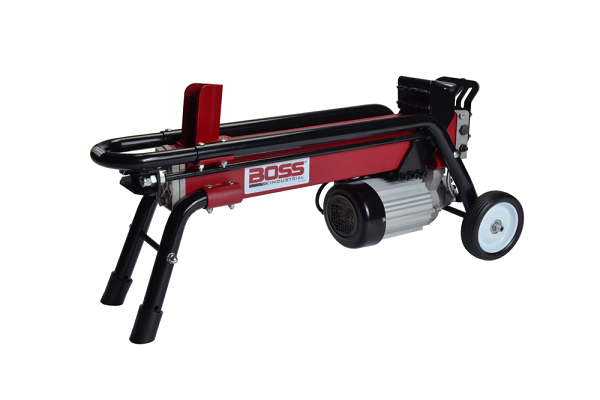

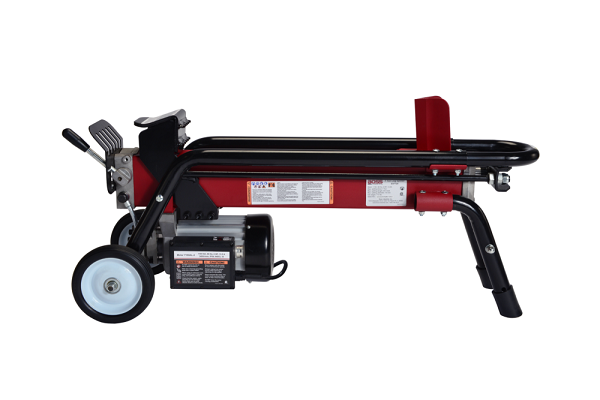

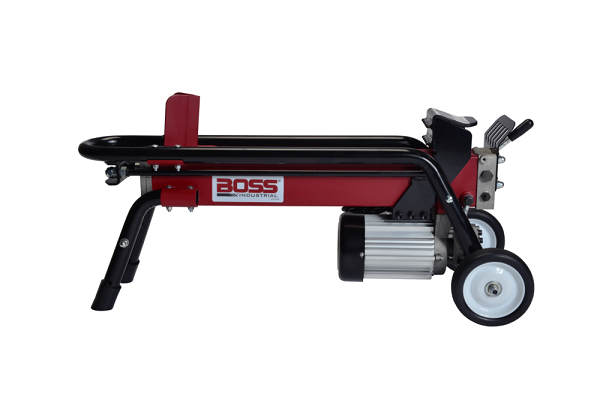

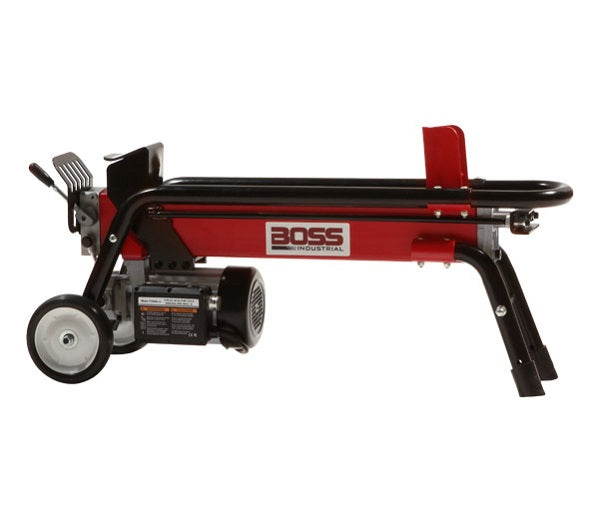

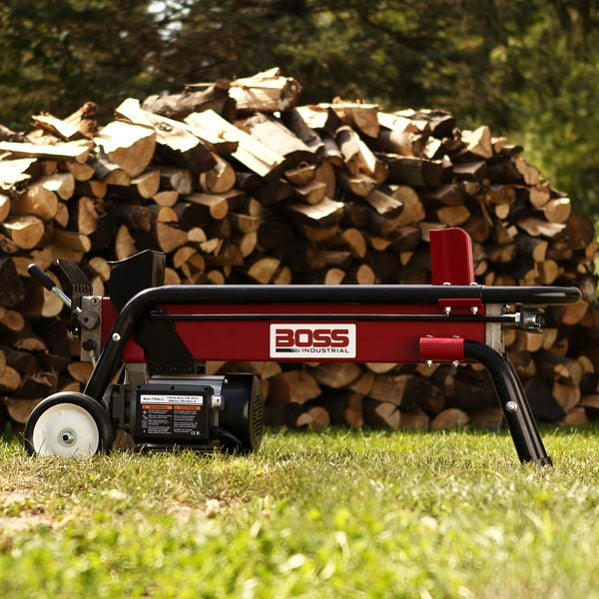

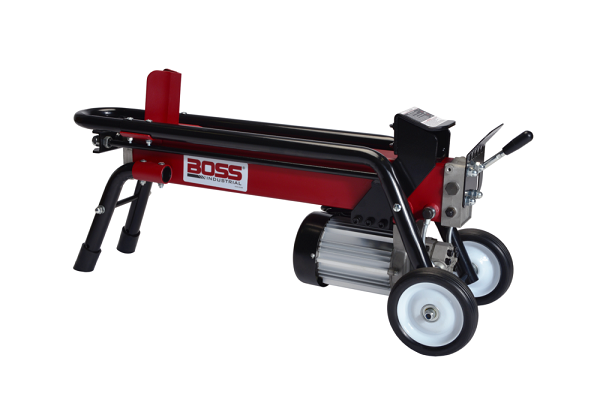

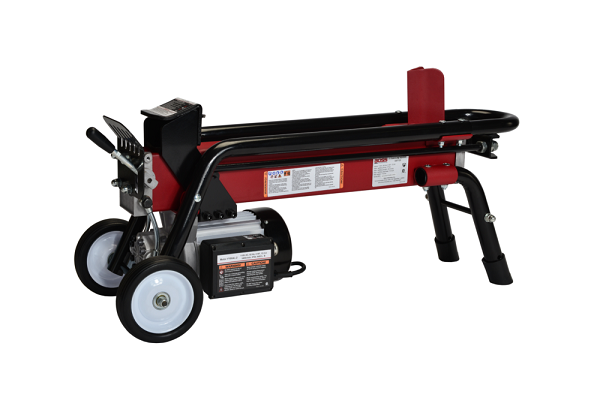

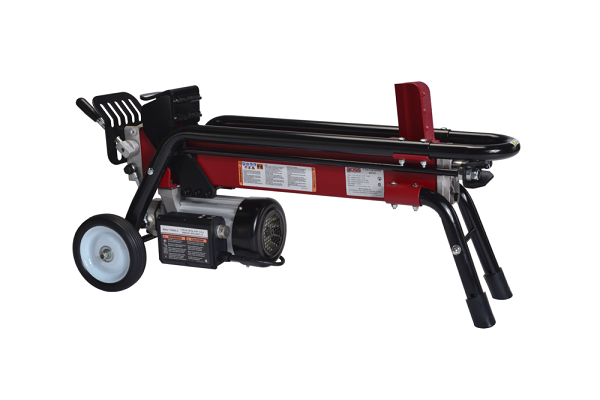

Boss Industrial 7 Ton Electric Log Splitter (ES7T20)

Boss Industrial

  • $449.99



Free Shipping!

This unit qualifies for free shipping anywhere in the continental United States.

Warranty

  • 2 Year Limited Consumer
  • 180 Day Limited Commercial

Warranty pdf

Owners Manual

The Boss Industrial ES7T20 7 Ton Electric Log Splitter is the hallmark model for home and farm use. Get the job done in half the time with our automatic ram return system.

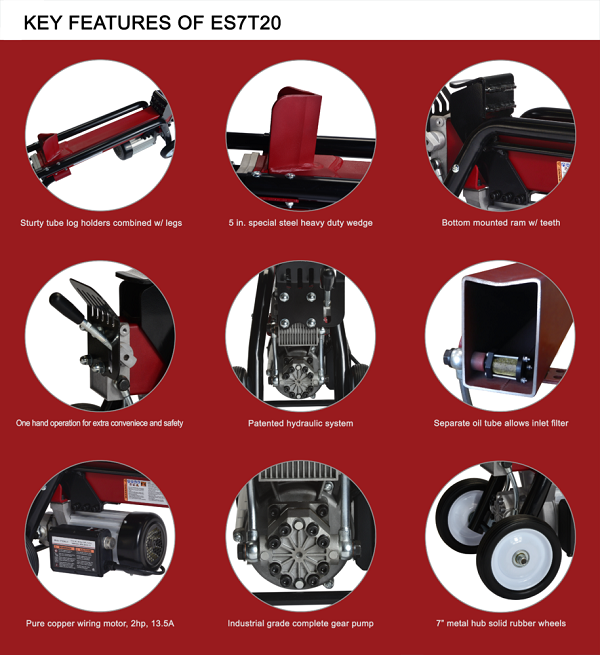

  • 2 HP engine, upgraded from smaller models.
  • Full-beam construction—unique among the competition.
  • One-handed operation, automatic ram return, and wide, rugged log trays make this easy for anyone to use.
  • Lightweight and portable
  • Accessories available



Specifications:

Motor 2 hp, 115Volt, 60 Hz, 3400 rpm, 13.5 A
Max Splitting Force 7 ton
Max Splitting Length 20.5 in.
Splitting Wedge Height 5 in.
Hydraulic Pressure 3700 psi
Splitting Cycle (Forward / Return) 9 / 6 seconds
Oil Capacity 4 quarts (included)
Wheel 7 in w/metal hub
One Hand Operation Yes
Auto Return Yes
No Assembly Required Yes
Power cable SJTW 14 AWG (2.08mm2)
Cord length 5.5 ft
Cylinder bore 2.2 in
Max cylinder stroke 17 in
Net Weight / Gross Weight 107 / 112 lbs
Machine dimensions (LxWxH)(in) 39.5 x 13.5 x 20
Packing Size (LxWxH) 44 x 14 x 21

*Tonnage and cycle times may vary dependent upon electricity supply, mechanical and environmental conditions



Optional Accessories

4-Way Cross Wedge (CW-S)

This 4-way cross wedge cuts splitting time in half by quartering logs on a single pass. Drops into place in two different positions to accommodate logs of varying diameters.

Log Splitter Stand (FT-5)

The FT-5 log splitter rack elevates the 7-Ton Electric log splitter off the ground, making it more ergonomically-friendly.

Log Tray (LT-4)

The LT-4 log tray catches split logs for a more organized split pile.


IF YOU HAVE ANY QUESTIONS FEEL FREE TO CALL 410-692-5170.
