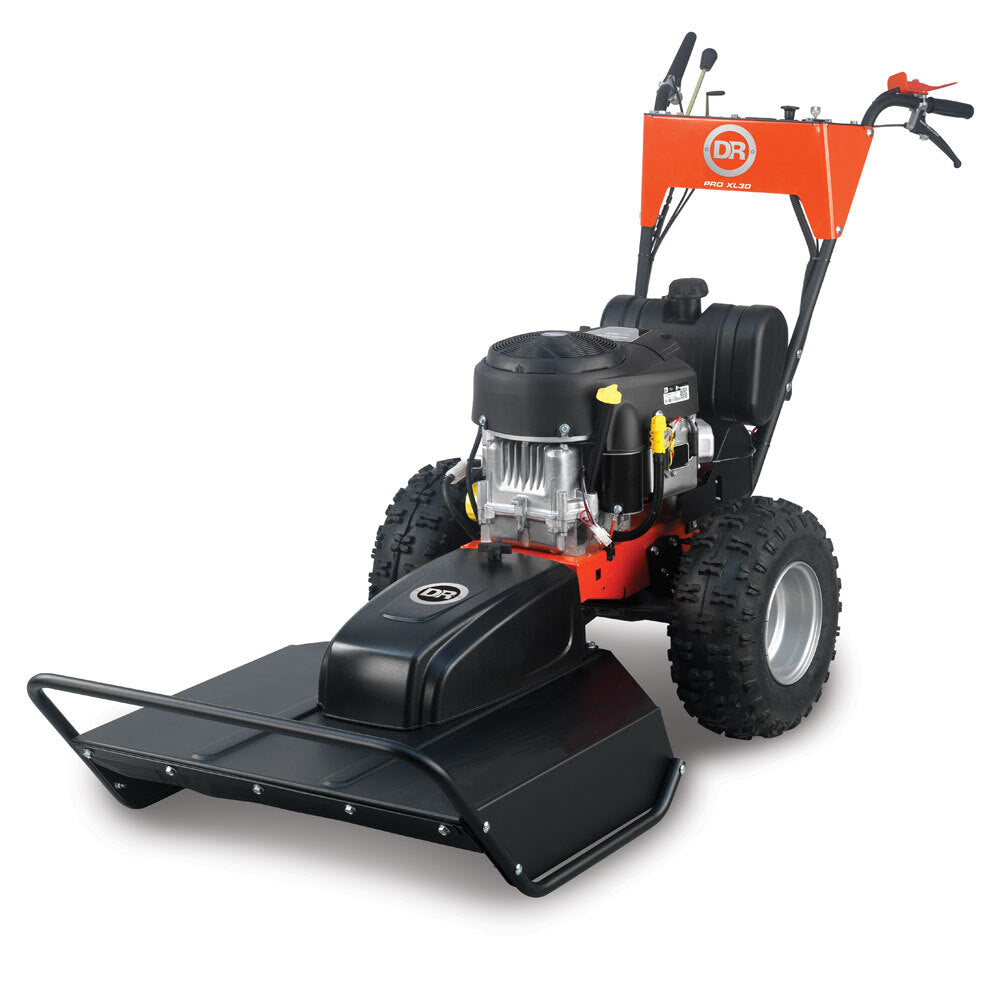

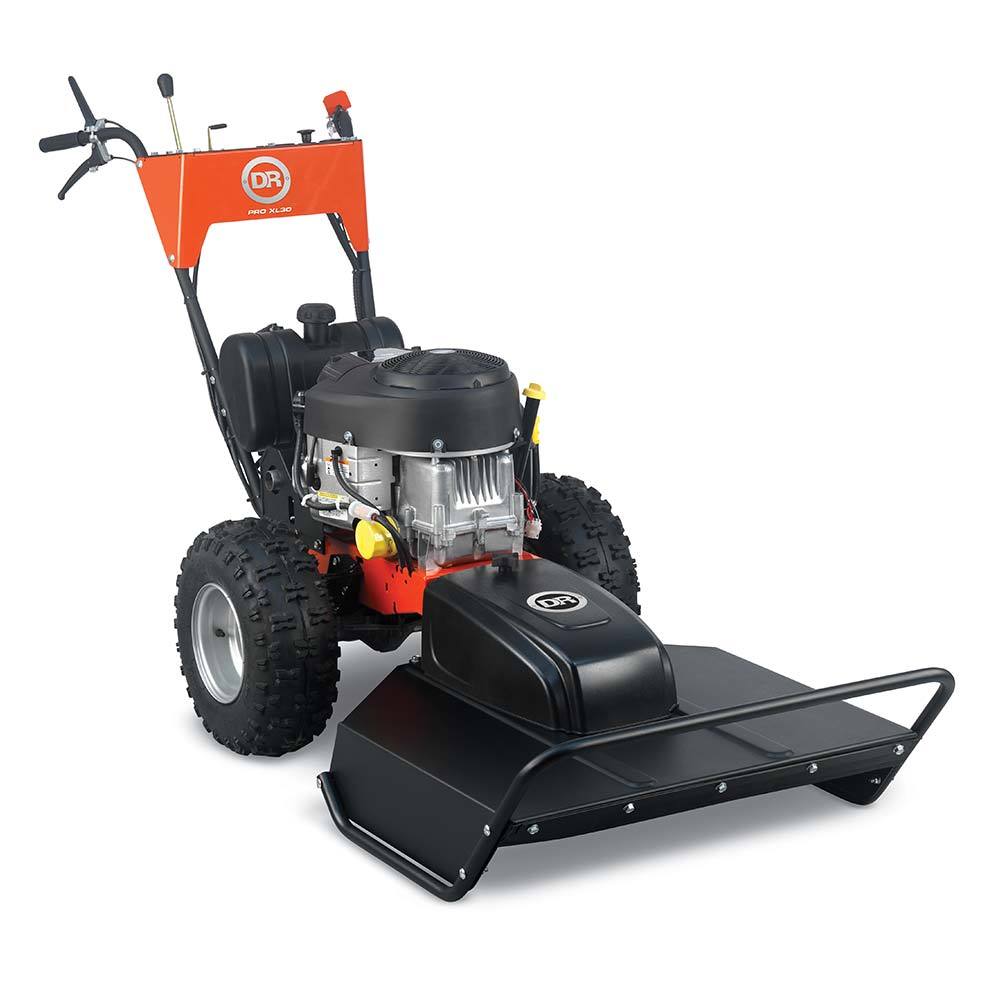

DR Power | Field and Brush Mower | PRO XL30 (20 HP) | Electric Start (AT47030BEN49)
All DR Power Products |
Twin-Cylinder Power AND Power Steering!
If you love power to spare in your equipment, you'll have more than enough with our PRO XL30, 20.0 HP model. This baby rocks a V-Twin Briggs Professional Series engine that delivers a massive 650cc of power to the extra-wide 30" mowing deck. This model is great for cutting extra tall and dense growth down to size with ease.
And, as with all of the 30" and 34" models (that have extra power, weight, and width), the PRO XL30 also features disc brakes for maximum traction on side slopes, as well as Power Steering for turning and maneuvering these larger machines.
Product Summary:
- 20 HP Electric-Starting Briggs V-Twin engine
- Power Steering: independent disc brakes on each wheel for super-easy turns
- 30" brush deck cuts mowing time by up to 15% (v. PRO 26).
- 3 forward speeds, 1 reverse
- Pivoting deck follows contours of ground
- Oil pump for better performance on hills
- Accepts all optional attachments
- See Features and Specs Tabs for more product details
Warranty Coverage
- Engine: 2 years residential; 1 year commercial
-
Machine: 2 years residential; 90 days commercial
FEATURES:
Power Steering is Easy on You!
Our disc brake system provides Power Steering. Each wheel is equipped with its own brake, operated by a hand lever. Just squeeze the brake on one side, and the mower will pivot easily around that wheel. You're in control...without wrestling the machine!
20 HP Briggs Twin-Cylinder Professional Series Engine
The legendary power, performance and durability of Briggs & Stratton® engines make them the obvious choice for our Walk-Behind Field and Brush Mowers. The PRO XL30 20 HP model features a Briggs Professional Series OHV twin-cylinder engine, with full-pressure oil pump (great for positive lubrication even on side slopes), a spin-off oil filter, 650 cc of displacement, (two) cast-iron cylinder sleeves, plus easy, turn-key electric-starting.
Assembled in the USA
Assembled in the USA using foreign and domestic parts. Ships direct from our Wisconsin factory.
30" Wide-Cut Pivoting Deck
The 30" deck is wide enough for fast field clearing, but is still very maneuverable. Unlike rigid, fixed decks found on some mowers, the DR deck pivots from side to side, allowing it to follow the contours of rough terrain. This feature minimizes scalping and improves traction.
Superior Mulching
Our decks are enclosed on 3 sides, so that cut material is chopped and re-chopped, reducing grass and brush to a fine mulch. This means less material is left behind in your field, and none of the windrows you get with side-discharging mowers.
Gear-Driven Transmission: Lock it in and Rip it up!
Unlike hydrostatic drives, the DR's geared transmission lets you lock in your ground speed, leaving your hands free to steer the machine across uneven terrain (instead of fussing with touchy throttle controls as you go). With 3 forward gears, you can choose a fixed pace that's right for you.
Big, Lugged Tires for Sure Traction
No other brush mower has tires like this. They're the biggest (18" x 6.5" x 8"), they have superior lugged treads that pull the mower through or over just about anything, and they are sealant filled...which means they're highly resistant to puncture. Tough as nails, apparently!
Custom-Made Blade Spindle
Made of 1.375" thick cast iron with oversized double sealed bearings, the blade spindle is integrated into the deck housing and reinforced for vibration-free performance. Designed to provide years of maintenance-free use (and abuse!).
Commercial Grade Electric Clutch
Our industry-leading, self-adjusting clutch is designed for easy access and quick swapping out of optional attachments. After 245 hours of testing we only used up 10% of the life of the clutch. There are no cables to stretch or idler pulleys to get out of adjustment.
Attachments Add 4-Season Versatility
Thanks to our quick-change coupling system, the DR's brush mowing deck can be swapped—in just minutes—with one of our optional PTO attachments: a 42" finish mower, a 30" snow thrower, a wood chipper, or a 42" grader blade. It's like owning 5 machines in one!
Built to Take a Beating
Field and brush mowing is a bruising business, and underbuilt mowers don't survive long out where the tough stuff grows. We frame our machines with heavy-duty, laser cut steel, and reinforce key stress spots so you get a product that will withstand years of use and abuse.
Adjustable Handlebars
A comfortable working height is important, especially when traversing rough terrain.
Ergonomic Controls
Both on the control panel and on the grips, all DR Field and Brush Mowers controls are designed to optimize operator comfort and minimize hand fatigue. Everything you need is right at your fingertips, so there is no walking around the mower to make adjustments.
Heavy-Duty Powder Coating
Our frames and decks are finished with a tough, durable powder coating that resists scratching and promotes long life.
Specifications:
| Clutch | |
|---|---|
| Clutch | Electric |
| Cutting | |
|---|---|
| Cutting Capacity | 6' High Grass; 8' High Weeds 3" Thick Saplings |
| Cutting Height | 3.5" |
| Cutting Width | 30" |
| Number of Blades | 1 |
| Dimensions | |
|---|---|
| Handlebar Height | High: 42" Low: 38" |
| Height | 48.2" |
| Length | 83" |
| Shipping Weight | 427 lbs |
| Weight | 325 lbs |
| Width | 32.5" |
| Blade Length | 30" |
| Shipping Dimensions | 62"L x 46"W x 50"H |
| Engine | |
|---|---|
| Air Filter | Dual-Element |
| Cooling Methods | Air Cooled |
| Displacement | 650cc |
| Engine Type | Briggs & Stratton Professional Series OHV |
| Horsepower | 20 |
| Lubrication | Full Pressure Pump w/Oil Filter |
| Make | Briggs & Stratton |
| Number Of Cylinders | 2 (Cast-Iron Sleeved) |
| Oil Capacity | 64oz |
| Oil Filter | Yes |
| Oil Type | SAE 30W HD |
| Pre Cleaner | Yes |
| Starting Type | Electric |
| Choke/Primer | Choke |
| Fuel_System | |
|---|---|
| Fuel Capacity | 2 Gallon |
| Fuel Shutoff Valve | Yes |
| Inline Fuel Filter | Yes |
| General | |
|---|---|
| Accepts Attachments | Yes |
| CARB Certified | No |
| Assembly | Yes |
| Wheels_Tires | |
|---|---|
| Brake | Yes |
| Dimensions | 18" X 6.5" X 8" |
| Number of Tires | 2 |
| Wheel Brake with Lock | Yes |
| Warranty | |
|---|---|
| Engine Warranty | 2 yrs residential use, 1 yr commercial use |
| Machine Warranty | 2 yrs residential use, 90 days commercial use |
| Material | |
|---|---|
| Deck | 12 Gauge, Pivotable |
| Frame | 12 Gauge |
