(44067.ULT) Ultra-Tow Topwind A-Frame Jack | 3000-Lb. Lift Cap.
This premium Ultra-Tow® Topwind A-Frame Round Tube Jack delivers the lifting performance essential for safety and dependability. The jack has a sturdy 2 1/4in. outer tube diameter. Jack foot (Item#s 44082, 44083 and 44085, sold separately) provides needed ground support. 10 1/2in. retracted length; 24 1/2in. extended length

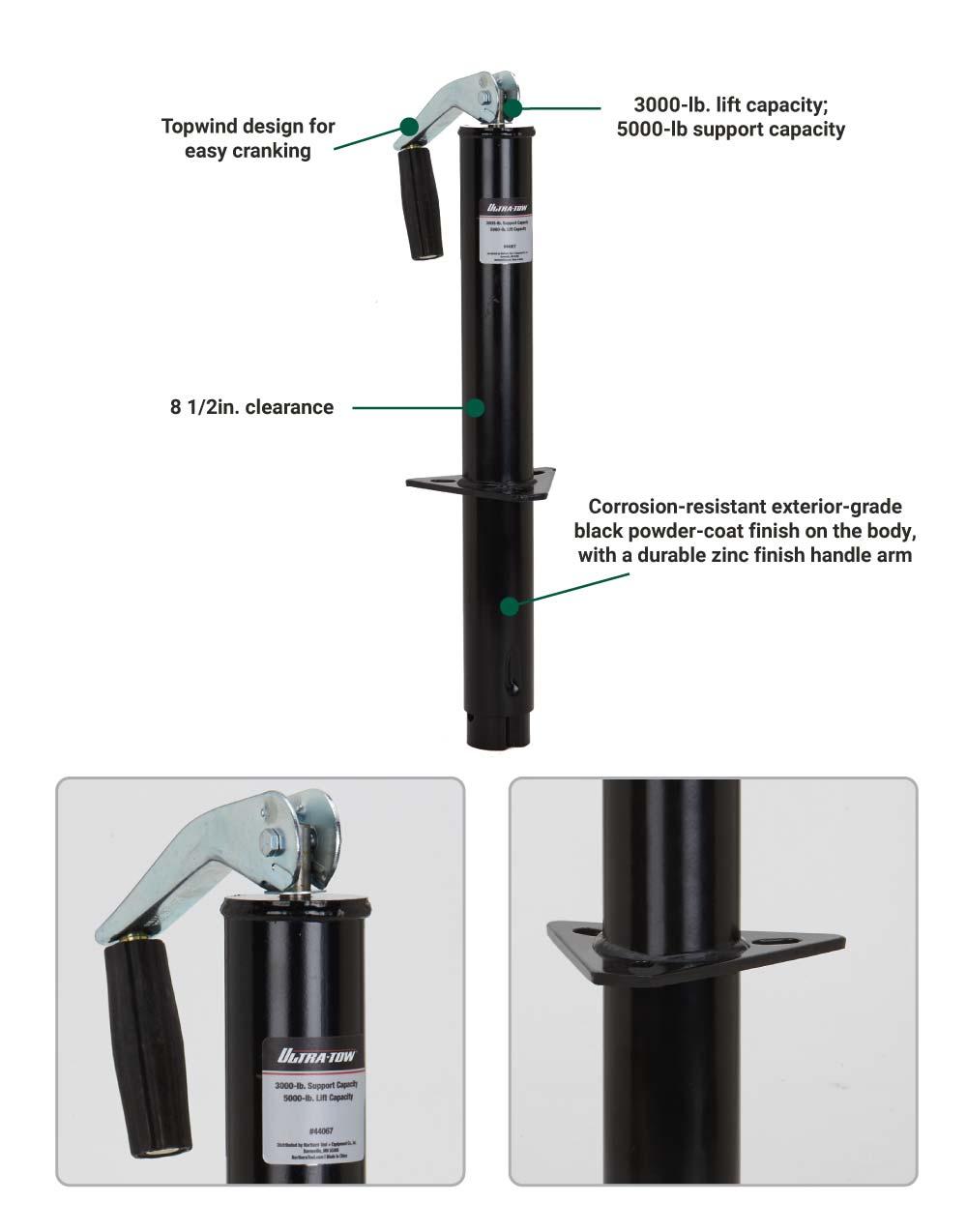

Features
- Includes: (1) A-frame jack
- Corrosion-resistant exterior-grade black powder-coat finish on the body, with a durable zinc finish handle arm
- 3000-lb. lift capacity; 5000-lb. support capacity
- 8 1/2in. clearance
- Topwind design for easy cranking

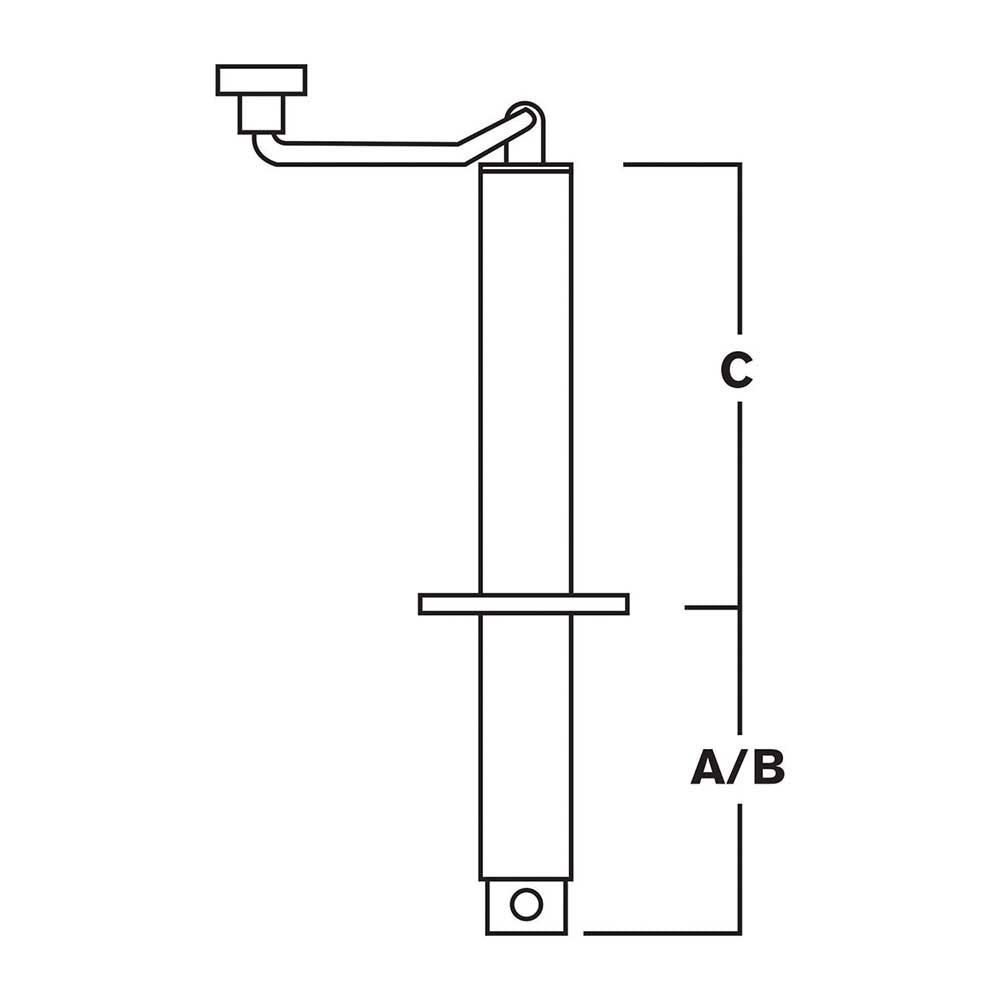

- Measurements: A=Retracted (10 1/2in.), B=Extended (24 1/2in.), C=Clearance (8 1/2in.) (see corresponding diagram)
Specifications
|
Equipment Type |
A-frame Trailer Jack |
| Clearing Height | 8.5 In. To Jack Top |
| Dry Weight | 10.5 Lbs |
| Ground Support | N/a |
| Jack Type | A-frame (topwind Crank) |
| Length | 15 In. Travel; 10.5 In. Retracted; 24.5 In. Extended |
| Lift Range | 3,000 Lbs |
| Mounting | A-frame |
| Support Capacity | 5,000 Lbs |
