  • (44070.ULT) Ultra-Tow Snap Ring Sidewind Swivel Jack | 2000-Lb. Lift Cap

    Ultra-Tow

    • $93.30

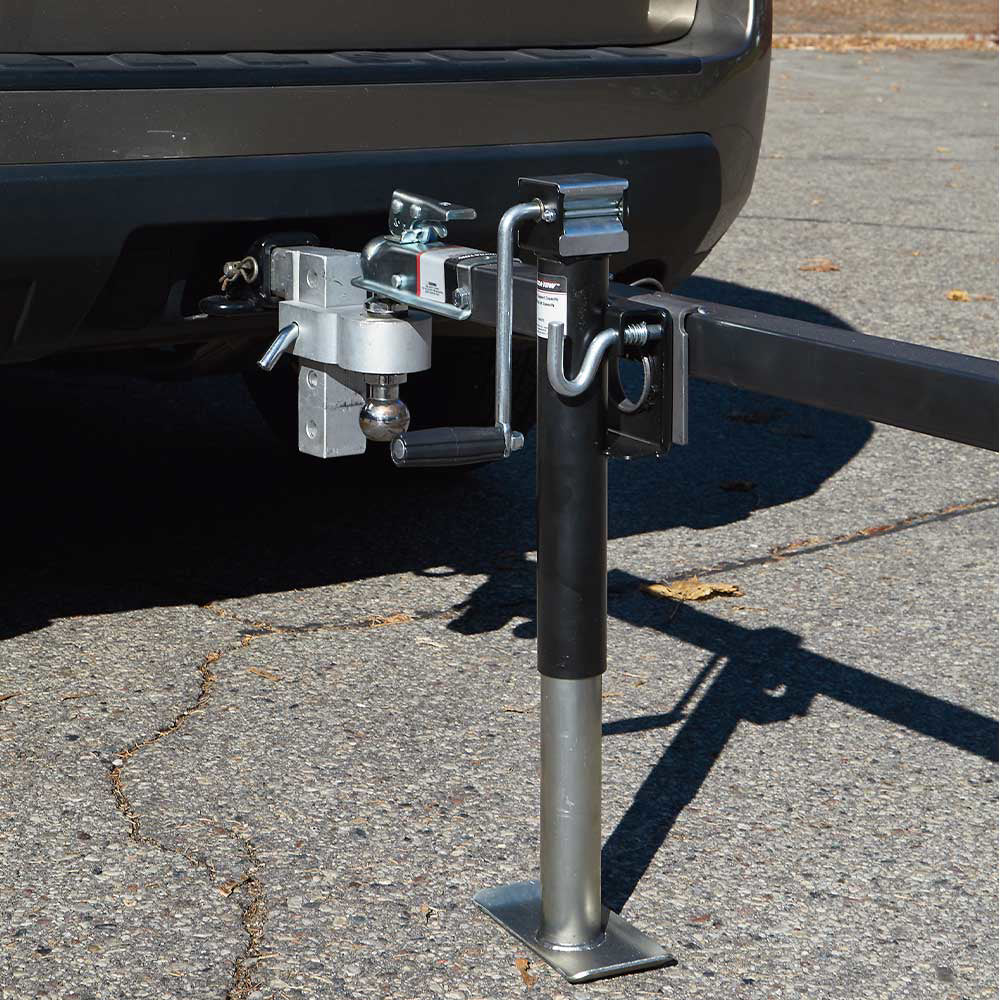

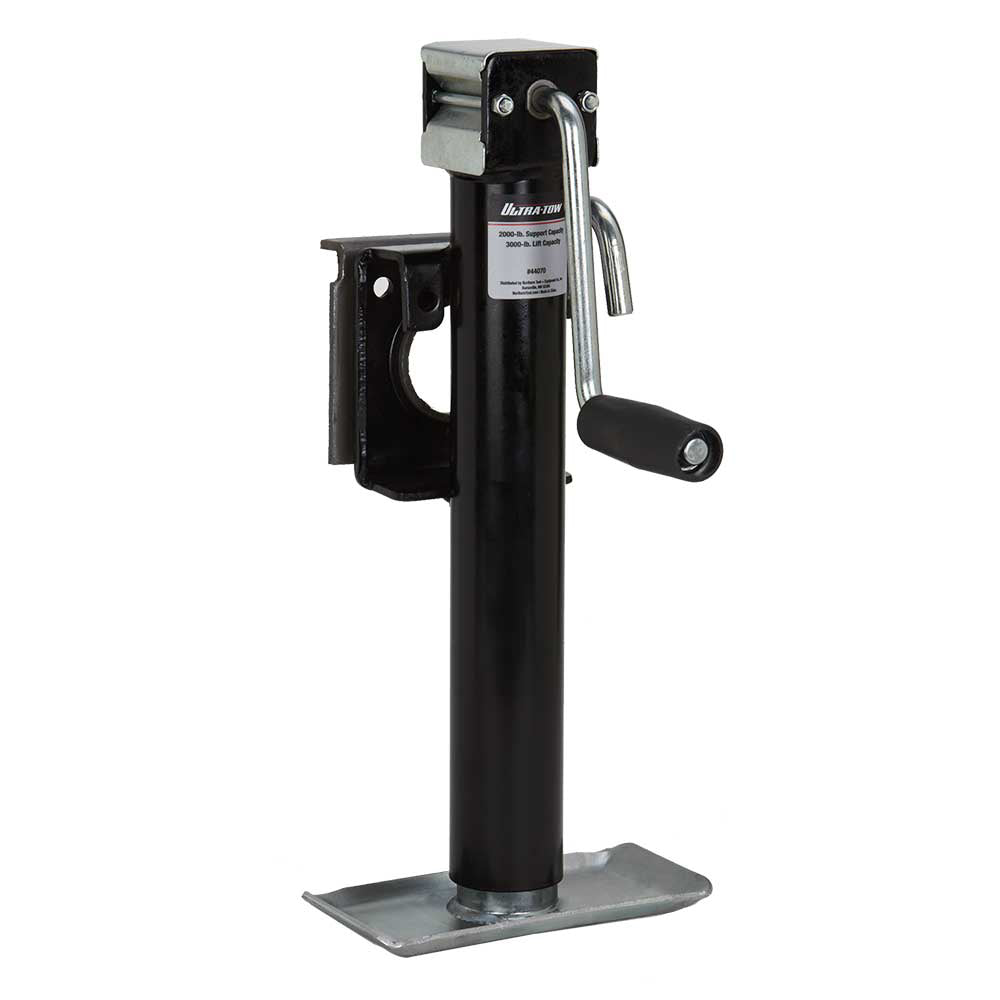

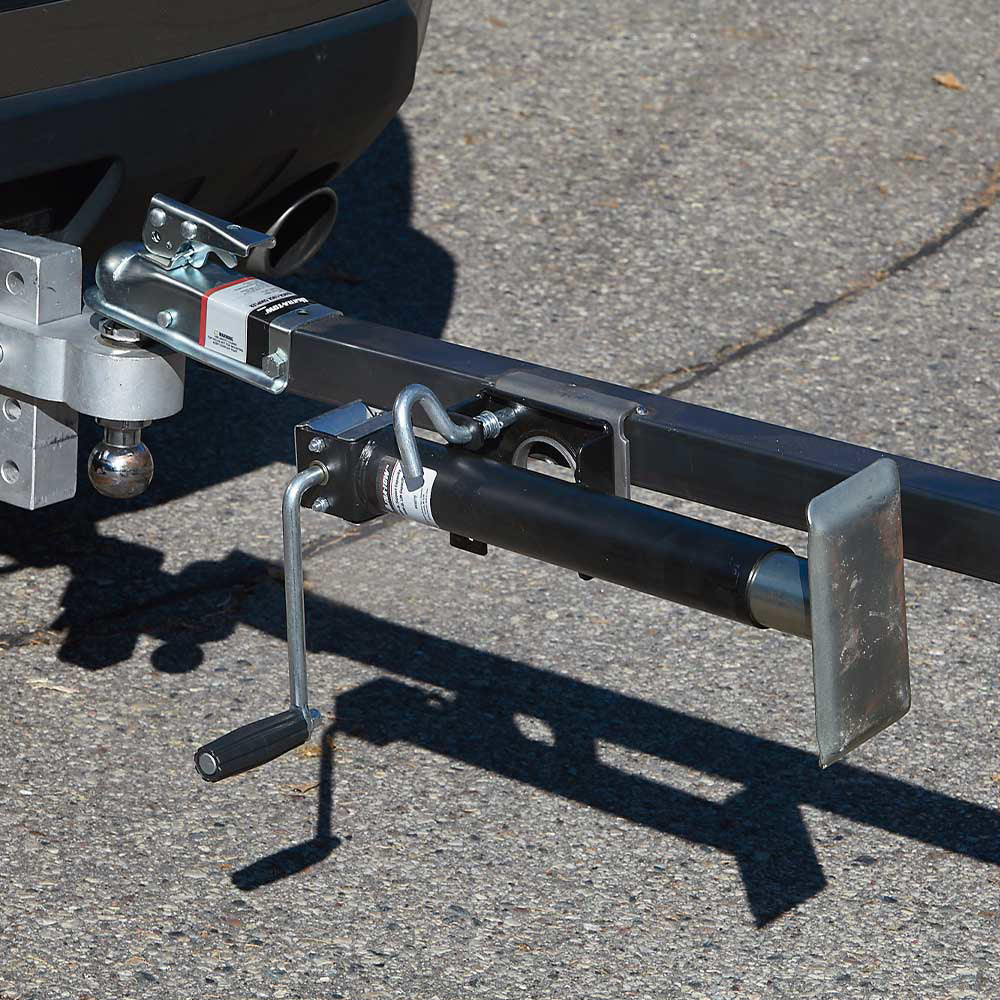

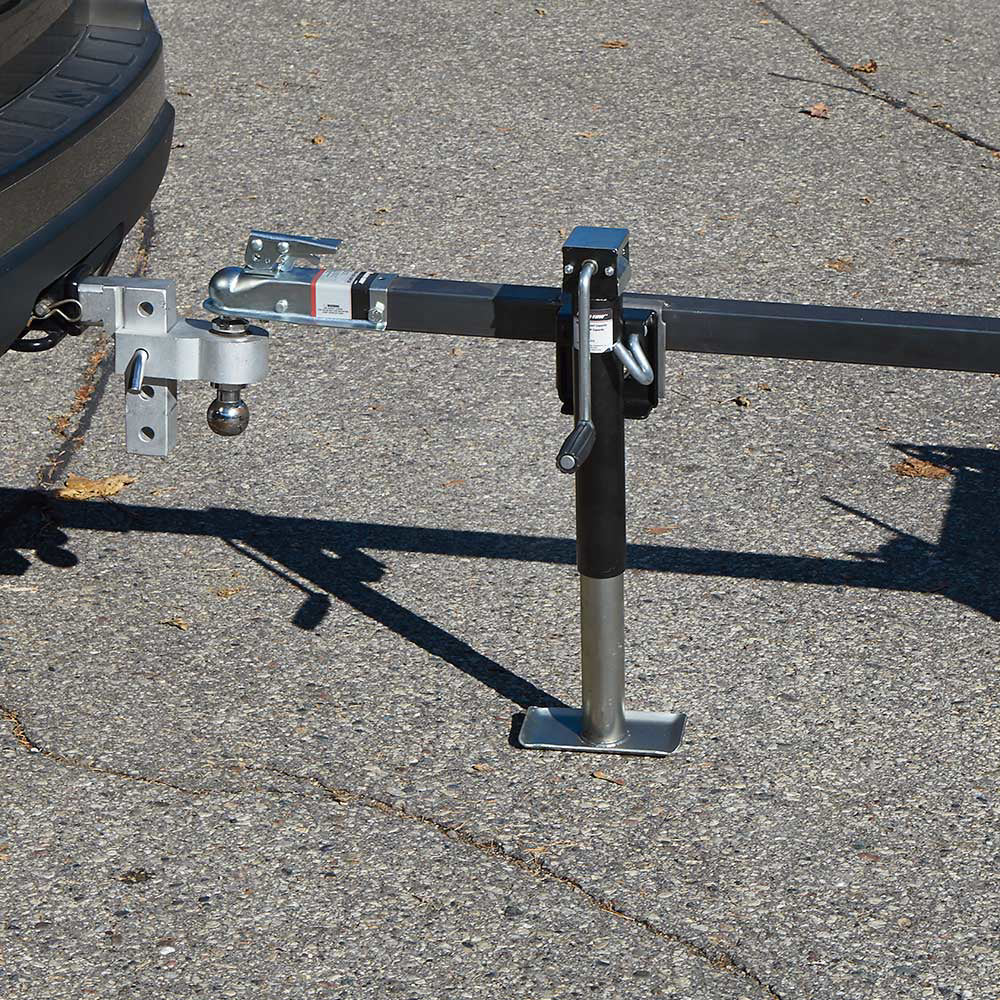

    This Ultra-Tow® Snap Ring Sidewind Swivel Jack is a reliable, easy-to-use 2 1/4in. dia. tube jack with a deep-seated snap ring that provides side load support. The large 1/2in. pull pin activates the swivel mechanism, allowing the jack to swing up and out of the way when not in use. 2000-lb. lift capacity; 3000-lb. support capacity. 11 1/4in. retracted length; 21 1/4in. extended length.

    Features

    • Includes: (1) Snap ring swivel jack
    • Sidewind styling with a large, comfortable grooved handle that makes cranking almost effortless
    • Grease zerk is built in for easy greasing of the jack
    • 3 3/4in. x 7 1/2in. sand foot is welded on for stability
    • Durable, corrosion-resistant exterior-grade black powder-coat finish on the outside tube with zinc finish inner tube and foot
    • Weld-on design for a permanent solution
    • 6 in. clearance
    • Measurements: A=Retracted (11 1/4in.), B=Extended (21 1/4in.), C=Clearance (6in.) (see corresponding diagram)

    Specifications

    Equipment Type
    Swivel Trailer Jack
    Clearing Height 6 In. To Jack Top
    Dry Weight 14.9 Lbs
    Ground Support Foot Pad
    Jack Type Round Tube (sidewind Crank)
    Length 10 In. Travel; 11-1/4 In. Retracted; 21-1/4 In. Extended
    Lift Range 2,000 Lbs
    Mounting Weld-on
    Support Capacity 3,000 Lbs

    If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
