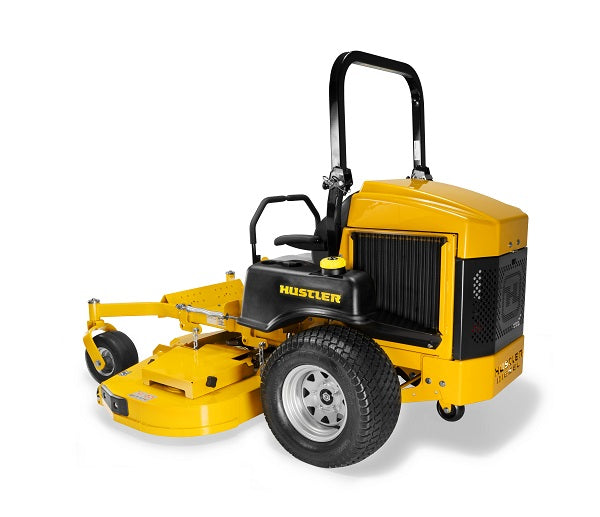

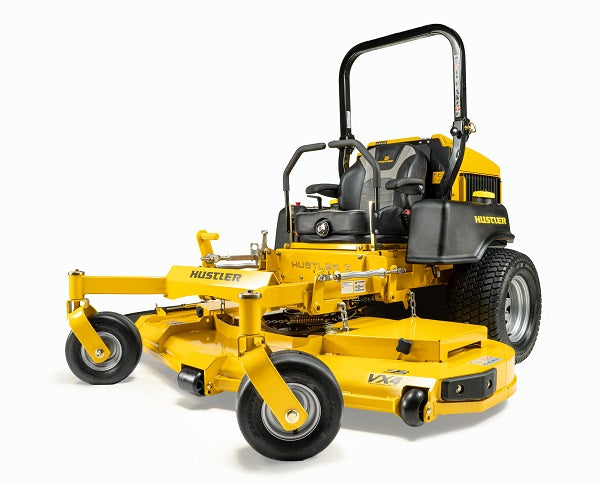

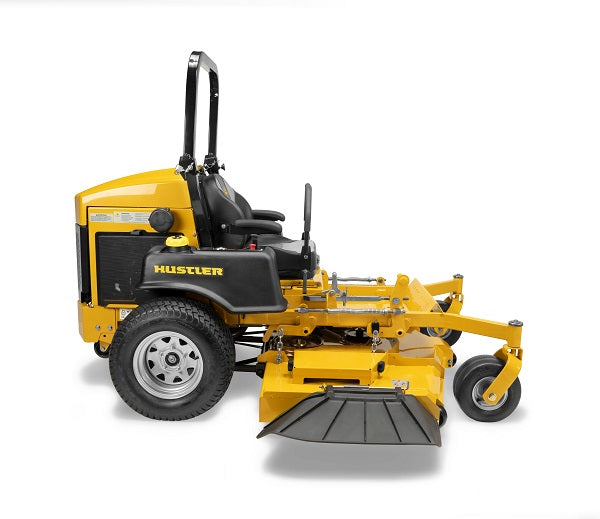

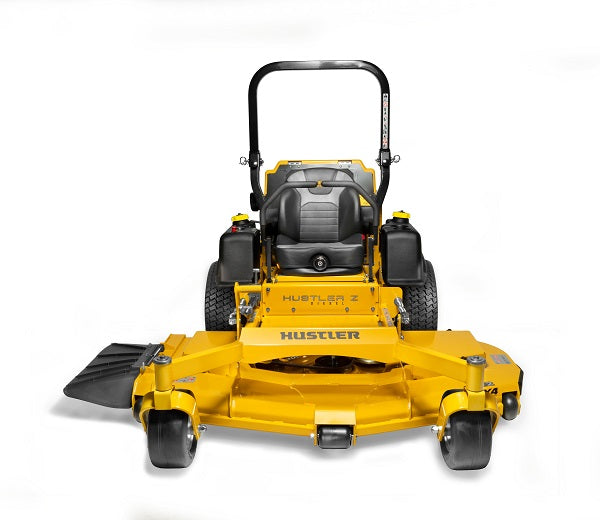

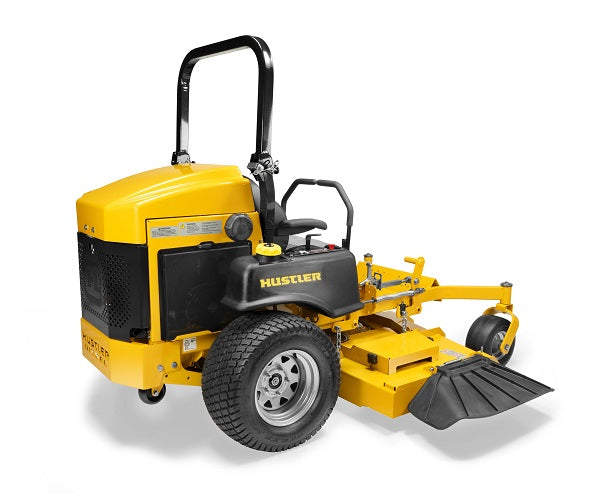

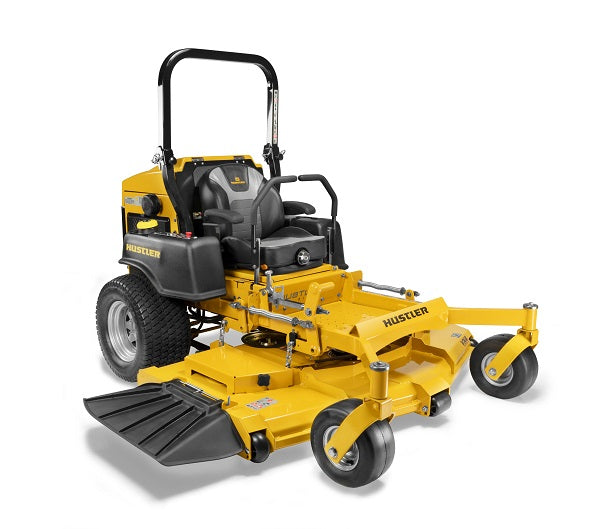

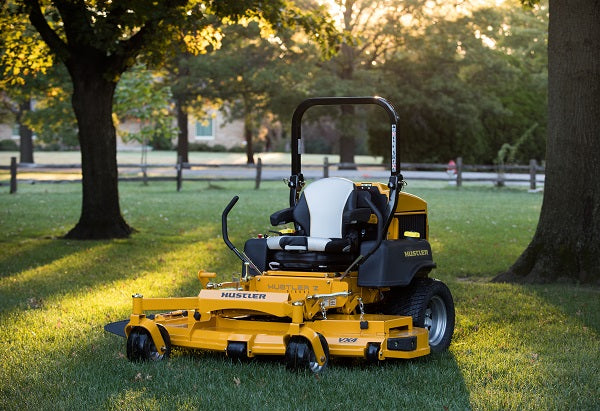

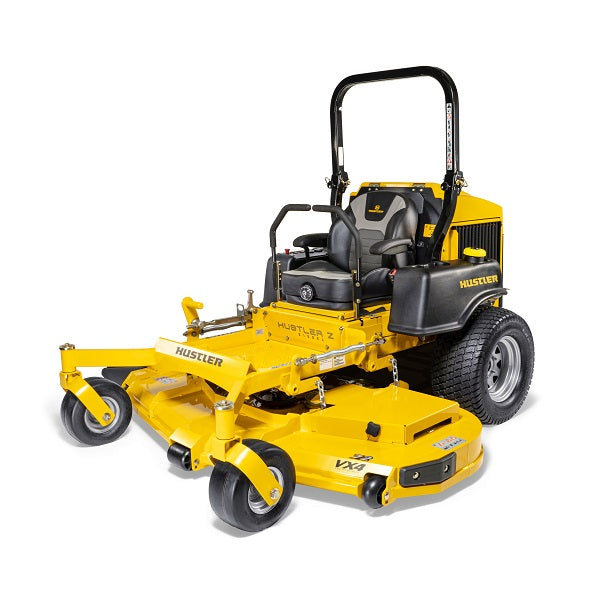

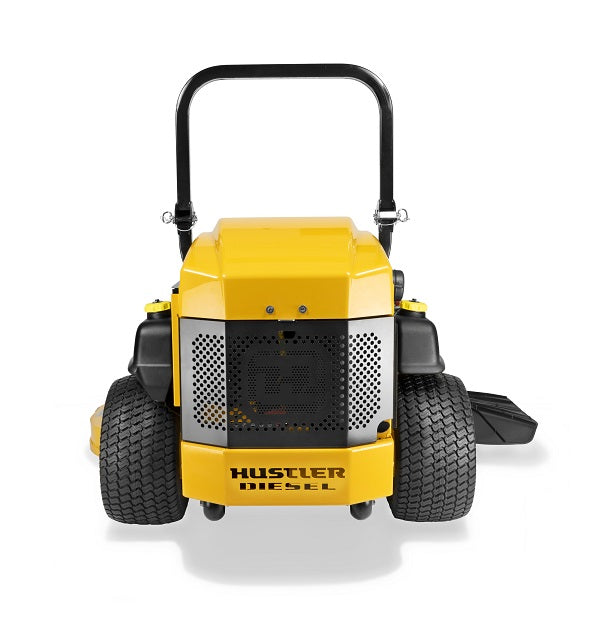

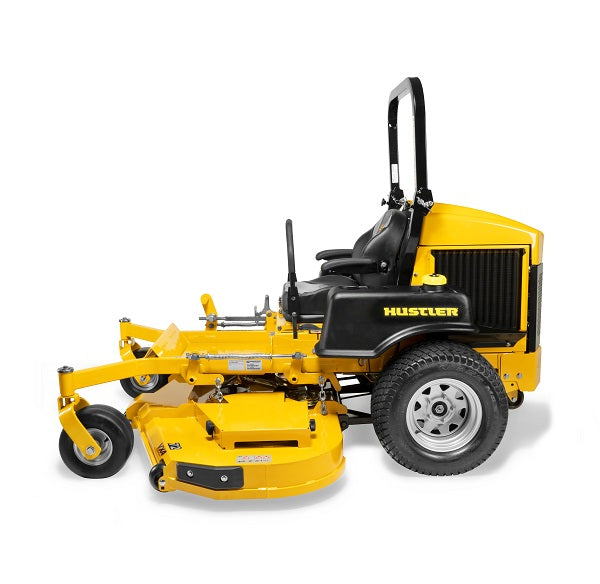

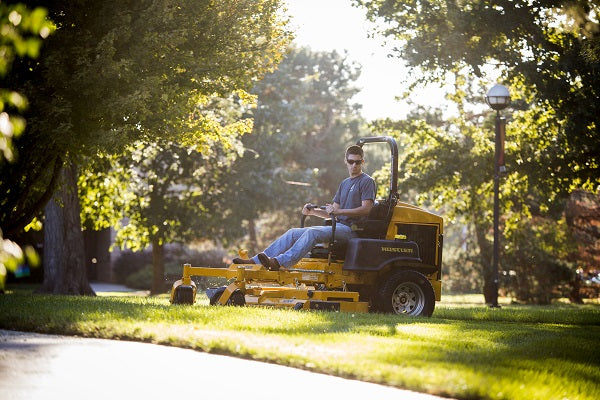

Hustler Z Diesel 72" Commercial Zero-Turn Mower w/ Perkins Diesel (25HP)

Hustler Turf Equipment

$19,199.00
Save $2,718

All Hustler Lawn Mowers

Warranty

5 Year / 1200 Hour (First 2 Years No Hour Limit)
3 Year Limited Engine

Literature

Diesel Power to do Any Job

The Hustler® Diesel Z gives you all the great features of a Hustler product paired with fuel-economy of a diesel.

60” or 72” side or rear-discharge VX4® deck – engineered to move more grass at high-speeds while maintaining cut-quality
Heavy-duty fabricated frame – unmatched durability
Exclusive SmoothTrak™ steering – responsive, precise control
Patented automatic park brake
I3M suspension seat with adjustable armrests and 3-inch travel range
Patented belt drive system - provides up to three times longer belt life
Clean, compact, service-friendly design

Hustler Turf Accessory Compatibility Chart
Hustler Z Diesel Accessories
Fabric Side Catcher 3.5 bushel	943654
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator)	GCSS
Jumbo Aluminum Side Catcher 5 Bushel (Accelerator)	GCSSXL
Mulching Kit 72"	124316
Flex Forks Kit (cannot use with Bagger installed)	116281
Electric Deck Lift	123739
Beacon Kit	110467
Flasher Kit	124554
Hitch Kit	109920
Light Kit	110153
Sand Kit 72"	124139
Steering Lever Extension Kit	122760
Stripe Kit 60", 72" Deck	116842
Rear Anti-Scalp (Dual) 72" Deck	113937
Rear Anti-Scalp (Single) 60", 72" Deck	113910
Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire)	607444
Michelin X-Tweel Turf 24 x 12N12 (1 tire)	607446
Semi-Pneumatic Tire - tire/wheel assembly 13 x 6.5 x 6	607964

__________________________________________________________________

Specifications

Engine
Engine Manufacturer	Perkins
Engine Horsepower	25
Displacement	1130cc
Cooling	Liquid-cooled, direct-drive, mechanical cooling fan
Air Cleaner	Heavy-Duty Canister
Engine Warranty	3 year
Drive System
Type	Dual Hydrostatic
Transmission	Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors
Hydraulic Lines	Stainless Steel Parker Seal-Loc Technology
Reservoir Capacity	1.3 gallons
Hydraulic Cooling	Oil Cooler w/ 8" fan
Fuel Capacity	14.4 gal.
Ground Speed (Fwd)	Up to 11.5 mph
Parking Brake	Integrated with steering levers
Deck
Cutting Width	72"
Cutting Height	1" to 5.5"
Deck Depth	5.5"
Deck Lift	Foot Operated
Number of Blades	3
Blade Length	24.50"
Blade Tip Speed	18,800
Spindles	Ductile cast iron with steel shaft and sealed ball bearings
Deck Engagement	Electric PTO Clutch
Deck Material	7 gauge welded steel
Spindle Mounts	Reinforced 7 gauge stamped disc
Impact Trim Area	Front of deck: 11 ga. Formed Bump Bar, Side of deck: 1.5" x .375" steel bar
Construction
Frame	1.5" X 3" steel tubing
Front Axle	Fabricated with tapered roller bearings
Front Caster Wheel	Tapered wheel bearings and debris cap
Front Caster Fork	Fabricated 1/2" steel
General
Seat	I3M Suspension Seat
Cup Holder	Yes
Dimensions
Front Tire (Inches)	13 x 6.5-6
Drive Tire (Inches)	24 x 12-12
Weight (lbs)	1711
Height (Inches)	69
Length (Inches)	90.4
Width w/ Chute Up (Inches)	78
Tire-to-Tire Width (Inches)	56
Productivity (Acres Per Hour)	6.68
Warranty
Warranty	5 Year / 1200 Hour (First 2 Years No Hour Limit)

If you have any questions about this 72" diesel zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
