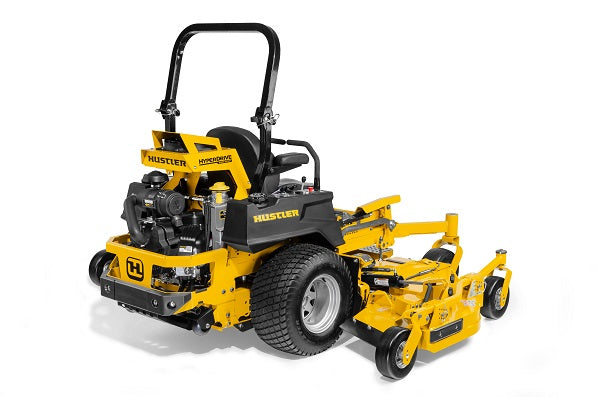

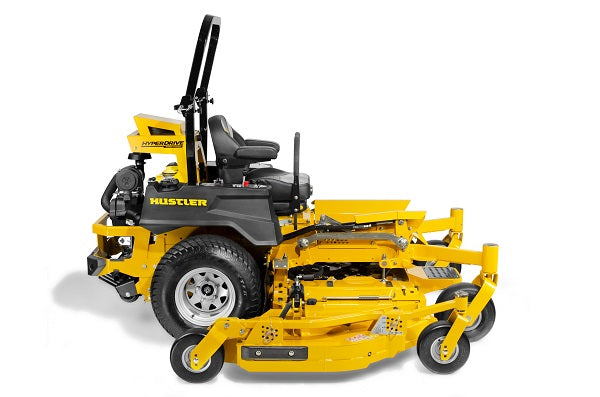

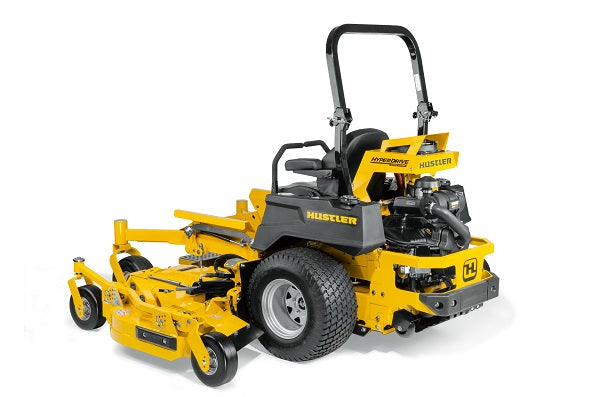

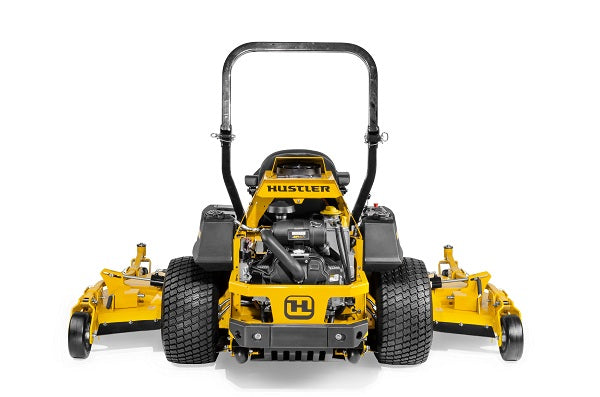

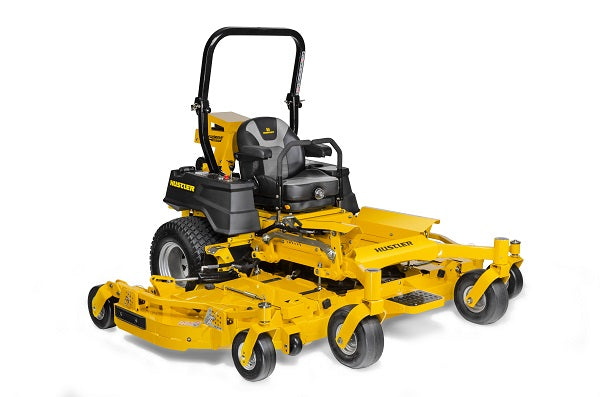

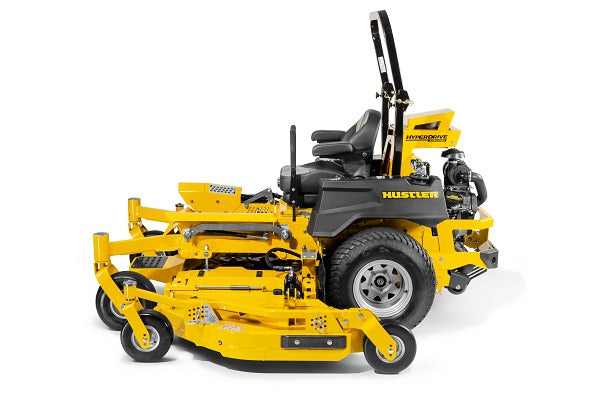

Hustler Super 104 Commercial Zero-Turn Mower w/ Vanguard Big Block EFI w/ Oil Guard (37HP)
All Hustler Lawn Mowers |
Warranty
|
Literature |
104 Inch Width Of Cut Makes Big Jobs Easy.

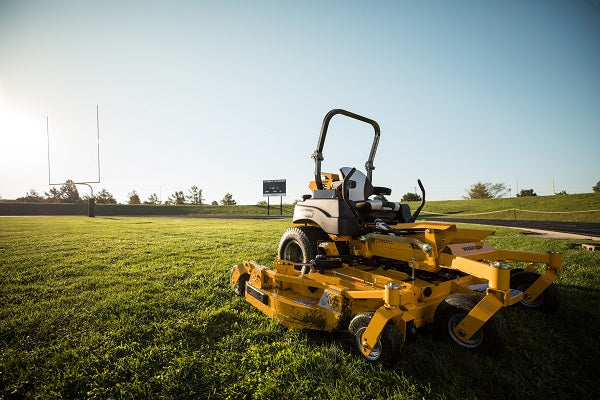

Hustler's Super 104™ can easily handle acres of work. Offering a 104" width of cut, zero-turn precision and up to an impressive 11 mph speed, this machine is in a class by itself.
- HyperDrive® Hydro System: Features industrial-grade pumps and motors to handle tough jobs and long days.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Hydraulic Deck Height Adjustment: Raising and lowering your cutting height has never been easier.

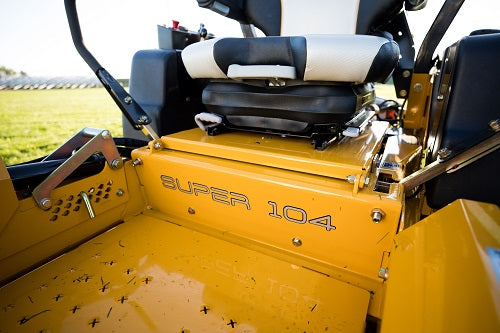

- I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.

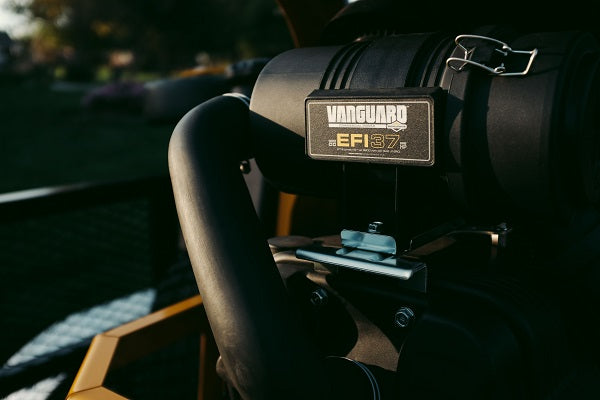

- Commercial-Grade Engines: Vanguard Big Block™, Vanguard Big Block™ EFI with Oil Guard, Kawasaki FX1000, and FX1000 EFI engine options.

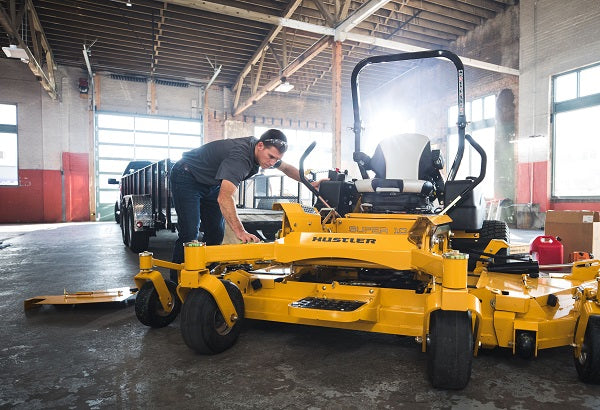

- Hydraulic Wings: Easily raise and lower wings for transporting.

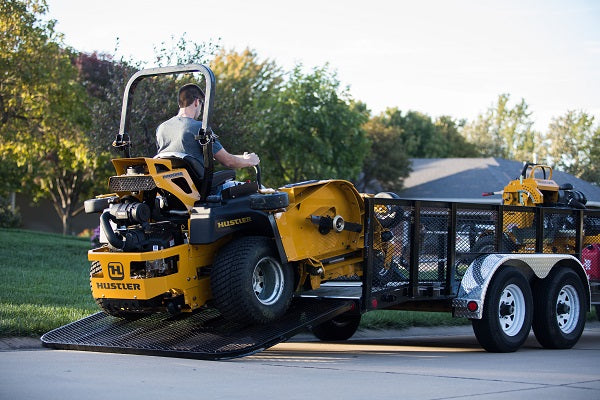

- Wings fold to 80": 80" transport width fits most trailers for easy travel between jobs.

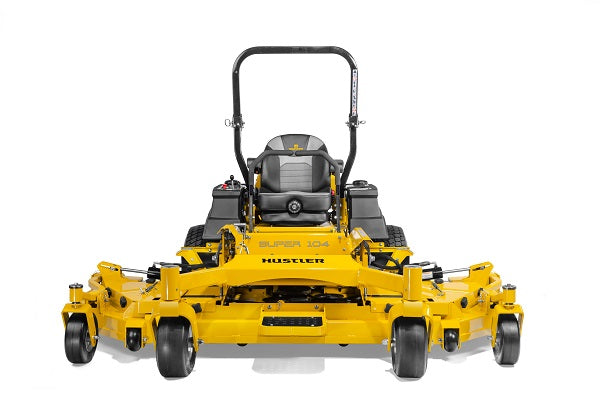

- 104" Width of Cut: The widest and most productive of any commercial zero-turn mower.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Super 104 Accessories |
|
| Mulch Kit |
125874 |
| Flex Forks Kit (main frame) |
606843 |
| Flex Forks Wing Kit (must order 123618 as well) |
606671 |
| Wings Support Kit | 123618 |
| Premium Anti-Scalp Kit | 117692 |
| Beacon Kit | 110467 |
| Flasher Kit | 124554 |
| Steering Extension Kit | 122275 |
| Hitch Kit | 123915 |
| Front Light Bar Kit | 128867 |
| Run Flat Wheel assembly 15 x 6-6 Black | 607689 |
| Michelin X-Tweel Turf Tire XL 26 x 12N12 | 607445 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Vanguard Big Block EFI Oil Guard |
| Engine Horsepower | 40 |
| Displacement | 993c |
| Cooling | Air Cooled |
| Air Cleaner |
Heavy-duty air canister |
| Engine Warranty | 5-year warranty |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Danfoss DDC20 pumps with Parker TG wheel motors |
| Hydraulic Lines | Stainless Parker Seal-Loc Technology |
| Reservoir Capacity | 3 gallons |
| Hydraulic Cooling | Oil Cooler w/ 9" fan |
| Fuel Capacity | 12 gal. |
| Ground Speed (Fwd) | Up to 11 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 104" |
| Cutting Height | 1" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Hydraulic powered |
| Number of Blades | 5 |
| Blade Length | 23.86"-20.50" |
| Blade Tip Speed |
Wing Decks: 15,800; Center Deck: 15,500 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
11 gauge welded steel
|
| Spindle Mounts | Reinforced 7 ga doubler |
| Impact Trim Area | 1.5" x .375" steel bar |
Construction |
|
| Frame | 1.5" X 3" steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2" steel |
General |
|
| Seat | I3M Suspension Seat (adjustable armrests & back) |
| Cup Holder | Yes |
Dimensions |
|
| Front Tire (inches) | 15 x 6-6 |
| Drive Tire (inches) | 26 x 12-12 |
| Wing Tire (inches) | 11 x 4 Semi-Pneumatic |
| Weight (lbs) | 2500 |
| Height (inches) | 54" (71.5" w/ ROPS) |
| Length (inches) | 95.5" |
| Width w/ Chute up (inches) | 106.1 wings down, 80" wing up at gauge wheel, 72.5" deck base |
| Tire-to-Tire Width (inches) | 60.3 |
| Productivity (Acres Per Hour) | 9.24 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
If you have any questions about this Hustler Super 104” zero-turn mower give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
