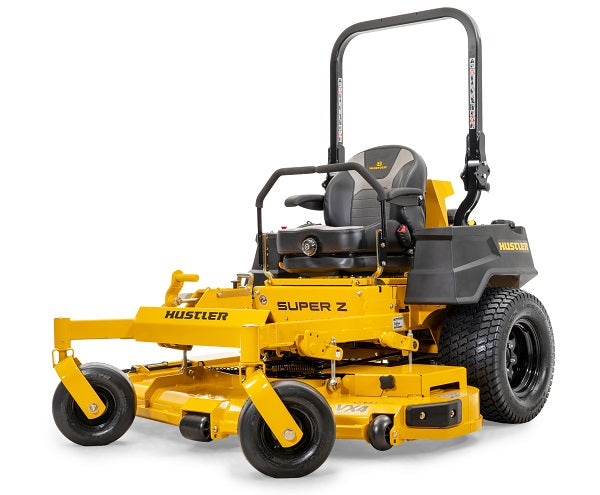

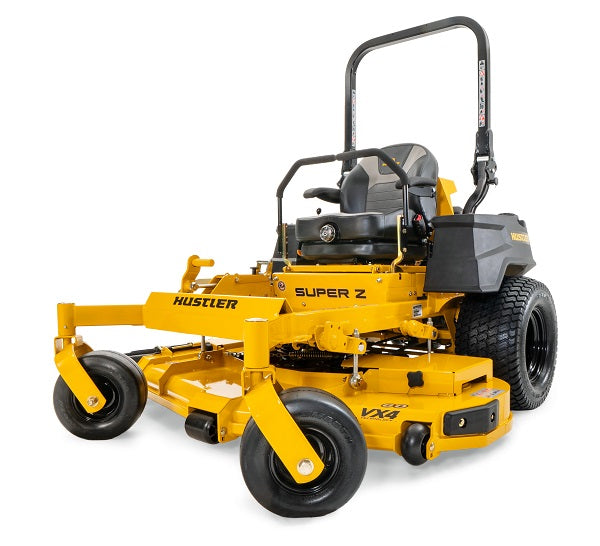

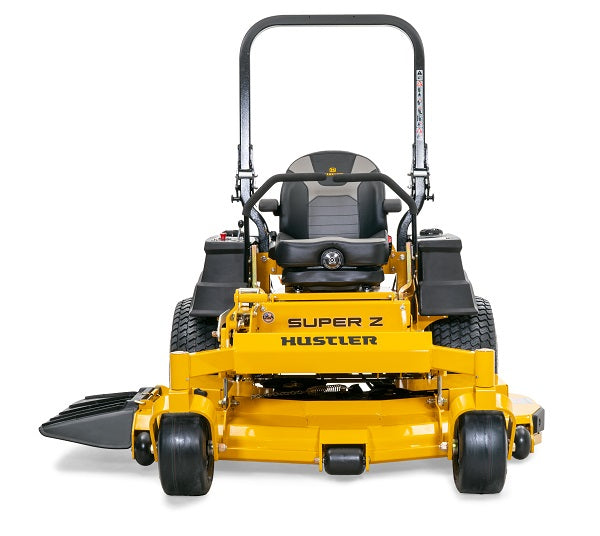

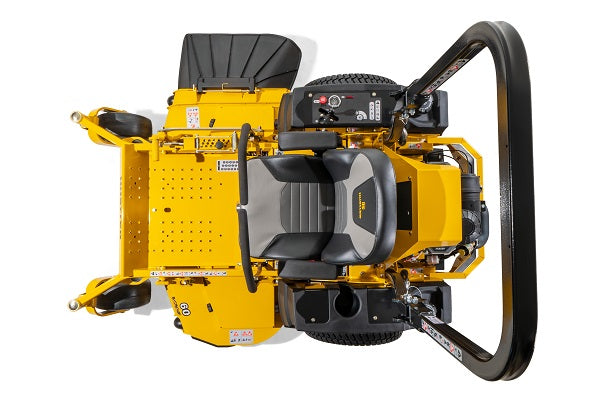

Hustler Super Z Rear Discharge 60" Commercial Zero-Turn Mower w/ Kawasaki FX1000 (35HP)
All Hustler Lawn Mowers |
Warranty
|
Literature |
Features Hustler's VX4 Deck, Heavy-Duty Hydraulic
The Super Z® stands apart with Hustler’s acclaimed VX4® deck technology proven to cut and disperse grass more quickly and efficiently regardless of conditions.
- VX4® Deck: Fabricated 7 ga. steel deck engineered to move more grass at high speeds while maintaining cut quality.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”- 5.5” with your foot.
- I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Large Fuel Capacity: Large 11.7 US gal. fuel tank for all-day mowing.
- Easy Serviceability: Flip-up seat pan, removable floor pan, and vented pulley covers for easy and simple maintenance.
- Unmatched Hydraulics: Heavy-duty hydraulics deliver more power, and torque than many other machines.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Super Z Accessories |
|
| Mulching Kit 60" RD |
122555 |
| Flex Forks Kit (cannot use with Bagger installed) |
606696 |
| Front Light Bar Kit |
128867 |
| Side Light Bar Kit (must purchase 128867 to add side light) |
128869 |
| Beacon Kit | 110467 |
| Flasher Kit | 124554 |
| Hitch Kit |
123915 |
| Steering Lever Extension Kit |
122760 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | 607444 |
| Michelin X-Tweel Turf Tire XL 26 x 12N12 | 607445 |
| Semi-Pneumatic Tire - tire / wheel assembly 13 x 6.5 x 6 | 607964 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX1000 |
| Engine Horsepower | 35 |
| Cooling | Air Cooled |
| Air Cleaner | Heavy Duty Canister |
| Engine Warranty | 5 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear 21cc PY pumps with Parker TG wheel motors |
| Hydraulic Lines | Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity | 3 gallons |
| Hydraulic Cooling | Oil Cooler w/8" fan |
| Fuel Capacity |
11.7 gal. |
| Ground Speed (Fwd) | Up to 14 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 60" |
| Cutting Height | 1" to 5.5" |
| Deck Depth | 5.5" |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 20.50" |
| Blade Tip Speed | 18,600 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5" x .375" steel bar |
Construction |
|
| Frame | 1.5" X 3" steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2" steel |
General |
|
| Seat | I3M Suspension Seat |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) | 24 x 12-12 |
| Weight (lbs) | 1566 |
| Height (Inches) | 46.8, 72.5 w/ ROPS up |
| Length (Inches) | 91.5 |
| Width w/ Chute Up (Inches) | 66 |
| Tire-to-Tire Width (Inches) | 57 |
| Productivity (Acres Per Hour) | 6.78 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
If you have any questions about this Hustler Super Z rear-discharge 60" mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
