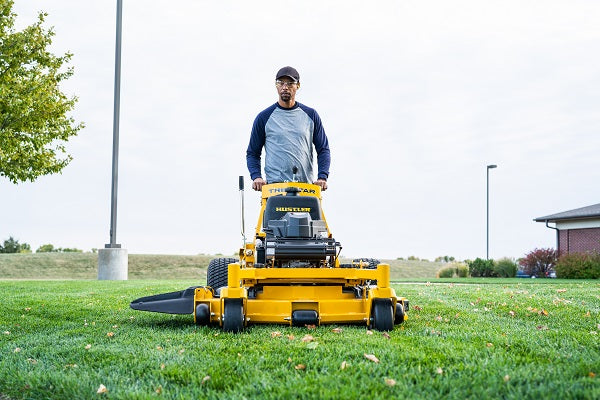

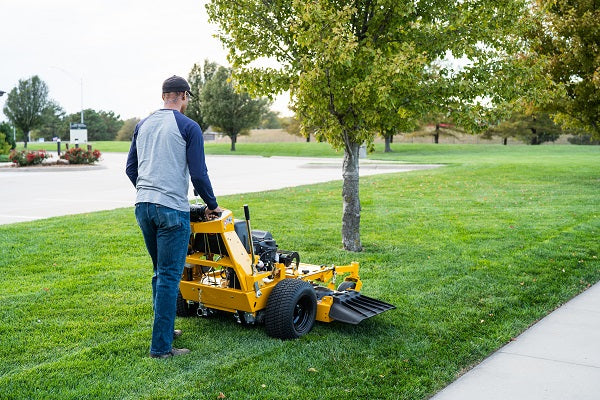

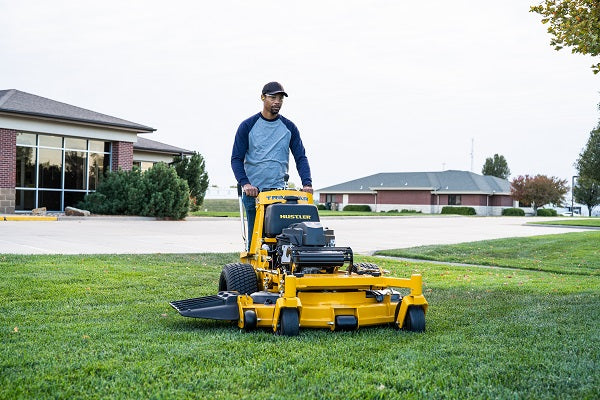

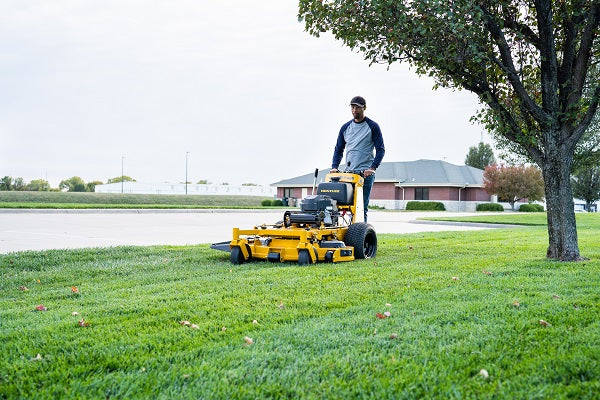

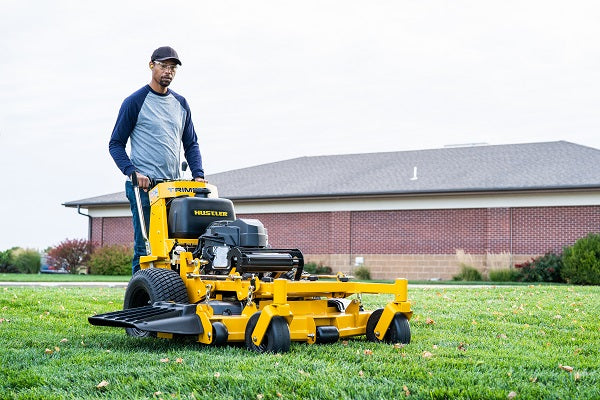

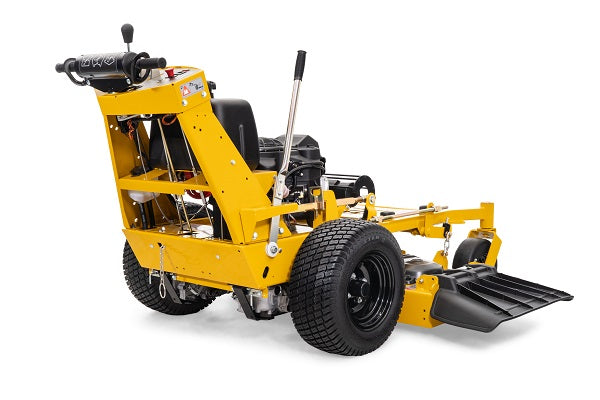

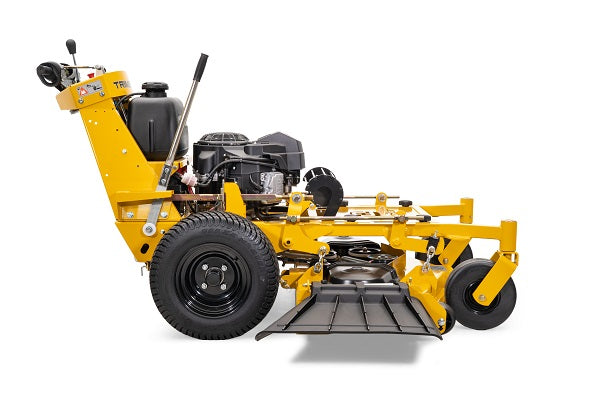

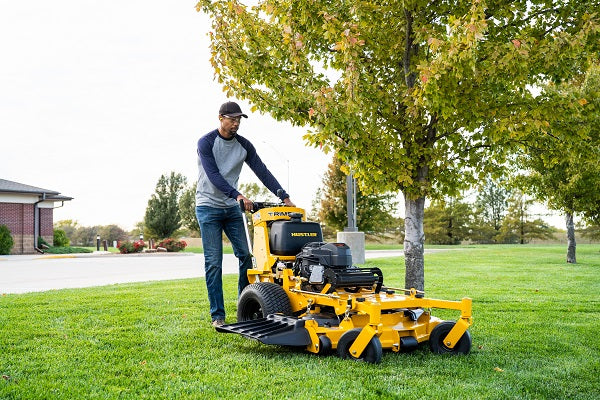

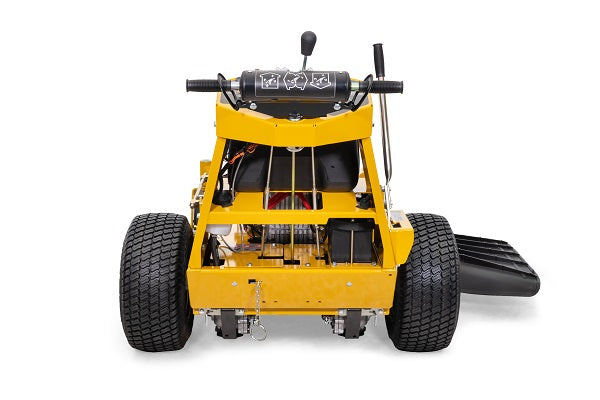

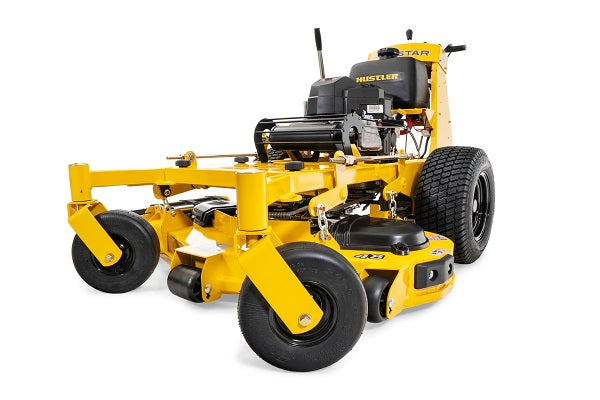

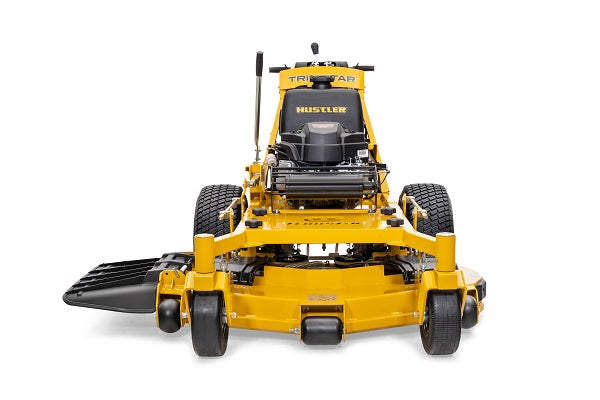

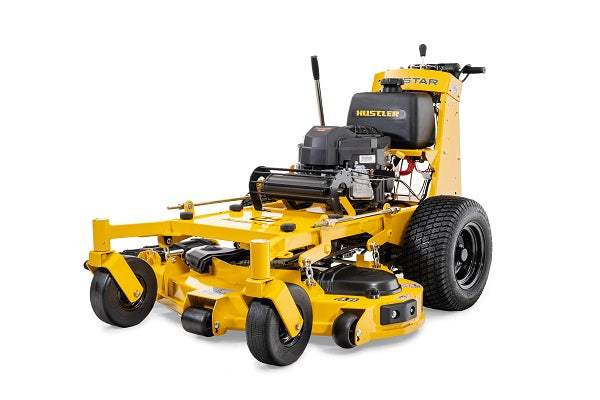

Hustler TrimStar 36" Commercial Zero-Turn Mower w/ Kawasaki FS541 (15HP)
All Hustler Lawn Mowers |
Warranty
|
Literature |

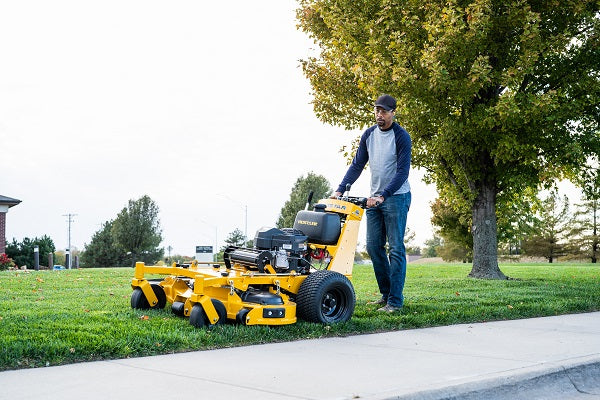

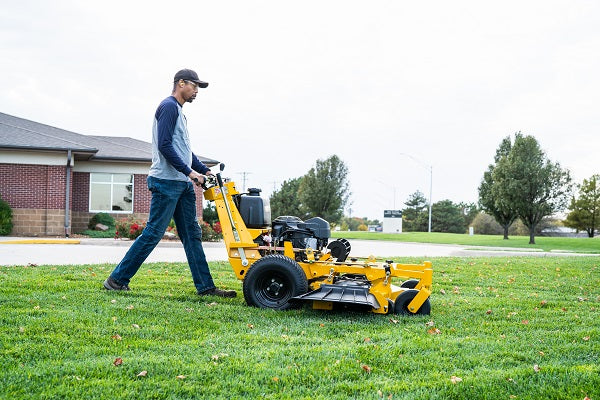

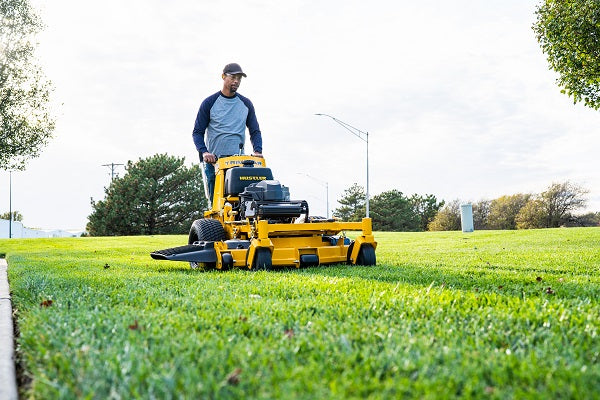

A Walk-Behind with Maximum Stability, Ease-Of-Control.
The Hustler TrimStar® 36" is a perfect addition to any commercial mower fleet. It makes access to hard-to-reach spots easy and is designed to help reduce operator fatigue.
- Ergo-Designed Controls: H-Bar® steering is the easiest-to-use walk-behind system in the industry, reducing operator fatigue.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Fuel Capacity: 3.4 US gallon fuel capacity.
- Deck Lift: Easy-to-operate deck lift makes deck height adjustment a breeze.
- Service-Friendly Design: Designed to make maintenance and service simple and easy.
- Large Drive Tires: 20” drive tires
- Welded Steel Deck: Durable 10 ga. plus 11ga. reinforced steel with 11 ga. formed channel rolled edge.
- Duel Hydro System: Heavy-duty traction and performance.
-
H-Bar® Steering: Patented steering is the easiest-to-use walk-behind system in the field, reducing operator fatigue.
Hustler Turf Accessory Compatibility Chart |
|
Hustler TrimStar Accessories |
|
| Side Mesh Catcher 3 Bushel | 939678 |
| Side Steel Catcher 4.4 Bushel | 606045 |
|
Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) |
GCGR34Z |
| Mulching Kit 36" |
125797 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FS541 |
| Engine Horsepower | 15 |
| Displacement | 603cc |
| Cooling | Air Cooled |
| Air Cleaner |
Oval canister, dual element |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear ZT-2800® |
| Reservoir Capacity | 2 qts per side |
| Hydraulic Cooling | Pump mounted fan |
| Fuel Capacity | 3.4 gal. |
| Ground Speed (Fwd) | Up to 6.3 mph |
| Parking Brake |
Internal transmission mechanical brake
|
Deck |
|
| Cutting Width | 36" |
| Cutting Height | 1.5" to 4.5" |
| Deck Depth | 5" |
| Deck Lift | Hand Operated |
| Number of Blades | 2 |
| Blade Length | 17.86" |
| Blade Tip Speed | 18,400 |
| Spindles | Aluminum with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
7ga + 7ga reinforced steel
|
| Spindle Mounts | Reinforced 11 ga. |
| Impact Trim Area | 11ga formed channel rolled edge |
Construction |
|
| Frame | 1.5" X 2" steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 3/8" steel |
Dimensions |
|
|
Front Tire (Inches) |
11 x 4.5 Run Flats |
| Drive Tire (Inches) | 20 x 6.5-10 |
| Weight (lbs) | 560 |
| Height (Inches) | 42.5 |
| Length (Inches) | 76.7 |
| Width w/ Chute Up (Inches) | 37 |
| Tire-to-Tire Width (Inches) | 35 |
| Productivity (Acres Per Hour) | 1.88 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | Side Catcher |
| Powered / Non-Powered | Non-powered |
| Catcher Capacity | 3.5 bushel |
| Mower Length w/ Catcher | 74.55" |
| Mower Width w/ Catcher | 56.7" |
If you have any questions about this Hustler TrimStar 36” mower for sale, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
