Warranty
- 3 Year Limited (No hour limit)
- 3 Year Limited Engine
|
Chopper Features.

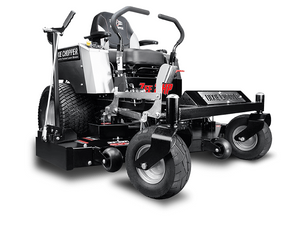

The Dixie Chopper Zee 2 HP 48" redefines what to expect from a residential mower. Packed with upgraded features including a bigger engine, commercial-grade transmissions, Operator Controlled Discharge Chute (OCDC), and a super plush seat, the Zee 2 HP delivers incredible value to the customer.
-

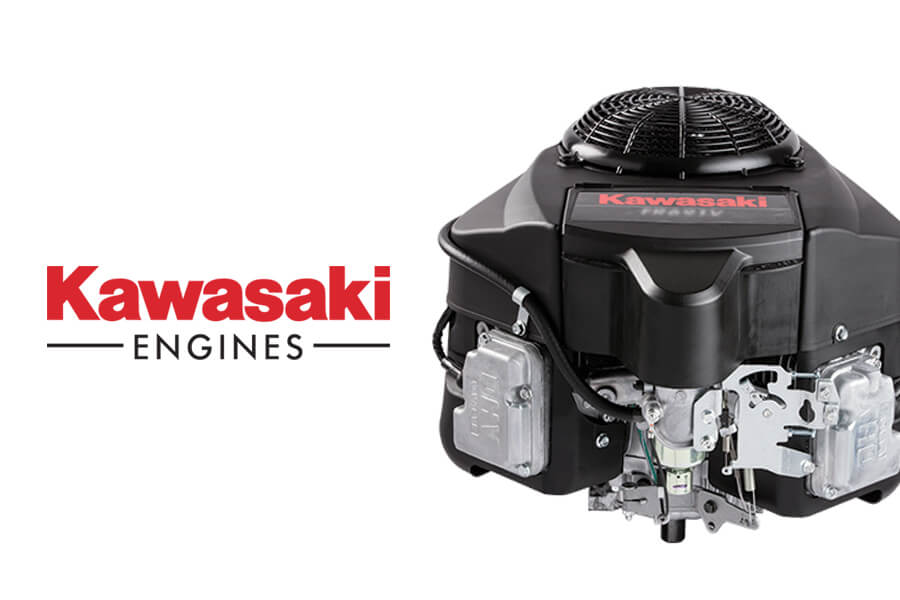

High Horsepower – A 24 horsepower engine from Kawasaki® for proven power to tackle through thick grass up to 3.1 acres per hour.
-
Full Clipping Control – The OCDC comes standard to give you full control of your clippings. Keep grass out of the driveway, flower bed, and more.
-

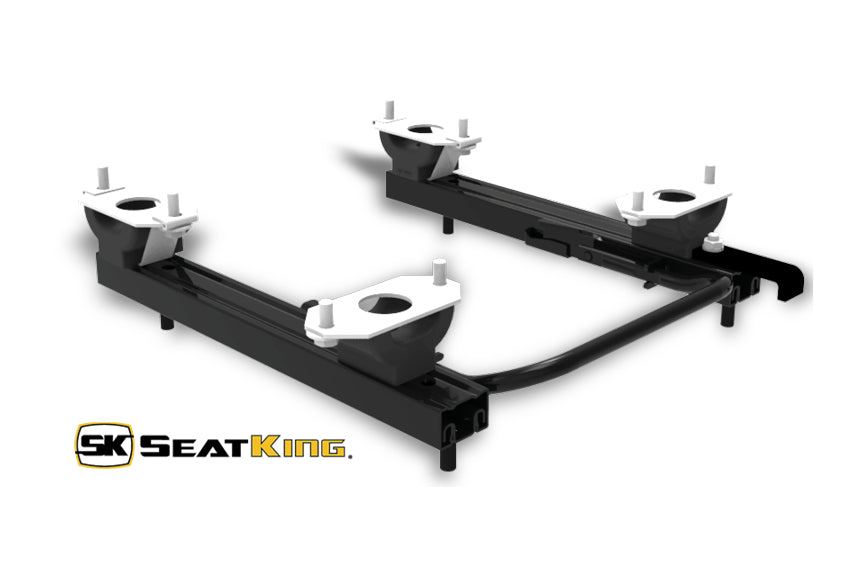

Superior Comfort – A super plush seat with ISO mounts give the operator extra comfort for extended mowing.
-

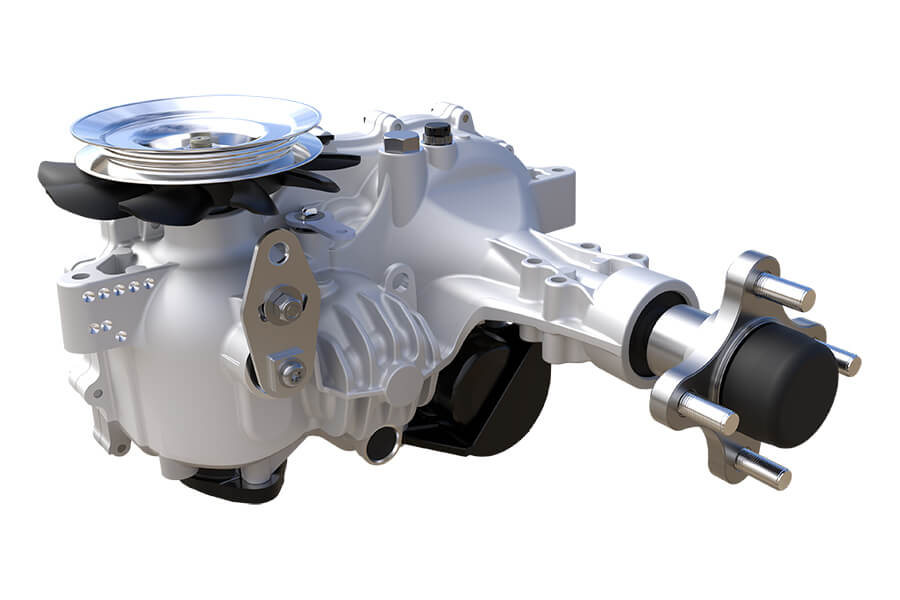

Hydro-Gear® Drivetrain – ZT-3100 commercial-grade transaxles offer steel-cut gears, charge pumps, and shock valves for extended drivetrain performance.
-
Large Drive Tires – Easily grip hillsides with large 22" drive tires. Larger tires provides more speed, stability, and traction when you need it.
-

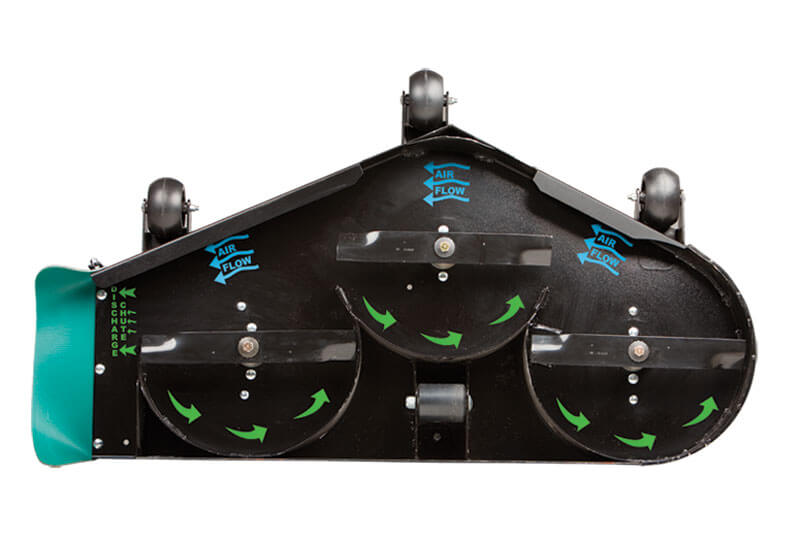

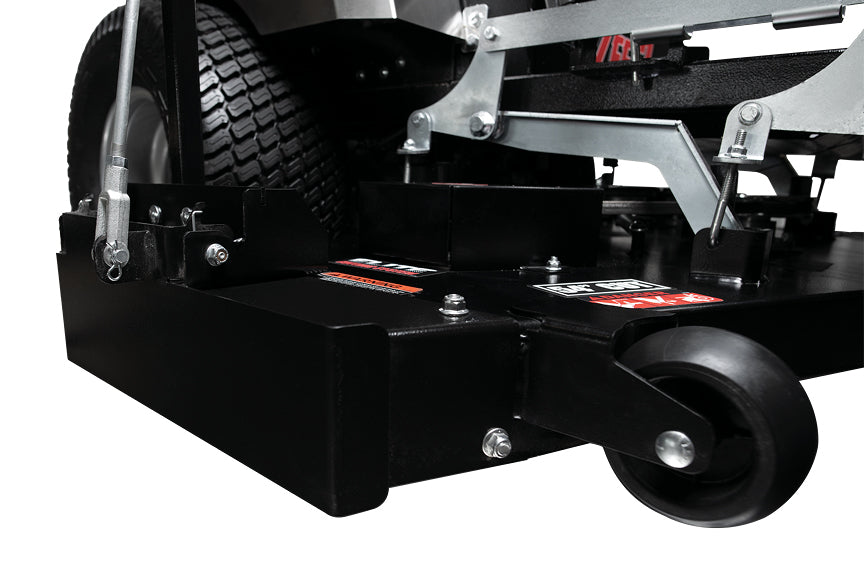

Elite Cutting System – Offered in two cutting widths (48"and 54"), the Elite Deck easily cuts large volumes of grass and provides an attractive after-cut appearance.
-
3 Year Bumper-to-Bumper Warranty*: *unlimited hour limited residential warranty
Dixie Chopper Accessory Compatibility Chart
|
Dixie Chopper Zee 2 HP Accessories
|
Striping Kit |
902773 |
Mulch Kit 54" |
903012
|
High-Lift Blade 54" |
301069
|
Eliminator Blade 54" |
301069E
|
Roll Over Protection Structure (ROPS) |
902676 |
Bagger (Accelerator) |
903031 |
White Soft-Top Sunshade (w/ out ROPS) |
902752 |
Run-Flat M/C Tire (Assembly) |
402065 |
Run-Flat Rib Tire (Assembly) |
402091 |
Light Kit |
903416 |
___________________________________________
Specifications:
Engine
|
Manufacturer |
Kawasaki FR
|
Horsepower |
24 hp |
Displacement |
726cc
|
Air-cleaner |
2-stage
|
Cooling |
Air-cooled
|
Starter |
Electric
|
Engine warranty |
3-Year
|
Drive System
|
Dual hydrostatic |
Hydro-Gear® ZT-3100 transaxles (internal expansion tank) |
Ground speed
|
8 mph |
Parking brake |
Integrated in transaxle |
Towing capacity |
100 lbs |
Mower Deck
|
Deck Size |
54"
|
Acres/hour |
3.4
|
Cutting height |
1.5" - 4.5" |
Deck height adjustments |
Manual lift, 1/2" increments |
Deck Quick-Lift |
Integrated |
Deck engagement |
Ogura® 87 ft-lbs |
Construction |
10 ga formed & welded |
Blades |
3 - 19.25" x 2.5" |
Blade Tip Speed |
18,500 fpm |
Spindles |
.75" effective diameter machined shaft |
Spindle Housings |
1pc keyless sealed cast aluminum |
Anti-scalp rollers |
4 |
Pulleys |
Vented split 3/16" steel deep groove |
General
|
Battery |
12 Volt, 300cca |
Digital display |
hour meter |
Fuel capacity |
4 gallons |
Rear tires |
22 x 11-10 |
Front tires |
13 x 6.5-6 |
Frame |
Welded 1" x 2", 2" x 2" tube, 10 ga formed |
Fenders |
Stainless steel |
Floor-pan |
Removable, steel |
Seat |
20" padded seat w/ armrests, ISO 360 Mount |
Dimensions
|
Overall height |
47" |
Overall width (chute down) |
59"
|
Overall width (chute up) |
63.25"
|
Overall length |
76"
|
Weight |
788 lbs
|
If you have any questions about this Dixie Chopper 54-inch zero-turn mower give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
